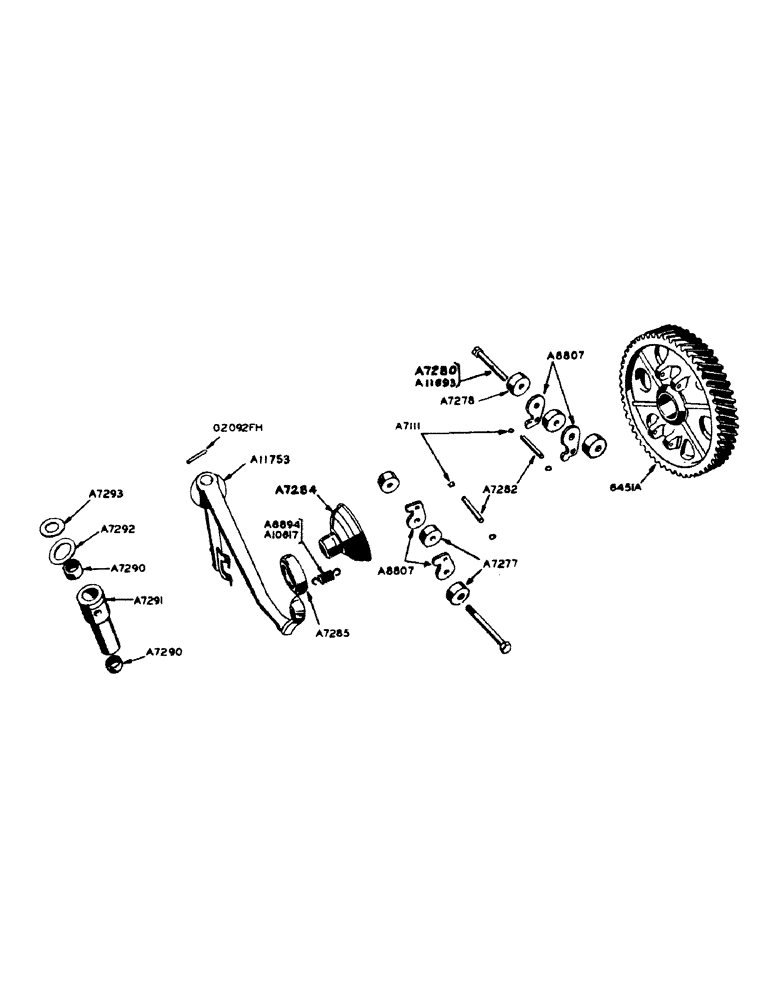

Запчасти Case IH 700 (019) - POWRDYNE GAS ENGINE, GOVERNOR (02) - ENGINE

A7111

SNAP RING,#25, Ext

RING, snap, , governor weight pin #25, Ext

4шт.

A7277

WEIGHT

governor (2 used on 700 models) (2 used on 800 models prior to serial no. 8122783 and 6 used serial no. 8122783 and after)

6шт.

A7278

WEIGHT, governor (all 700 models and 800 models prior to serial no. 8122783)

4шт.

A7280

BOLT, governor weight (all models and 800 models prior to serial no. 8122783)

2шт.

NSS

NOT SOLD SEPARAT

5/16" N.F. hex castellated nut

2шт.

NSS

NOT SOLD SEPARAT

1/16" x 1/2" cotter pin

2шт.

A7282

PIN,6.31mm OD x 47.63mm L

governor weight, less snap rings

2шт.

A7284

SLEEVE, governor

1шт.

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING, thrust, governor (aetna #10 or nice #7043)

1шт.

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING, needle, governor lever shaft (torrington no. B-98)

2шт.

A7291

SLEEVE, governor lever shaft bearing

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

1шт.

A7292

SEAL

governor lever hub

1шт.

A7293

WASHER

governor lever bearing

1шт.

A8349

ARBOR, for pressing in A7290 governor lever shaft needle bearings

1шт.

A8807

FINGERS, set of (4), for governor weight

1шт.

A11693

BOLT, governor weight (800 models serial no. 8122783 and after)

2шт.

NSS

NOT SOLD SEPARAT

5/16" (NF) castellated nut

2шт.

NSS

NOT SOLD SEPARAT

1/16" x 1/2" cotter pin

2шт.

A11753

SHAFT, governor, with lever and finger

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

1шт.

6451A

X

GEAR, camshaft

1шт.

NSS

NOT SOLD SEPARAT

No. 18 Woodruff key

1шт.

O2092FH

X

ROLL PIN (3/16" x 1"), for A11753 shaft

1шт.
