Запчасти Case IH 700 (017) - POWRDYNE GAS ENGINE, AIR CLEANERS, AIR CLEANER FOR ALL BUT ORCHARD TRACTORS (02) - ENGINE

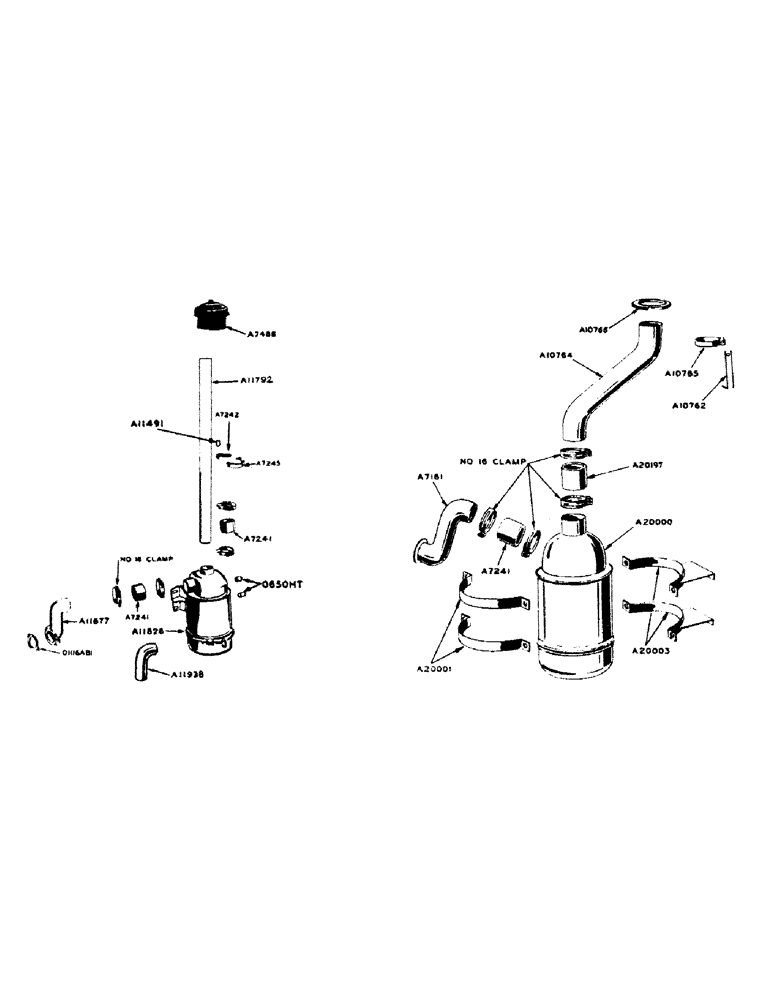

Схема запчастей Case IH 700 - (017) - POWRDYNE GAS ENGINE, AIR CLEANERS, AIR CLEANER FOR ALL BUT ORCHARD TRACTORS (02) - ENGINE

Артикул

Название

Примечание

Количество

A7241

HOSE, air cleaner (2 use on gas tractor, 1 used on LP-gas tractor) (see A11938)

2шт.

NSS

NOT SOLD SEPARAT

No. 16 hose clamps (2-5/8" O.D. hose)

4шт.

A7242

SUPPORT, air intake pipe

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.C. carr. bolt w/hex nut

1шт.

NSS

NOT SOLD SEPARAT

5/16" shakeproof ext.-int. tooth lockwasher #4018-24

1шт.

A7245

STRAP, air intake pipe with T-bolt

1шт.

NSS

NOT SOLD SEPARAT

1/4" WING NUT, zinc plated

1шт.

A7486

X

PRE-SCREENER, air intake

1шт.

A11491

SPACER, air intake pipe

2шт.

A11677

ELBOW, air cleaner (gasoline) (see A11937)

1шт.

A11792

PIPE, intake

1шт.

A11826

AIR CLEANER, (7")

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" N.C. hex hd. cap screw

4шт.

NSS

NOT SOLD SEPARAT

3/8" shakeproof ext.-int. lockwasher #4020-26

4шт.

A11937

ELBOW, air cleaner (for LP-gas tractors) (see A11677)

1шт.

A11938

HOSE, air cleaner to carburetor (LP-gas) (see A7241)

1шт.

NSS

NOT SOLD SEPARAT

#16 HOSE CLAMP

2шт.

O1116AB1

X

GASKET, carburetor to air cleaner elbow (gasoline)

1шт.

O650HT

X

SPACER, air cleaner bracket to motor block

4шт.

A7161

ELBOW

air cleaner, for Orchard tractors

1шт.

A7241

HOSE, air cleaner, for Orchard tractors

1шт.

NSS

NOT SOLD SEPARAT

No. 16 hose clamps (2-5/8" O.D. hose), air cleaner for Orchard tractors

2шт.

A10762

SUPPORT, air cleaner pipe clamp, for Orchard tractors

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 7/8" N.F. hex bolt w/hex nut and lockwasher, air cleaner for Orchard tractors

1шт.

A10764

PIPE, intake, air cleaner for Orchard tractors

1шт.

A10765

CLAMP, air cleaner pipe, for Orchard tractors

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/4" N.F. hex bolt w/hex nut and lockwasher, air cleaner for Orchard tractors

1шт.

A10766

BODY

WASHER, air intake pipe, rubber, cleaner, for Orchard tractors

1шт.

A20000

AIR CLEANER, 7", for Orchard tractors

1шт.

A20001

CLAMP, air cleaner, for Orchard tractors

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.F. hex bolt w/hex nut and lockwasher, air cleaner for Orchard tractors

4шт.

A20003

BRACKET, air cleaner clamp, for Orchard tractors

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" N.C. hex bolt w/lockwasher, air cleaner for Orchard tractors

4шт.

A20197

HOSE ASSY.

HOSE, air cleaner to intake pipe, for Orchard tractors

1шт.

NSS

NOT SOLD SEPARAT

No. 16 hose clamps, air cleaner for Orchard tractors

2шт.

Выбрано товаров: 35
