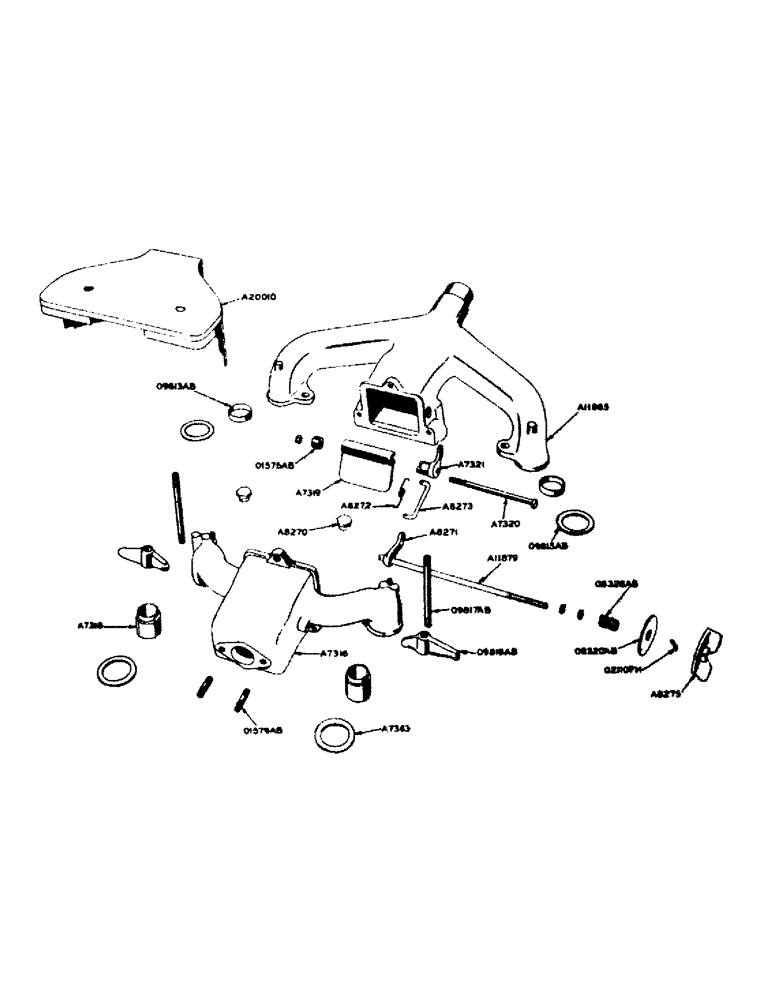

Запчасти Case IH 700 (015) - POWRDYNE GAS ENGINE, LOW COST FUEL MANIFOLD - "700" SERIES (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A7316
MANIFOLD, intake
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 7/8" N.C. hex bolt
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 2-1/4" N.C. hex bolt
2шт.
NSS
NOT SOLD SEPARAT
1/8" sq. hd. pipe plug
2шт.
A7318
VENTURI, intake manifold
2шт.
A7319
VALVE, heat regulator
1шт.
A7320
BOLT, heat regulator valve
1шт.
NSS
NOT SOLD SEPARAT
3/8" N.C. hex slotted nut
1шт.
NSS
NOT SOLD SEPARAT
3/32" x 7/8" cotter pin
1шт.
A7321
LEVER, heat regulator
1шт.
A7363
MANIFOLD GASKET
intake manifold
2шт.
A8270
NUT, intake and exhaust manifold stud (7/16" N.F. thrd.)
2шт.
A8271
LEVER, heat regulator control, lower
1шт.
NSS
NOT SOLD SEPARAT
1/4" N.C. hex jam nut
1шт.
NSS
NOT SOLD SEPARAT
1/4" x 1/2" N.C. sq. hd. cup pt. set screw
1шт.
A8272
SPRING, heat regulator control lever
1шт.
A8273
LINK, heat regulator control lever
1шт.
NSS
NOT SOLD SEPARAT
3/32" x 5/8" cotter pin
2шт.
NSS
NOT SOLD SEPARAT
1/4" plain washer
2шт.
A8275
DIAL, heat regulator
1шт.
A11865
MANIFOLD, exhaust
1шт.
A11878
SUPPORT, instrument panel (left) and hand heat dial
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 3/4" N.C. truss hd. mach. screw w/hex. nut
2шт.
NSS
NOT SOLD SEPARAT
3/8" shakeproof ext. tooth lockwasher #1120-11
1шт.
NSS
NOT SOLD SEPARAT
3/8" shakeproof ext.-int. tooth lockwasher #4020-26
2шт.
A11879
ROD, heat regulator
1шт.
NSS
NOT SOLD SEPARAT
3/8" N.F. hex jam nut
2шт.
A20010
COVER
manifold
1шт.
O1575AB
SPACER, heat regulator vlave
1шт.
O1579AB
STUD, Serial Range: carburetor-manifold
1шт.
O6320AB
X
DISC, friction, heat regulator dial
1шт.
O6326AB
X
SPRING, heat regulator control
1шт.
O9813AB
X
FERRULE, exhaust manifold
4шт.
O9815AB
X
GASKET, exhaust manifold
4шт.
O9816AB
CLAMP, intake and exhaust manifold
4шт.
O9817AB
X
STUD, intake and exhaust manifold
4шт.
NSS
NOT SOLD SEPARAT
7/16" N.F. hex jam nut
2шт.
O2110FH
X
ROLL PIN, heat regulator dial (3/16" x 3/4")
1шт.
Выбрано товаров: 38
