Запчасти Case IH 700 (012) - POWRDYNE GAS ENGINE, OIL PUMP AND TACHOMETER DRIVE (02) - ENGINE

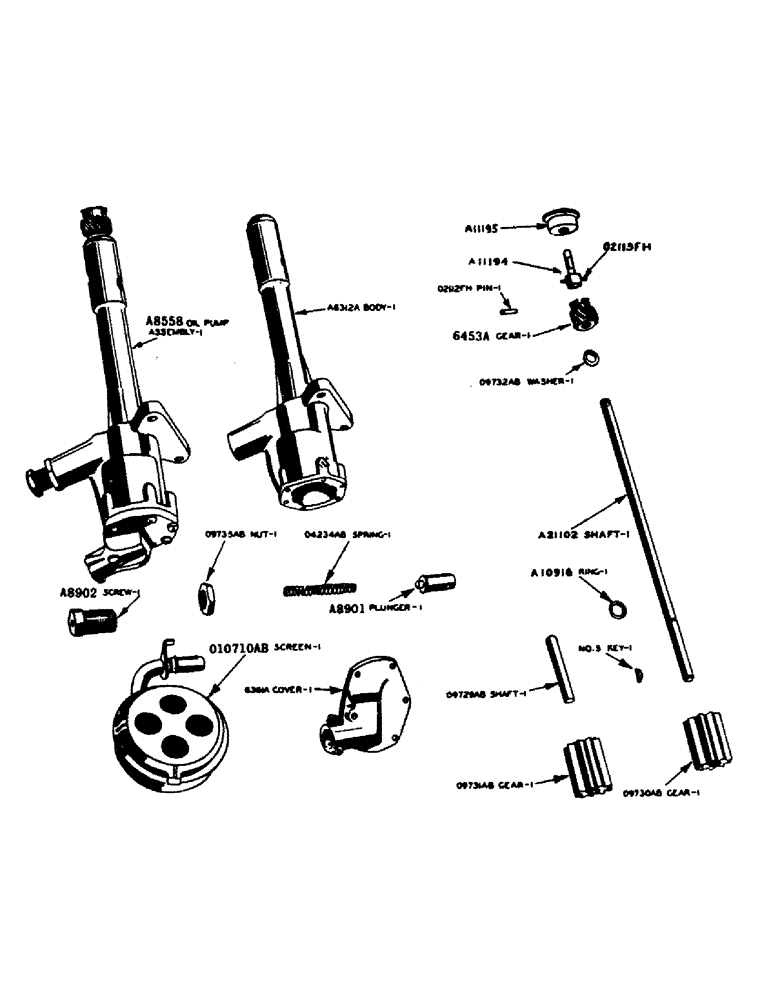

Схема запчастей Case IH 700 - (012) - POWRDYNE GAS ENGINE, OIL PUMP AND TACHOMETER DRIVE (02) - ENGINE

Артикул

Название

Примечание

Количество

A8558

PUMP, ENGINE OIL

PUMP, oil, assembly, less screen

1шт.

A8901

X

PLUNGER, oil pump relief

1шт.

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW, adjusting, oil pump relief

1шт.

A10916

RING, SNAP

SNAP RING, oil pump drive shaft

1шт.

A21102

SHAFT

drive, oil pump

1шт.

A6312A

BODY, oil pump

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex bolt w/lockwasher

2шт.

6361A

COVER, oil pump body

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.C. rhd. mach. screw w/lockwasher

5шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" N.C. rhd. mach. screw w/lockwasher

1шт.

6453A

X

GEAR, oil pump drive, also drives distributor

1шт.

O4234AB

X

SPRING, oil pump relief plunger

1шт.

O9729AB

SHAFT, stub, oil pump

1шт.

O9730AB

X

GEAR, oil pump with keyway

1шт.

NSS

NOT SOLD SEPARAT

No. 5 Woodruff key

1шт.

O9731AB

X

GEAR, oil pump, without keyway

1шт.

O9732AB

X

WASHER, thrust, oil pump drive gear

1шт.

O9735AB

NUT, oil pump relief adjusting screw

1шт.

O10710AB

SCREEN, oil pump, float-o type

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 1-1/2" cotter pin

1шт.

O2112FH

X

ROLL PIN, oil pump drive gear (3/16" x 7/8")

1шт.

A11194

X

ADAPTER, tachometer drive

1шт.

A11195

PLUG

adapter, tachometer drive

1шт.

O2113FH

X

ROLL PIN, 3/32" x 7/8", tachometer drive

1шт.

Выбрано товаров: 24
