(097) - HOOD FOR ORCHARD MODELS

Запчасти Case IH 700 (097) - HOOD FOR ORCHARD MODELS (09) - CHASSIS

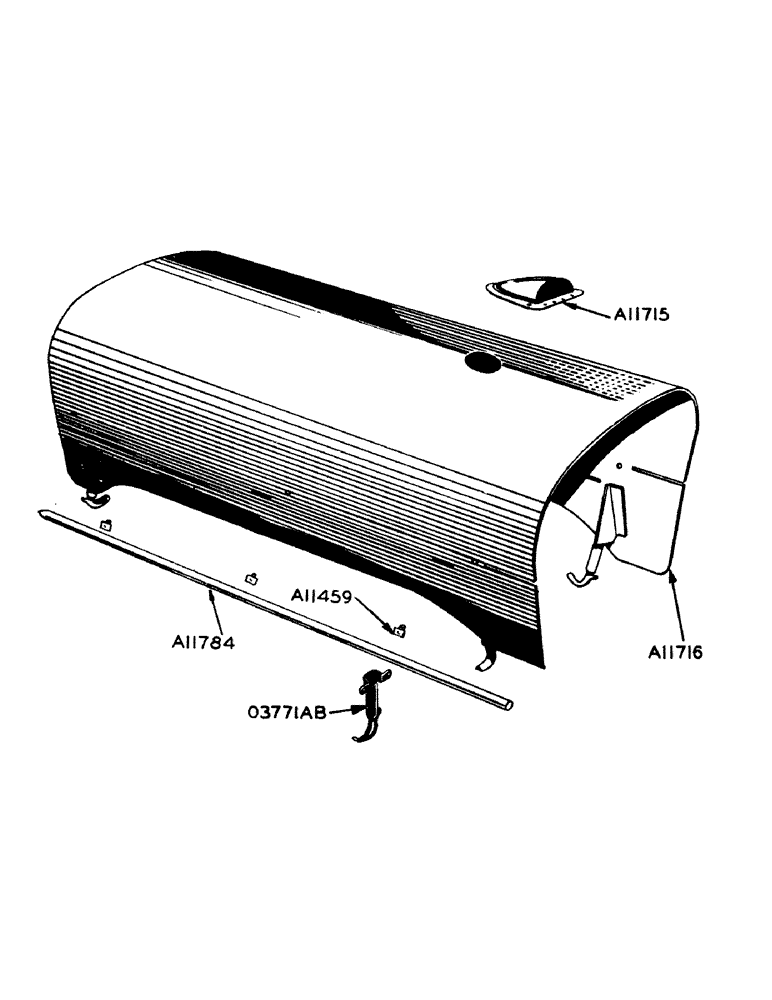

Схема запчастей Case IH 700 - (097) - HOOD FOR ORCHARD MODELS (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A7005

CUSHION, hood anti-squeak

2шт.

A11459

BOLT

retainer, trim molding (side of hood)

6шт.

NSS

NOT SOLD SEPARAT

#10-32 mach. screw nut w/Shakeproof ext.-int. lockwasher (zinc plated)

6шт.

A11715

INTAKE, air, hood

1шт.

NSS

NOT SOLD SEPARAT

#10 x 1/4" Self tapping sheet metal screws

3шт.

A11716

HOOD

1шт.

A11784

MOLDING, trim (side of hood)

2шт.

O3771AB

X

CATCH, hood

4шт.

NSS

NOT SOLD SEPARAT

3/16" x 1/2" W.B. hd. rivet

8шт.
