Запчасти Case IH 700 (197) - HYDRAULIC CONTROL UNIT, 4025AA BREAK-AWAY SELF-SEALING COUPLING MALE (08) - HYDRAULICS

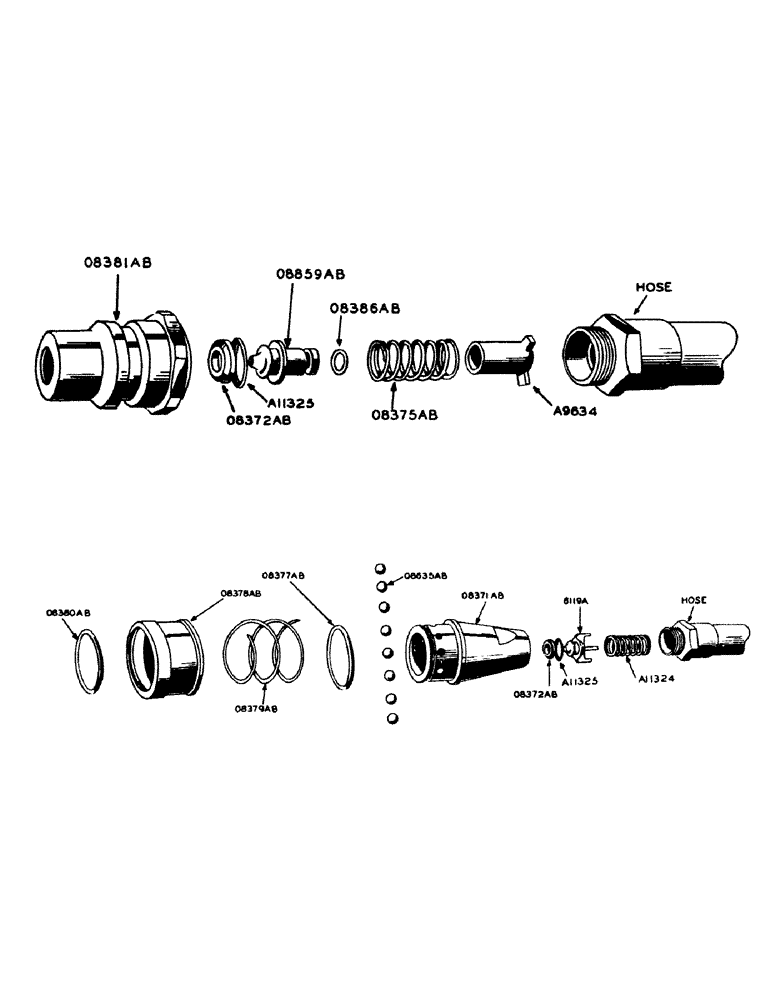

Схема запчастей Case IH 700 - (197) - HYDRAULIC CONTROL UNIT, 4025AA BREAK-AWAY SELF-SEALING COUPLING MALE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

51200858

SLEEVE

coupling plug piston

1шт.

A11325

X

RETAINER, seal

1шт.

4025AA

X

PLUG, break-away self sealing, assembly

2шт.

O8372AB

X

SEAL, piston

1шт.

O8375AB

X

SPRING, piston

1шт.

O8381AB

X

BODY, male plug coupling

1шт.

O8386AB

X

"O"RING, piston sleeve

1шт.

O8859AB

X

PISTON, coupling plug

1шт.

A11324

SPRING

coupling piston, 4026AA break-away self-sealing, female

1шт.

A11325

X

RETAINER, seal, 4026AA break-away self-sealing coupling female

1шт.

6119A

X

PISTON, socket, 4026AA break-away self-sealing coupling female

1шт.

4026AA

X

SOCKET, break-away self sealing coupling assembly, 4026AA, female

4шт.

O8371AB

BODY, female coupling socket, 4026AA break-away self-sealing

1шт.

O8372AB

X

SEAL, piston, 4026AA break-away self-sealing coupling female

1шт.

O8377AB

X

"O"RING, socket body, 4026AA break-away self-sealing coupling female

1шт.

O8378AB

X

SLEEVE, ball retaining, 4026AA break-away self-sealing coupling female

1шт.

O8379AB

X

SPRING, ball retaining sleeve, 4026AA break-away self-sealing coupling female

1шт.

O8380AB

X

SNAP RING, socket rubber, 4026AA break-away self-sealing coupling female

1шт.

O8635AB

X

BALL, socket locking, 4026AA break-away self-sealing coupling female

8шт.

Выбрано товаров: 19
