Запчасти Case IH 700 (196) - B3785AA PORTABLE CYLINDER, 3-1/4" X 8" (08) - HYDRAULICS

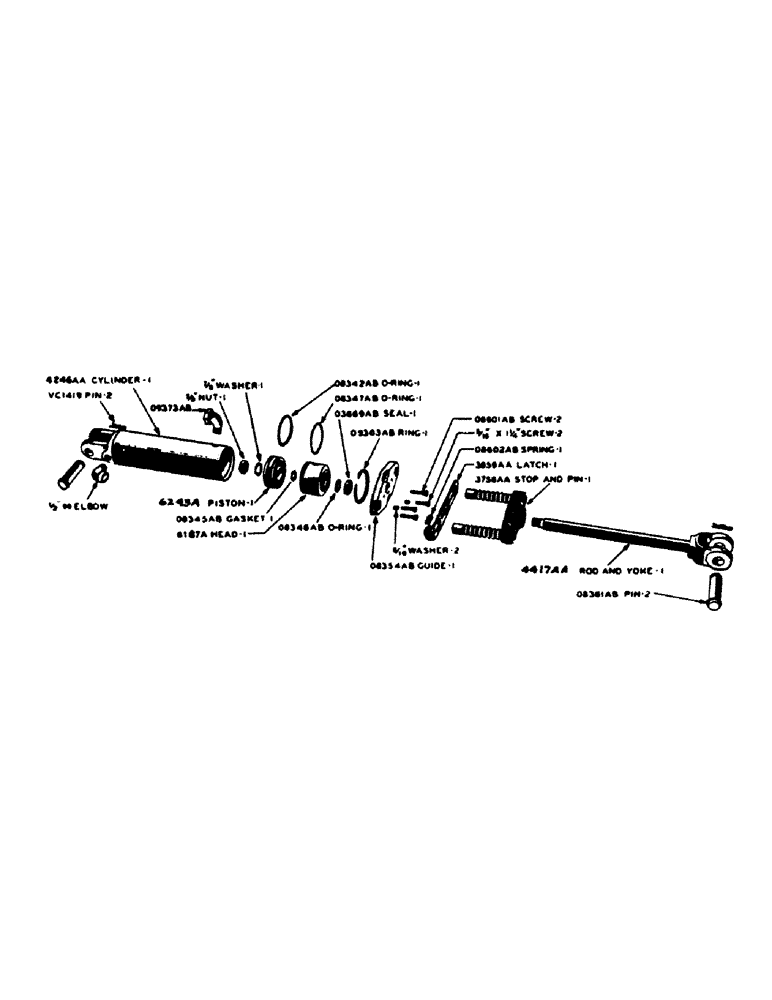

Схема запчастей Case IH 700 - (196) - B3785AA PORTABLE CYLINDER, 3-1/4" X 8" (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

6044A

HEAD (use 4246AA)

1шт.

6187A

HEAD, hydraulic cylinder, inner

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

6243A

PISTON, hydraulic cylinder

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

3756AA

STOP AND PIN, hydraulic cylinder limit

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

B3785AA

CYLINDER, 3-1/4" x 8" hydraulic portable, Consists of items marked

1шт.

3859AA

X

LATCH, limit stop

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

4246AA

CYLINDER AND HEAD, hydraulic portable

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

NSS

NOT SOLD SEPARAT

1/2" - 90 deg. street elbow

1шт.

4417AA

ROD AND YOKE, hydraulic cylinder piston

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

NSS

NOT SOLD SEPARAT

7/8" N.F. hex light nut

1шт.

NSS

NOT SOLD SEPARAT

7/8" shakeproof lockwasher type 12 #1234

1шт.

O3869AB

X

OIL SEAL, piston rod

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

O8342AB

X

"O"RING, piston

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

O8345AB

X

GASKET, piston rod

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

O8346AB

X

"O"RING, piston rod

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

O8347AB

X

"O"RING, hydraulic cylinder

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

O8354AB

GUIDE, limit stop pin

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" N.C. hex bolt w/lockwasher

2шт.

O8361AB

X

PIN, hydraulic cylinder yoke end

2шт.

O8601AB

X

SCREW, stop latch

2шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

NSS

NOT SOLD SEPARAT

5/16" shakeproof lockwasher #1218-4

2шт.

O8602AB

X

SPRING, limit stop latch

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

O9303AB

X

SNAP RING, cylinder head

1шт.

Part of 3-1/4" x 8" hydraulic portable cylinder P/N B3785AA

1шт.

O9373AB

ELBOW, 90 deg. swivel

1шт.

VC1419

X

COTTER, hair pin, for O8361AB yoke pin

2шт.

A7784

HOSE ASSY.

HOSE, hydraulic, 4026AA coupling to upper valve (1/2" I.D. x 12-3/4" long), for portable cylinder

2шт.

A8204

HOSE, coupling to portable cylinder (1/2" I.D. x 57-5/8" long) (special), hydraulic

2шт.

A8205

HOSE, coupling to portable cylinder (1/2" I.D. x 93-5/8" long) (special), hydraulic

2шт.

A20816

HOSE

coupling to portable cylinder, front (1/2" I.D. x 106" long), hydraulic

1шт.

A20817

HOSE

coupling to portable cylinder, rear (1/2" I.D. x 118" long), hydraulic

1шт.

O8681AB

X

CLAMP, hose, for portable hydraulic cylinder

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.F. hex bolt w/hex nut and lockwasher, hoses for portable hydraulic cylinder

1шт.

Выбрано товаров: 47
