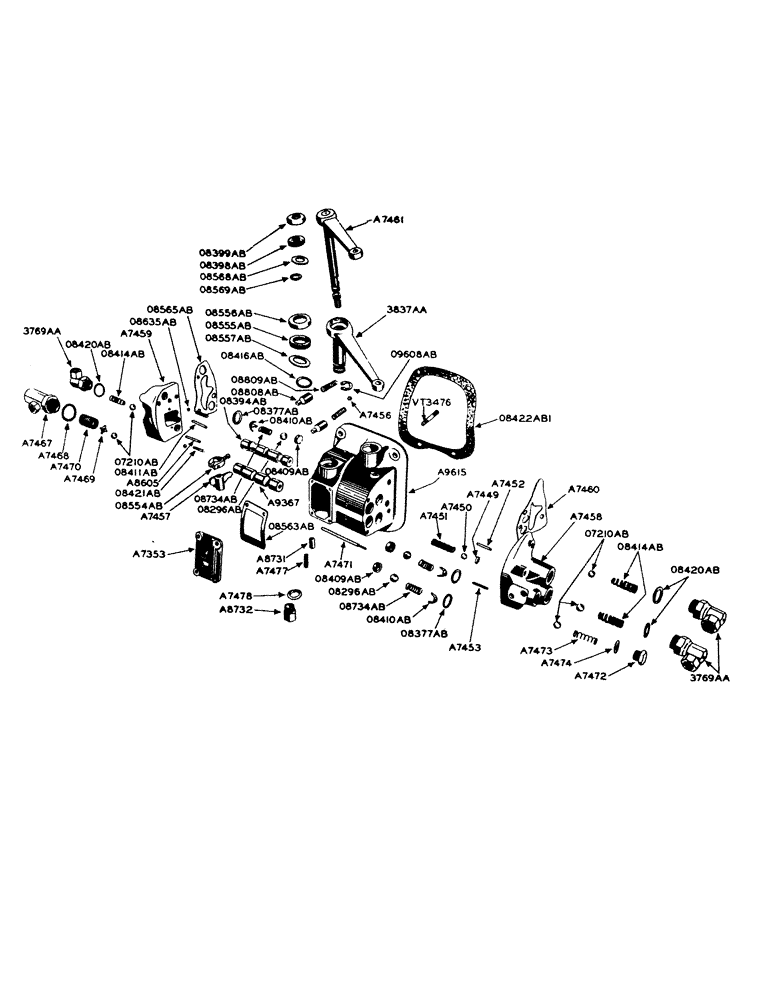

Запчасти Case IH 700 (190) - HYDRAULIC FLOAT VALVE AND PUMP ASSEMBLY, FOR TRACTORS WITH EAGLE HITCH (08) - HYDRAULICS

A7353

CAP

hydraulic valve body

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.C. rhd. mach. screw w/lockwasher

3шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" N.C. flat hd. mach. screw w/lockwasher

1шт.

A7449

SEAT, down pressure valve ball

1шт.

A7450

X

BALL, down pressure check (7/16" dia.)

1шт.

A7451

SPRING, down pressure valve

1шт.

A7452

SPOOL

auxiliary, upper R.H.

1шт.

A7453

SPOOL

auxiliary, lower R.H.

1шт.

A7456

X

BALL, spool shifter inner shaft end thrust

1шт.

A7457

ARM

lower, spool shifter (see 08554AB)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" N.F. fillister hd. mach. screw w/lockwasher

1шт.

A7458

HEAD, hydraulic valve, R.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/4" N.C. hex bolt w/lockwasher

3шт.

NSS

NOT SOLD SEPARAT

1/8" hex socket hd. pipe plug

2шт.

A7459

HEAD, hydraulic valve, L.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-3/4" N.C. hex bolt w/lockwasher

4шт.

A7460

GASKET

valve head, R.H.

1шт.

A7461

X

LEVER AND SHAFT, spool shifter, upper

1шт.

A7467

REGULATOR, cylinder speed

1шт.

A7468

GASKET

GASKET, cylinder speed regulator

1шт.

A7469

GUIDE, lower valve return ball check spring, L.H.

1шт.

A7470

SPRING, lower valve return ball check, L.H.

1шт.

A7471

ROD, float ball check

1шт.

A7472

PLUG, float ball check

1шт.

A7473

SPRING

float ball check

1шт.

A7474

GASKET, float ball check plug

1шт.

A7477

SPRING

float position retaining plunger

1шт.

A7478

GASKET

float position retaining plunger cap

1шт.

A8605

SPOOL, auxiliary, lower L.H.

1шт.

A8731

PLUNGER

hydraulic float position retaining

1шт.

A8732

CAP

for A8731 plunger

1шт.

A9367

SPOOL, hydraulic float valve, lower

1шт.

A9612

SPARE PART

BODY, (use A9615)

1шт.

A9615

SUPPORT

BODY, hydraulic valve (consists of 1 - A9612 body, 4 - 08409AB seats, 1 - 09572AB sleeve and 5 - 1/8" hex socket hd. pipe plugs (does not include relief valve)

1шт.

A10842

Hydraulic float valve and 12 gal. per minute pump assembly, complete (for tractors with Eagle Hitch)

1шт.

3769AA

X

ADAPTER, swivel angle

3шт.

3837AA

X

LEVER AND SHAFT, spool shifter, lower

1шт.

O7210AB

X

BALL, hydraulic valve return (1/2" dia.)

4шт.

O7210AB

X

BALL, hydraulic float (1/2" dia.)

1шт.

O8296AB

X

BALL, valve outlet (5/8" dia.)

4шт.

O8377AB

X

"O" RING, outlet ball check

4шт.

O8394AB

X

SPOOL, hydraulic valve, upper

1шт.

O8398AB

X

WASHER, felt, spool shifter shaft, upper (see 08555AB)

1шт.

O8399AB

X

RETAINER, spool shifter shaft upper felt washer (see 08556AB)

1шт.

O8409AB

X

SEAT, outlet ball check

4шт.

O8410AB

X

GUIDE, outlet ball check spring

4шт.

O8411AB

X

SPOOL, auxiliary, upper L.H.

1шт.

O8414AB

X

SPRING, return ball check

3шт.

O8416AB

X

"O" RING, spool shifter shaft, lower

1шт.

O8420AB

X

GASKET, swivel angle adapter

3шт.

O8421AB

SPRING

relief valve ball

2шт.

O8422AB1

X

GASKET, hydraulic valve body

1шт.

O8554AB

X

ARM, upper, spool shifter (see A7457)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" N.F. fillister hd. mach. screw w/lockwasher

1шт.

O8555AB

X

WASHER, felt, spool shifter shaft, lower (see 08389AB)

1шт.

O8556AB

X

RETAINER, spool shifter shaft lower felt washer (see 08399AB)

1шт.

O8557AB

X

WASHER, spool shifter shaft seal, for 08555AB felt

1шт.

O8563AB

GASKET, body cap

1шт.

O8565AB

X

GASKET, valve head, L.H.

1шт.

O8568AB

X

WASHER, spool shifter seal, for 08398AB felt

1шт.

O8569AB

X

"O" RING, spool shifter shaft upper

1шт.

O8635AB

X

BALL, relief valve (1/4" dia.)

2шт.

O8734AB

X

SPRING, outlet ball check

4шт.

O8808AB

PLUNGER, spool

2шт.

O8809AB

X

SPRING, spool plunger

2шт.

O9608AB

X

"E" RING, retaining, spool shifter inner shaft

1шт.

VT3476

STUD, hydraulic valve body (1/2" x 2")

2шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut and lockwasher

2шт.
