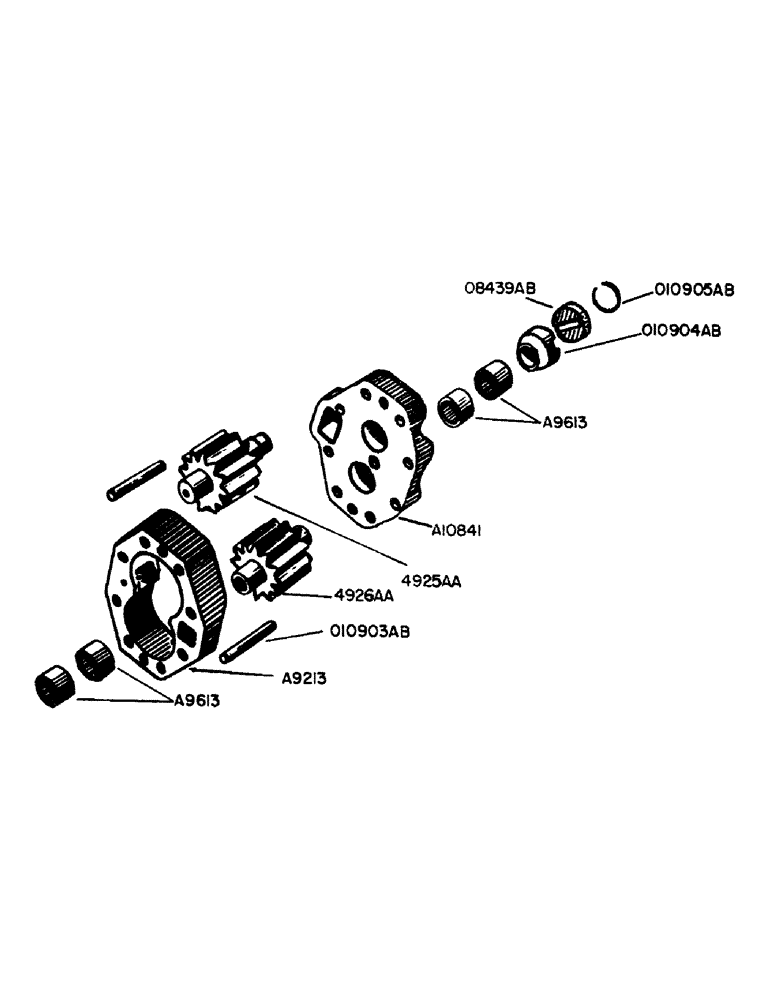

Запчасти Case IH 700 (189) - HYDRAULIC PUMP, 12 GALLON PER MINUTE CAPACITY (08) - HYDRAULICS

A9213

BODY

hydraulic pump

1шт.

A9613

NEEDLE BEARING,0.875" ID x 1.375" OD x 0.75"

BEARING, hydraulic pump shaft (Torrington no. GB-1412X)

4шт.

A10841

COVER

hydraulic pump body

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" N.C. hex bolt w/lockwasher

3шт.

NSS

NOT SOLD SEPARAT

3/8" x 3-1/4" N.C. hex bolt w/lockwasher

5шт.

4925AA

SHAFT

DRIVE GEAR AND SHAFT, hydraulic pump

1шт.

4926AA

SHAFT

IDLER GEAR AND SHAFT, hydraulic pump

1шт.

O8439AB1

X

COUPLING, hydraulic pump drive

1шт.

O10903AB

PIN

dowel, hydraulic pump body

2шт.

O10904AB

X

COUPLING, hydraulic pump drive shaft

1шт.

O10905AB

X

SNAP RING, hydraulic pump drive coupling

1шт.
