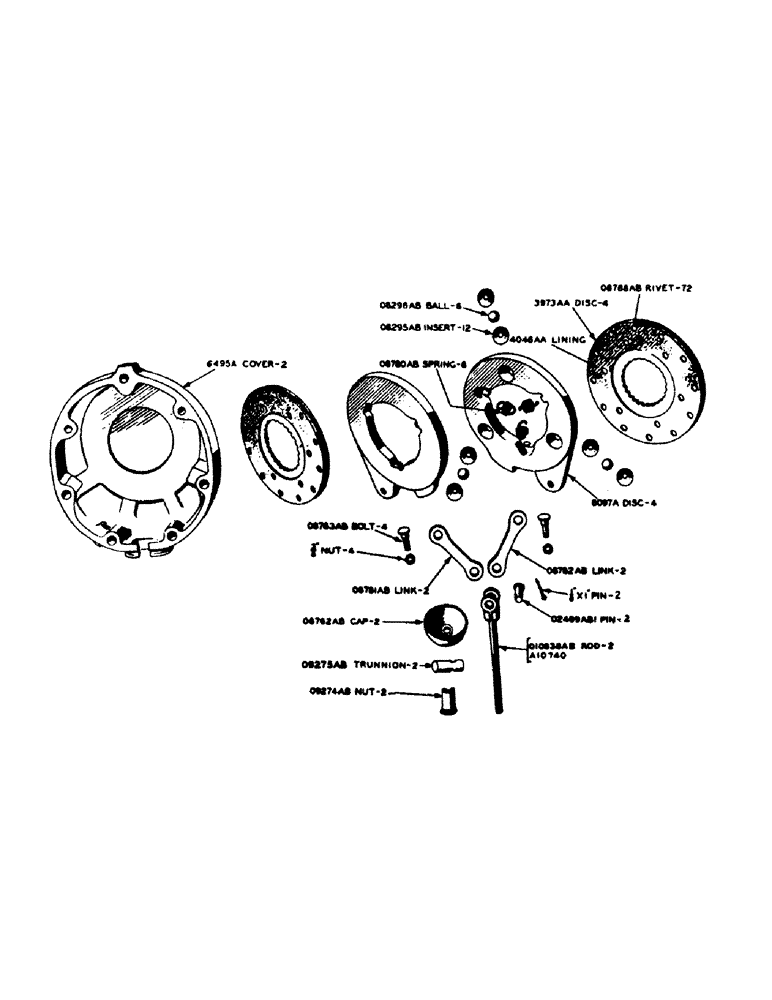

Запчасти Case IH 700 (126) - DIFFERENTIAL BRAKE (07) - BRAKES

A9289

COVER, differential brake (for high clearance tractors) (see 6495A)

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 3-3/4" N.C. hex bolt with lockwasher

8шт.

NSS

NOT SOLD SEPARAT

1/2" x 4-3/4" N.C. hex bolt with lockwasher

6шт.

A10740

ROD, pull differential brake (Orchard models) (see 010838AB)

2шт.

6097A

X

DISC, differential brake actuating

4шт.

6495A

COVER, differential brake (for all but high clearance models) (see A9289)

2шт.

A44712

DISC

middle, with brake lining (Replaces 3973AA)

4шт.

4046AA

X

LININGS, set of two, with 08788AB rivets, for 3973AA disc

4шт.

NSS

NOT SOLD SEPARAT

1/2" x 3-3/4" N.C. hex bolt with lockwasher

8шт.

NSS

NOT SOLD SEPARAT

1/2" x 4-3/4" N.C. hex bolt with lockwasher

6шт.

O2499AB1

X

PIN, for 010838AB and A10740 brake rods

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

2шт.

O8295AB

X

INSERT, for 6097A disc

12шт.

O8296AB

X

BALL, for 6097A actuating disc (5/8" dia.)

6шт.

O8762AB

X

CAP, dust, on brake cover

2шт.

O8780AB

X

SPRING, actuating disc, single

6шт.

O8781AB

X

LINK, actuating disc, single

2шт.

O8782AB

X

LINK, actuating disc, straddle

2шт.

O8783AB

X

BOLT, actuating disc link

4шт.

NSS

NOT SOLD SEPARAT

3/8" N.F. light hex jam nut

4шт.

O8788AB

X

RIVET, differential brake lining

72шт.

O9274AB

X

NUT, brake rod

2шт.

O9275AB

X

TRUNNION, brake rod

2шт.

O10838AB

X

ROD, pull, differential brake (all but Orchard models) (see A10740)

2шт.
