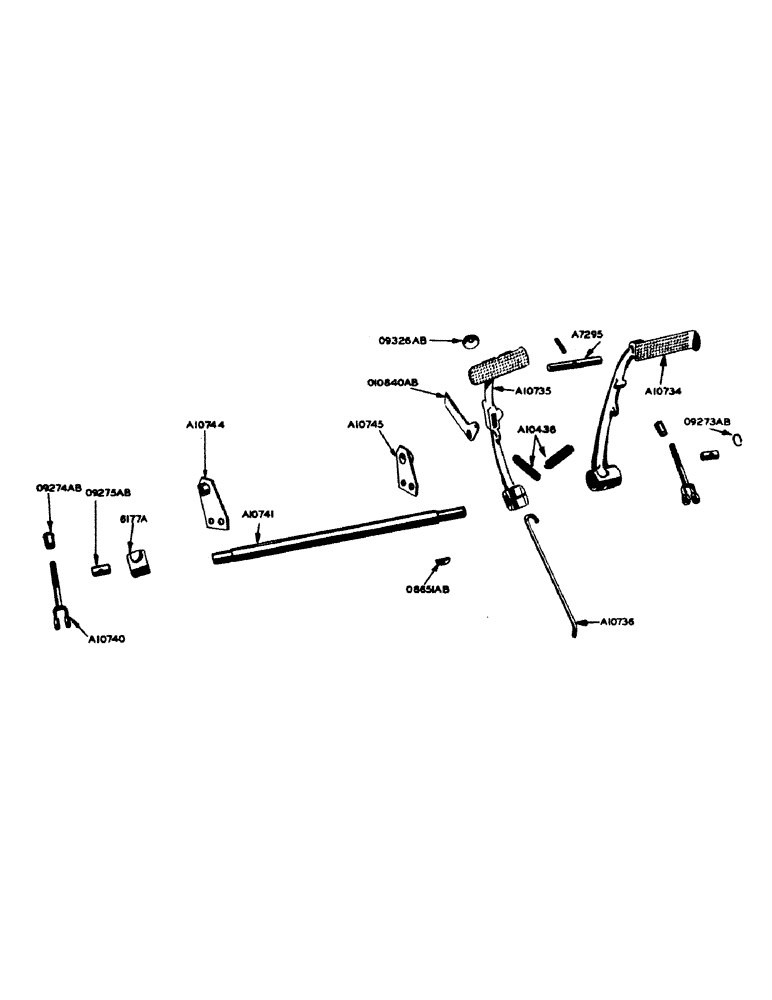

Запчасти Case IH 700 (125) - BRAKE PEDAL AND CROSS SHAFT FOR ORCHARD TRACTORS (07) - BRAKES

A7295

PIN, brake pedal lock

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2" type 1 groove pin

1шт.

A10436

VALVE SPRING

SPRING, brake pedal return

2шт.

A10723

CLIP, brake pedal return spring

1шт.

A10734

PEDAL, brake, R.H.

1шт.

A10735

PEDAL, brake, L.H.

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" N.C. hex bolt w/nut and lockwasher

1шт.

A10736

HANDLE, ratchet control

1шт.

A10739

FULCRUM PIN AND SUPPORT, brake ratchet

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/nut and lockwasher

2шт.

A10740

ROD AND YOKE, brake

2шт.

A10741

SHAFT, brake cross

1шт.

NSS

NOT SOLD SEPARAT

1/8" Str. Lincoln fitting #5000

2шт.

A10744

BEARING AND SUPPORT, cross shaft, R.H.

1шт.

A10745

BEARING AND SUPPORT, cross shaft, L.H.

1шт.

A10746

SCREW, cross shaft bearing support

4шт.

NSS

NOT SOLD SEPARAT

1-1/8" Shakeproof internal lockwasher #1238-00

4шт.

6177A

LEVER, brake cross shaft

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2" N.C. hex bolt w/lockwasher

1шт.

O2499AB1

X

PIN, for A10740 brake rod

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

2шт.

O7144AB

SCREW, brake pedal stop

1шт.

O8651AB

X

KEY, woodruff, cross shaft

1шт.

O9273AB

SNAP RING, cross shaft

2шт.

O9274AB

X

NUT, brake rod

2шт.

O9275AB

X

TRUNNION, brake rod

2шт.

O9326AB

X

PAWL, ratchet

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" N.C. hex bolt w/lockwasher

1шт.

O9327AB

WASHER, cross shaft

2шт.

O10840AB

RATCHET, brake pedal

1шт.
