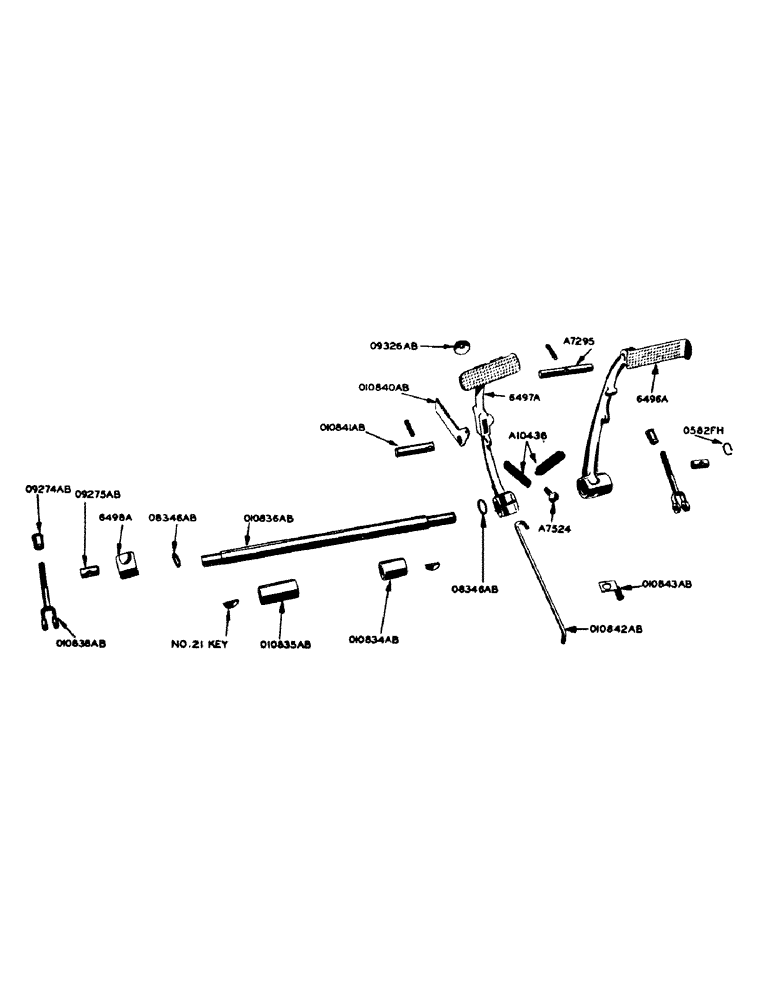

Запчасти Case IH 700 (124) - BRAKE PEDALS AND CROSS SHAFT, FOR ALL BUT ORCHARD MODELS (07) - BRAKES

A7295

PIN, brake pedal lock

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 2" type 1 groove pin

1шт.

A7524

SCREW, brake pedal return spring (in platform)

1шт.

NSS

NOT SOLD SEPARAT

3/8" N.C. hex nut and lockwasher

1шт.

A10436

VALVE SPRING

SPRING, brake pedal return

2шт.

6496A

PEDAL, brake, R.H.

1шт.

6497A

PEDAL, brake, L.H.

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" N.F. hex bolt w/hex nut and lockwasher

1шт.

6498A

LEVER, brake

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" N.C. hex bolt w/lockwasher

1шт.

O8346AB

X

"O" RING, brake cross shaft

2шт.

O9326AB

X

PAWL, brake ratchet

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" N.C. hex bolt w/lockwasher

1шт.

O10834AB

X

SLEEVE, brake cross shaft bearing, R.H.

1шт.

O10835AB

X

SLEEVE, brake cross shaft bearing, L.H.

1шт.

O10836AB

SHAFT, cross, brake pedal

1шт.

NSS

NOT SOLD SEPARAT

1/8" Str. Lincoln fitting no. 5000

1шт.

NSS

NOT SOLD SEPARAT

No. 21 Woodruff key

2шт.

O10840AB

RATCHET, brake pedal

1шт.

O10841AB

PIN, fulcrum, brake pedal ratchet

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" N.C. sq. hd. flat point set screw w/hex jam nut

1шт.

O10842AB

HANDLE, brake pedal ratchet

1шт.

O10843AB

X

CLIP, brake ratchet handle

1шт.

O582FH

X

SNAP RING, brake pedal cross shaft

1шт.
