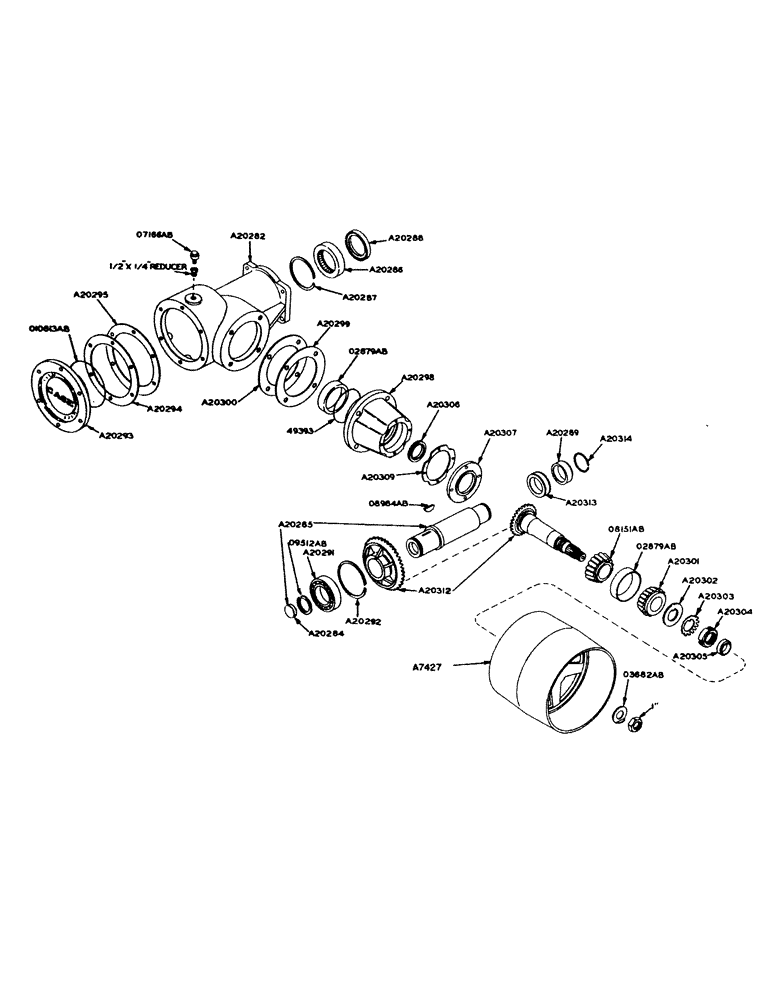

Запчасти Case IH 700 (206) - REAR MOUNTED BELT PULLEY (06) - POWER TRAIN

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

"O" RING, pulley housing (Churubusco no.), For N3 R3 N4 R4 N5 N6 models.

1шт.

A7427

PULLEY, Belt

1шт.

A20282

HOUSING, pulley drive

1шт.

NSS

NOT SOLD SEPARAT

1/8" sq. hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1/4" reducing pipe bushing

1шт.

A20284

X

PLUG, belt pulley drive shaft

1шт.

A20285

SHAFT, belt pulley drive and plug

1шт.

A20286

BEARING, belt pulley drive shaft inner (Hyatt no. 1211-TS)

1шт.

A20287

SNAP RING, drive shaft inner bearing

1шт.

A20288

OIL SEAL, belt pulley drive shaft

1шт.

A20289

COLLAR, belt pulley drive shaft

1шт.

A20291

BALL BEARING,2.3616" ID x 4.3307" OD

BEARING, belt pulley drive shaft, outer (ND #3212)

1шт.

A20292

SNAP RING, drive shaft rear bearing retainer

1шт.

A20293

CARRIER, drive shaft rear bearing

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex bolt w/lockwasher

6шт.

A20294

SHIM, drive shatf bearing carrier (.003")

1шт.

A20295

SHIM, drive shaft bearing carrier (.005")

1шт.

A20297

HOUSING, use A20298

1шт.

A20298

HOUSING, belt pulley shaft (includes 2 - 02879AB cups)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex bolt w/lockwasher

4шт.

A20299

SHIM, belt pulley shaft housing (.003")

1шт.

A20300

SHIM, belt pulley shaft housing (.005")

1шт.

A20301

CUP

CONE, belt pulley shaft outer bearing (Timken No. 3782-4c)

1шт.

A20302

WASHER, thrust, pulley shaft bearing

1шт.

A20303

LOCKWASHER, pulley shaft outer bearing

1шт.

A20304

LOCKNUT, pulley shaft outer bearing

1шт.

A20305

COLLAR, pulley outershaft

1шт.

A20306

OIL SEAL, pulley shaft

1шт.

A20307

CARRIER, belt pulley oil seal

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.C. hex bolt w/lockwasher

4шт.

A20309

GASKET, oil seal carrier

1шт.

A20312

GEAR, pinion drive (matched set of 2)

1шт.

NSS

NOT SOLD SEPARAT

1" N.F. hex jam nut

1шт.

A20313

RACE, drive shaft inner bearing (Hyatt no. A1211)

1шт.

A20314

SNAP RING, pulley drive shaft, front

1шт.

A20614

PIPE

SUPPORT, lift arm

1шт.

O2879AB

X

CUP, pulley shaft inner bearing (Timken No. 3720-4C)

2шт.

O3682AB

LOCKWASHER, pulley shaft

1шт.

O7166AB

X

BREATHER, pulley drive housing

1шт.

O8151AB

X

CONE, pulley shaft inner bearing (Timken No. 3780)

1шт.

O8984AB

X

KEY, Woodruff, #129, pulley shaft drive

1шт.

O9512AB

X

SNAP RING, pulley drive shaft, outer

1шт.

O1O813AB

"O" RING, drive shaft rear bearing carrier

1шт.
