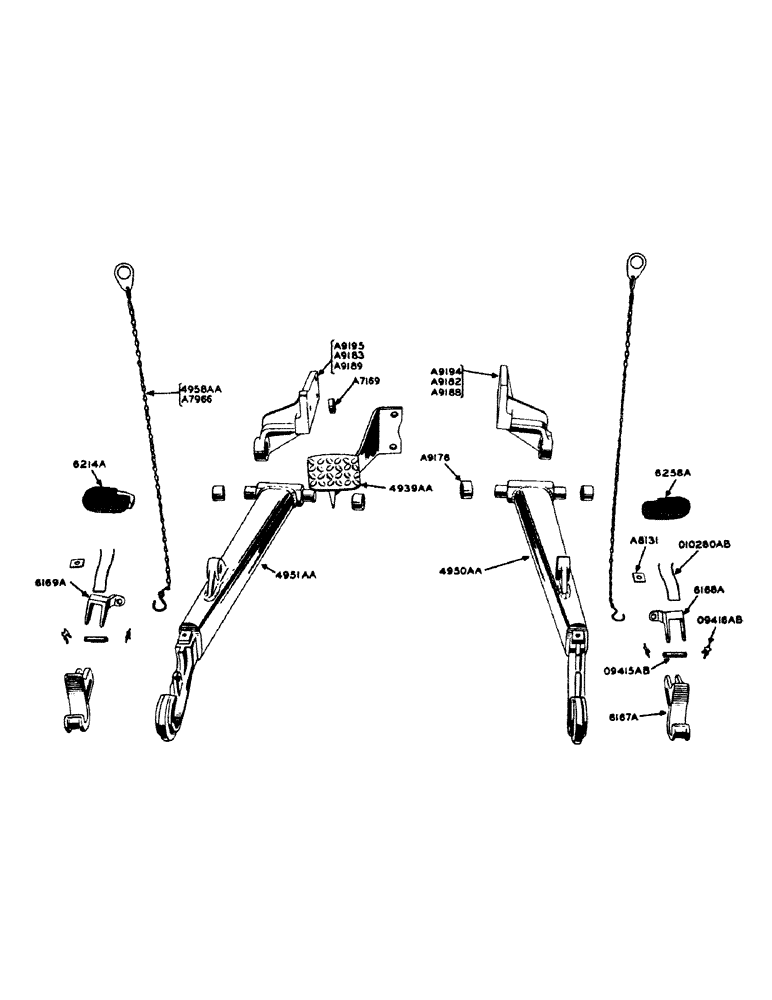

Запчасти Case IH 700 (204) - EAGLE HITCH DRAFT ARMS (06) - POWER TRAIN

A7169

SPACER, draft arm pivot bracket (for general purpose tractors)

1шт.

A7966

CHAIN, latch, eagle hitch (31-5/8" long) (for standard 4-wheel tractors) (see 4958AA)

2шт.

A8131

X

PLATE, eagle hitch latch spring

2шт.

A9174

SPRING

BRACKET (use A9182)

1шт.

A9175

BRACKET (use A9183)

1шт.

A9176

BUSHING

(1.361" O.D.) - draft arm pivot pin

4шт.

A9182

SPRING

BRACKET, draft arm pivot, with A9176 bushing, R.H. (for high clearance tractors) (see A9188 and A9194)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 3" N.C. hex bolt w/lockwasher

1шт.

A9183

CLAMP

BRACKET, draft arm pivot, with A9176 bushing, L.H. (for high clearance tractors) (see A9189 and A9195)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-3/4" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 3" N.C. hex bolt w/lockwasher

1шт.

A9186

BRACKET (use A9188)

1шт.

A9187

BRACKET (use A9189)

1шт.

A9188

BRACKET, draft arm pivot, with A9176 bushing, R.H. (for general purpose tractors) (see A9194 and A9182)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" N.C. hex bolt w/lockwasher

2шт.

A9189

BRACKET, draft arm pivot, with A9176 bushing, L.H. (for general purpose tractors) (see A9195 and A9183)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-3/4" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" N.C. hex bolt w/lockwasher

2шт.

A9192

BRACKET, (use A9194)

1шт.

A9193

BRACKET, (use A9195)

1шт.

A9194

BRACKET, draft arm pivot, with A9176 bushing, R.H. (for standard 4-wheel tractors) (see A9182 and A9188)

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" N.C. hex bolt w/lockwasher

2шт.

A9195

BRACKET, draft arm pivot, with A9176 bushing, L.H. (for standard 4-wheel tractors) (see A9183 and A9189)

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 2-1/2" N.C. hex bolt w/lockwasher

2шт.

6167A

X

LATCH, eagle hitch

2шт.

6168A

X

LOCK, eagle hitch latch, R.H.

1шт.

6169A

X

LOCK, eagle hitch latch, L.H.

1шт.

6214A

X

STEP, latch, L.H.

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" N.C. hex bolt w/lockwasher

1шт.

6258A

X

STEP, latch, R.H.

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" N.C. hex bolt w/lockwasher

1шт.

4939AA

STEP, upper L.H.

1шт.

4950AA

ARM, draft. eagle hitch, R.H.

1шт.

4951AA

ARM, draft, eagle hitch, L.H.

1шт.

4958AA

CHAIN, latch, eagle hitch (35-3/8" long) (for general purpose tractors) (see A7966)

2шт.

O9415AB

X

PIN, latch, eagle hitch

2шт.

O9416AB

X

RING, retaining, latch pin

4шт.

O1O28OAB

SPRING, latch

2шт.
