Запчасти Case IH 700 (010) - POWRDYNE GAS ENGINE, ROCKER ARMS (02) - ENGINE

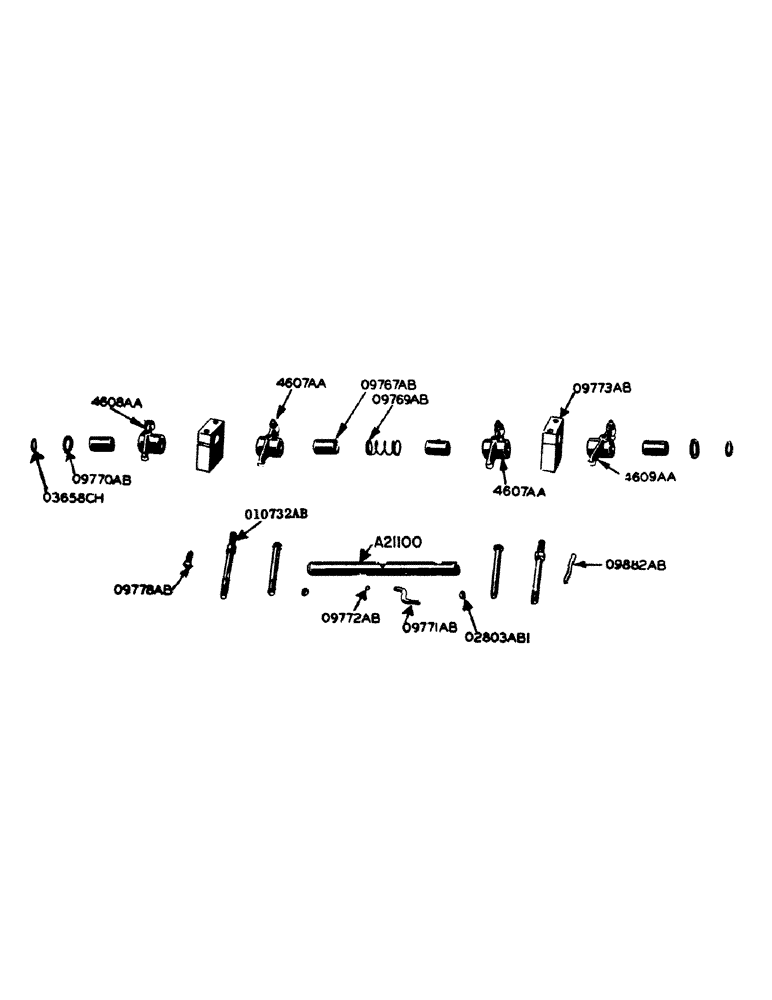

Схема запчастей Case IH 700 - (010) - POWRDYNE GAS ENGINE, ROCKER ARMS (02) - ENGINE

Артикул

Название

Примечание

Количество

A21100

SHAFT

valve rocker arm, w/plugs

2шт.

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW, adjusting (for round end push rod) (use w/A21060 rod and A21061 lifter) (see 09778AB)

8шт.

NSS

NOT SOLD SEPARAT

3/8" N.F. hex jam nut

8шт.

4607AA

X

ARM, inlet valve rocker, with 09767AB bushing

4шт.

4608AA

ARM, exhaust valve rocker, with 09767AB bushings (for no. 1 and no. 3 cylinder)

2шт.

4609AA

ARM, exhaust valve rocker, with 09767AB bushing (for no. 2 and no. 4 cylinder)

2шт.

O2803AB1

PLUG, valve rocker arm shaft

4шт.

O9767AB

X

BUSHING, inlet and exhaust rocker arms

8шт.

O9769AB

X

SPRING, valve rocker arm shaft

2шт.

O9779AB

WASHER, valve rocker arm shaft

12шт.

O9771AB

X

TUBE, oil, valve rocker arm shaft

2шт.

O9772AB

X

"O" RING, rocker arm shaft oil tube

2шт.

O9773AB

BRACKET, valve rocker arm shaft

4шт.

NSS

NOT SOLD SEPARAT

7/16" x 3-3/4" N.C. hex bolt w/lockwasher

4шт.

O9778AB

X

SCREW, valve push rod adjusting (use w/taper end push rod) (see A21105)

8шт.

NSS

NOT SOLD SEPARAT

3/8" N.F. hex jam nut

8шт.

O9882AB

X

WICK, exhaust valve rocker arm

4шт.

O10732AB

STUD, valve rocker arm shaft bracket

4шт.

NSS

NOT SOLD SEPARAT

7/16" N.F. hex light nut and lockwasher

4шт.

O3658CH

X

SNAP RING, valve rocker arm shaft

4шт.

Выбрано товаров: 20
