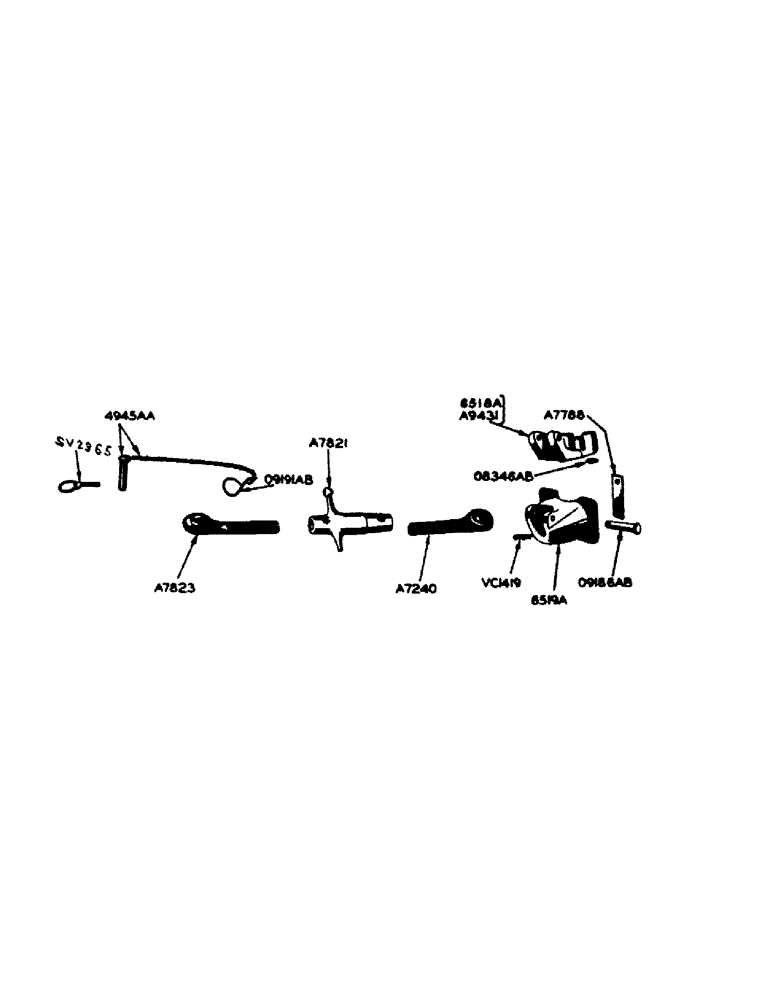

Запчасти Case IH 700 (203) - DEPTH ADJUSTING SCREW (06) - POWER TRAIN

A7240

SCREW, depth adjusting, front (L.H. thread - 4" long)

1шт.

A7788

SPACER, lower mounting bracket (for standard 4-wheel tractor)

1шт.

A7821

TURNBUCKLE, depth adjusting screw

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting No. 5000

2шт.

A7823

SCREW, depth adjusting, rear (R.H. thread - 4-23/32" long)

1шт.

NSS

NOT SOLD SEPARAT

1-1/4" N.F. hex jam nut

1шт.

A9431

BRACKET, depth adjusting screw mounting, upper, and for breather (For eagle hitch tractors only, except high clearance) (see 6518A)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/2" N.C. hex bolt

1шт.

NSS

NOT SOLD SEPARAT

1/2" x N.C. hex bolt w/lockwasher

2шт.

NSS

NOT SOLD SEPARAT

3/4" sq. hd. pipe plug

1шт.

6518A

BRACKET, depth adjusting screw mounting, upper (for tractors without eagle hitch and high clearance) (See A9431)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 3" N.C. hex bolt w/lockwasher

2шт.

6519A

BRACKET, mounting, depth adjusting screw, lower

1шт.

4945AA

PIN, eagle hitch mast, with chain

1шт.

O8346AB

X

"O" RING, for A9431 bracket

1шт.

O9186AB

PIN, depth adjusting screw yoke

1шт.

O9191AB

X

"S" HOOK, mast pin chain

1шт.

SV2365

X

PIN, keeper, mast pin

1шт.

VC1419

X

COTTER, hair pin, for O9186AB pin

1шт.

B17027

KIT

Set of #61 transfers for 700 Series

1шт.

B17028

DECAL

Set of #62 transfer for 800 Series

1шт.
