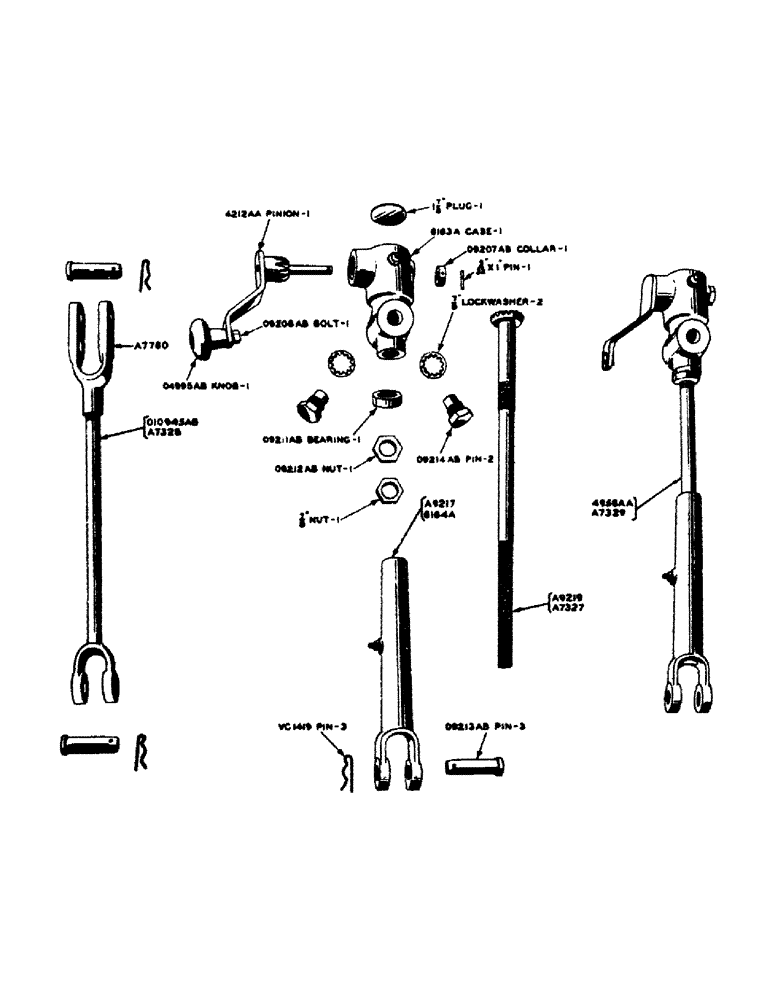

Запчасти Case IH 700 (202) - EAGLE HITCH LIFTING LINKS (06) - POWER TRAIN

A7327

SCREW,19-13/16"

leveling, with gear, 19-13/16" long (for std. 4-wheel tractors) (see A9219)

1шт.

NSS

NOT SOLD SEPARAT

7/8" N.F. hex jam nut

1шт.

A7328

LINK, draft arm lifting, L.H. (for standard 4-wheel tractors) (see O10945AB)

1шт.

NSS

NOT SOLD SEPARAT

3/4" N.F. hex jam nut

1шт.

A7329

SCREW, leveling, complete, less knob and bolt (for standard 4-wheel tractors) (see 4956AA)

1шт.

A7760

YOKE, L.H. draft arm lifting link

1шт.

A9217

YOKE, for A9219 leveling screw (see 6164A)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

1шт.

A9219

SCREW,14-13/16"

leveling, with gear, 14-3/4" long (for general purpose and high clearance tractors) (used with A9217 yoke) (see A7327)

1шт.

NSS

NOT SOLD SEPARAT

7/8" N.F. hex jam nut

1шт.

6163A

X

CASE, gear, leveling screw

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

1шт.

NSS

NOT SOLD SEPARAT

1-7/8" Welch plug

1шт.

6164A

YOKE, for 4944AA and A7327 leveling screws (see A9217)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

1шт.

4212AA

X

PINION, level, with shaft and hand lever, less knob and bolt

1шт.

4944AA

SCREW, leveling, with gear, 22-1/2" long (for general purpose and high clearance tractors) (use 1 - A9219 screw and 1 - A9217 yoke)

1шт.

4956AA

SCREW, leveling, complete, less knob and bolt (for general purpose and high clearance tractors) (see A7329)

1шт.

O4995AB

X

KNOB, hand lever

1шт.

O9207AB

X

COLLAR, pinion shaft

1шт.

NSS

NOT SOLD SEPARAT

5/32" x 1" type 1 full length taper groove pin

1шт.

O9208AB

X

BOLT, hand lever knob

1шт.

NSS

NOT SOLD SEPARAT

3/8" N.F. hex nut and lockwasher

1шт.

O9211AB

X

BEARING, leveling screw (Nice No. 4962)

1шт.

O9212AB

X

NUT, brass, leveling screw

1шт.

O9213AB

X

PIN, lifting rods

3шт.

O9214AB

X

PIN, leveling screw mounting

2шт.

NSS

NOT SOLD SEPARAT

7/8" Shakeproof internal lockwasher #1234

2шт.

O10945AB

LINK, draft arm lifting, L.H. (for general purpose tractors) (See A7328)

1шт.

NSS

NOT SOLD SEPARAT

3/4" N.F. hex jam nut

1шт.

VC1419

X

COTTER, hair pin, for O9213AB pin

3шт.
