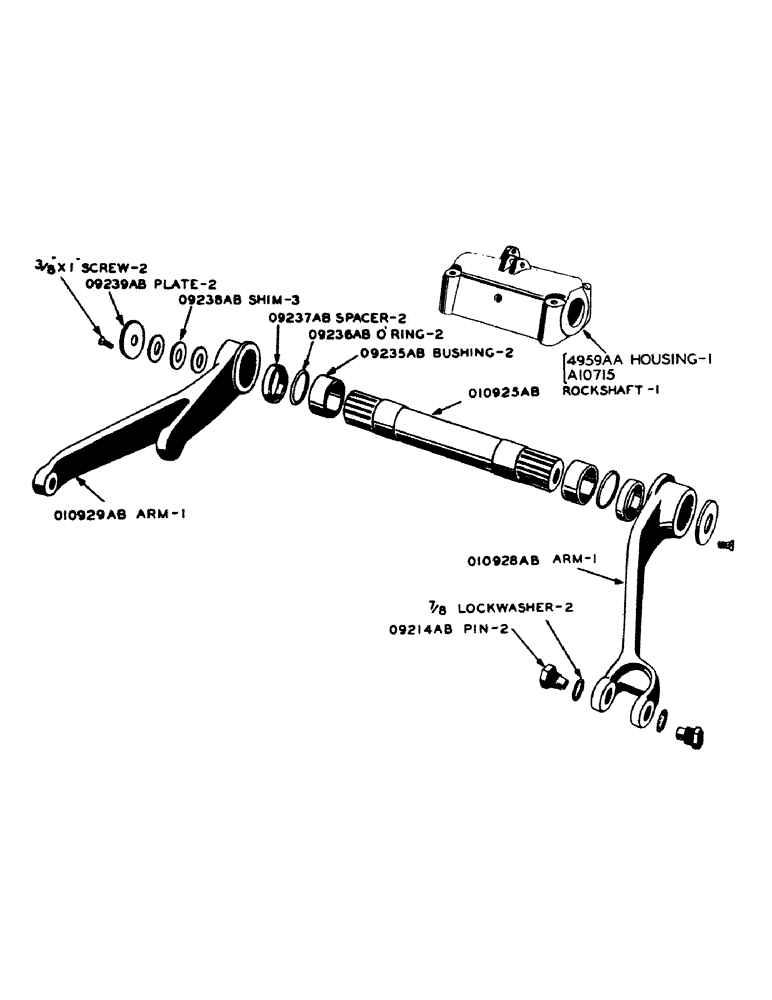

Запчасти Case IH 700 (201) - EAGLE HITCH ROCKSHAFT (06) - POWER TRAIN

A10709

HOUSING, (use A10715) (Orchard models) (see 6517A)

1шт.

A10715

HOUSING, rockshaft, with 2 - O9235AB bushings (Orchard models) (see 4959AA)

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 4-1/4" N.C. hex bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/2" sq. hd. pipe plug

1шт.

6517A

HOUSING, (use 4959AA) (all but Orchard models) (see A10709)

1шт.

4959AA

X

HOUSING, rockshaft, with O9235AB bushings (all but Orchard models) (see A10715)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 4-1/4" N.C. hex bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/2" sq. hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting

1шт.

O9214AB

X

PIN, leveling screw mounting

2шт.

NSS

NOT SOLD SEPARAT

7/8" shakeproof internal tooth lockwasher #1234

2шт.

O9235AB

X

BUSHING, rockshaft

2шт.

O9236AB

X

"O"RING, rockshaft

2шт.

O9237AB

X

SPACER, rockshaft "o" ring

2шт.

O9238AB

SHIM, rockshaft adjusting (#30 gauge)

3шт.

O9239AB

PLATE, lock, rockshaft lift arm

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. flat hd. mach. screw

2шт.

O10925AB

ROCKSHAFT, eagle hitch

1шт.

O10928AB

ARM, rockshaft lift, R.H.

1шт.

O10929AB

ARM, rockshaft lift, L.H.

1шт.
