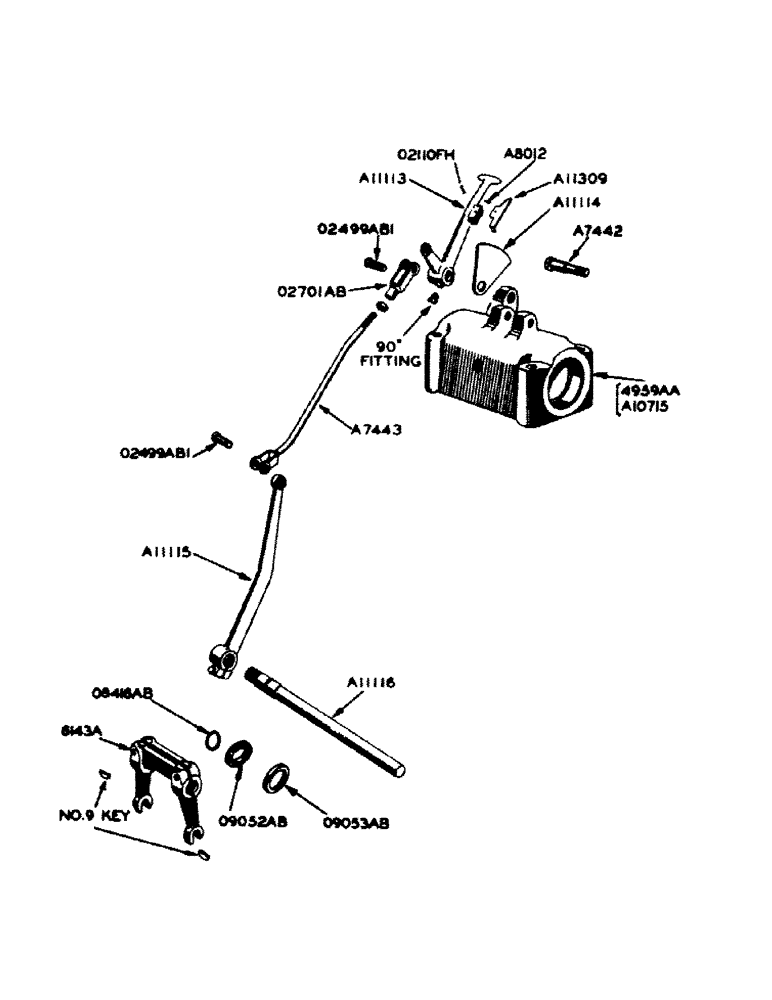

Запчасти Case IH 700 (188) - PTO CLUTCH THROWOUT (06) - POWER TRAIN

138-5

ROLL PIN, 1/16" x 7/16" (on A20186)

1шт.

A7442

PIN, PTO clutch hand lever mounting (for all but Orchard tractors)

1шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex jam nut and lockwasher

1шт.

A7443

ROD, PTO clutch control

1шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex jam nut

1шт.

A8012

SPRING

PTO clutch hand lever latch (for all but Orchard tractors) (see A20190)

1шт.

A11113

LEVER, PTO clutch hand (for all but Orchard tractors) (see A20180)

1шт.

NSS

NOT SOLD SEPARAT

1/8" 90 deg. Lincoln fitting #5400

1шт.

A11114

PLATE, PTO clutch hand lock (for all but Orchard tractors) (see A20189)

1шт.

A11115

LEVER, PTO clutch control cross shaft

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/8" N.C. hex bolt w/lockwasher

1шт.

A11116

SHAFT, PTO clutch throwout

1шт.

NSS

NOT SOLD SEPARAT

#9 Woodruff key

2шт.

A11309

SELECTOR

LATCH AND CLIP, PTO clutch hand lever

1шт.

A20180

LEVER, hand, PTO clutch control (for Orchard tractors only) (see A11113)

1шт.

A20183

SUPPORT, clutch hand lever bearing (for Orchard tractors only)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 7/8" N.F. hex bolt w/nut and lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" N.C. hex bolt

2шт.

NSS

NOT SOLD SEPARAT

3/16" 67 1/2 deg. lubricating drive fitting

1шт.

A20186

ROD, lock, PTO hand clutch (for Orchard tractors only)

1шт.

A20189

LOCK, clutch control hand lever (for Orchard tractors only)

1шт.

A20190

SPRING, PTO hand clutch lock (for Orchard tractors only) (see A8012)

1шт.

6143A

X

YOKE, PTO clutch throwout

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" N.C. hex bolt w/lockwasher

2шт.

O2499AB1

X

PIN, yoke

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

2шт.

O2701AB

X

YOKE END, clutch throwout rod

1шт.

O3501AB

X

BALL, hand lever (Orchard tractors only)

1шт.

O8416AB

X

"O" RING, throwout shaft

1шт.

O9052AB

X

WASHER, felt, throwout shaft

1шт.

O9053AB

X

RETAINER, for 09052AB washer

1шт.

O2110FH

X

ROLL PIN, (3/16" x 3/4") A11309 to A11113 (for all but Orchard tractors)

1шт.
