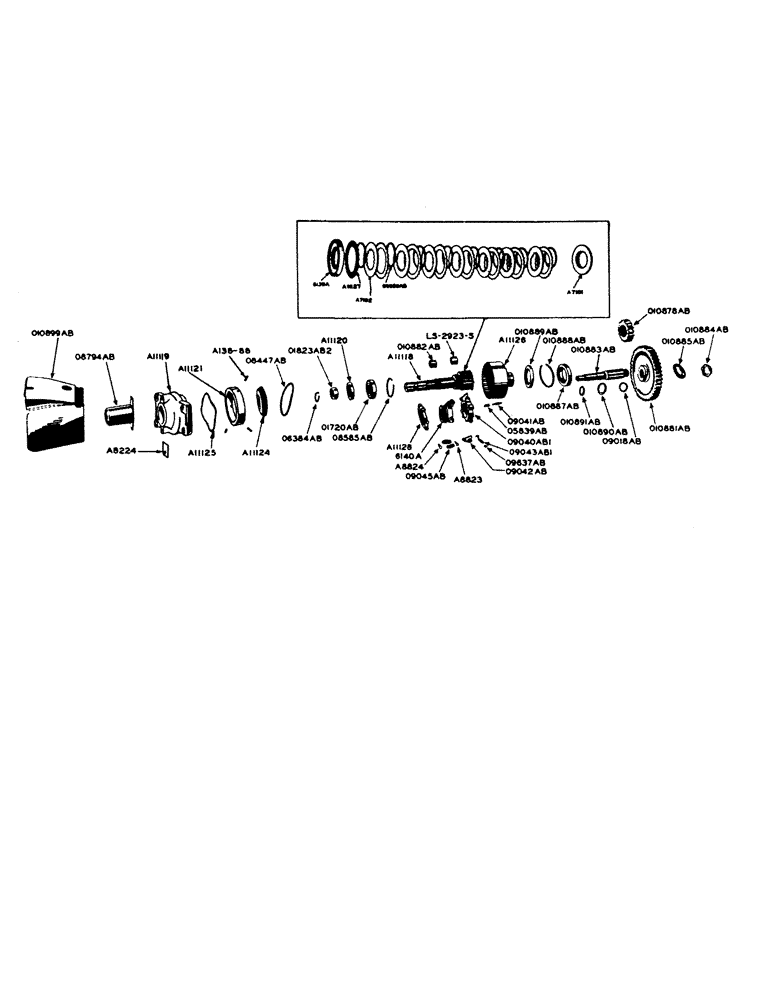

Запчасти Case IH 700 (186) - PTO CLUTCH (06) - POWER TRAIN

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

on 08794AB Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

NSS

NOT SOLD SEPARAT

5/16" Shakeproof ext.-int. tooth lockwasher #4018-24

2шт.

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, (on A11119) 3/16" x 1/2", Slotted

3шт.

A7101

PLATE

clutch backing

1шт.

A7102

CLUTCH DRIVING PLATE

PLATE, clutch driven

7шт.

A8224

STRAP, retaining, PTO bearing carrier

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex bolt

1шт.

A8823

PIN,6.29mm OD x 26.99mm L

clutch lever link, to clutch finger

3шт.

NSS

NOT SOLD SEPARAT

3/32" x 1/2" cotter pin

3шт.

A8824

PIN

clutch lever link, to clutch sleeve, Serial Range: (prior-SN8140001)

3шт.

NSS

NOT SOLD SEPARAT

3/32" x 1/2" Cotter pin

3шт.

A11117

COLLAR, PTO clutch throwout (use A11128)

1шт.

A11118

SHAFT, PTO

1шт.

A11119

CARRIER, bearing, PTO shaft, Serial Range: (prior-SN8140001)

1шт.

A11120

SEAL

PTO shaft

1шт.

A11121

RING

PTO brake

1шт.

A11124

DISC

brake (includes bonded lining)

1шт.

A11125

VALVE SPRING

SPRING, PTO brake wave

1шт.

A11126

DRUM, PTO clutch

1шт.

A11127

PLATE

clutch drive

8шт.

A11128

COLLAR

PTO clutch throwout (consists of collar with 2-5/16" x 2" NF hex bolts and 2 - 010837AB stop nuts)

1шт.

A20308

STRAP, retaining, P.T.O. bearing carrier (SN8140001 and after)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" N.C. hex bolt

1шт.

A20483

GUARD

tubular, P.T.O. shaft (SN8140001 and after)

1шт.

6139A

X

PLATE, clutch pressure

1шт.

6140A

X

SLEEVE, sliding

1шт.

O1720AB

BEARING

P.T.O.

1шт.

O1823AB2

X

COLLAR, PTO shaft

1шт.

O5839AB

X

SPRING, clutch adjusting lock pin

2шт.

O6384AB

SNAP RING, PTO shaft

1шт.

O8447AB

X

"O" RING, PTO shaft bearing carrier

1шт.

O8585AB

X

SNAP RING, PTO shaft bearing carrier

1шт.

O8794AB

GUARD, tubular, PTO shaft, Serial Range: (prior-SN8140001)

1шт.

O9018AB

X

"O" RING, PTO clutch drive shaft

1шт.

O9039AB

SPRING

PTO clutch drive plate separator

8шт.

O9040AB1

X

YOKE, clutch adjusting

1шт.

O9041AB

X

PIN CLUTCH ADJUSTING LOCK

2шт.

O9042AB

X

FINGER, clutch

3шт.

O9043AB1

X

PIN, clutch finger

3шт.

O9045AB

LINK, clutch lever

6шт.

O9637AB

X

"E" RING, retaining, for 09043AB1 pin

6шт.

O10878AB

PINION, PTO

1шт.

O10881AB

GEAR, PTO

1шт.

O10882AB

X

BEARING, rear pilot, PTO shaft

1шт.

O10883AB

SHAFT, clutch drive

1шт.

O10884AB

X

NUT, clutch drive shaft

1шт.

O10885AB

X

LOCKWASHER, clutch drive shaft nut

1шт.

O10887AB

X

BEARING, clutch drum

1шт.

O10888AB

X

SNAP RING, retaining, clutch drum bearing

1шт.

O10889AB

X

OIL SEAL, clutch drum

1шт.

O10890AB

WASHER, retainer, clutch drum

1шт.

O10891AB

X

SNAP RING, clutch drum retainer washer

1шт.

O10899AB

X

GUARD, master, PTO

1шт.

LS2923S

X

BEARING, pilot PTO drive shaft, front

1шт.
