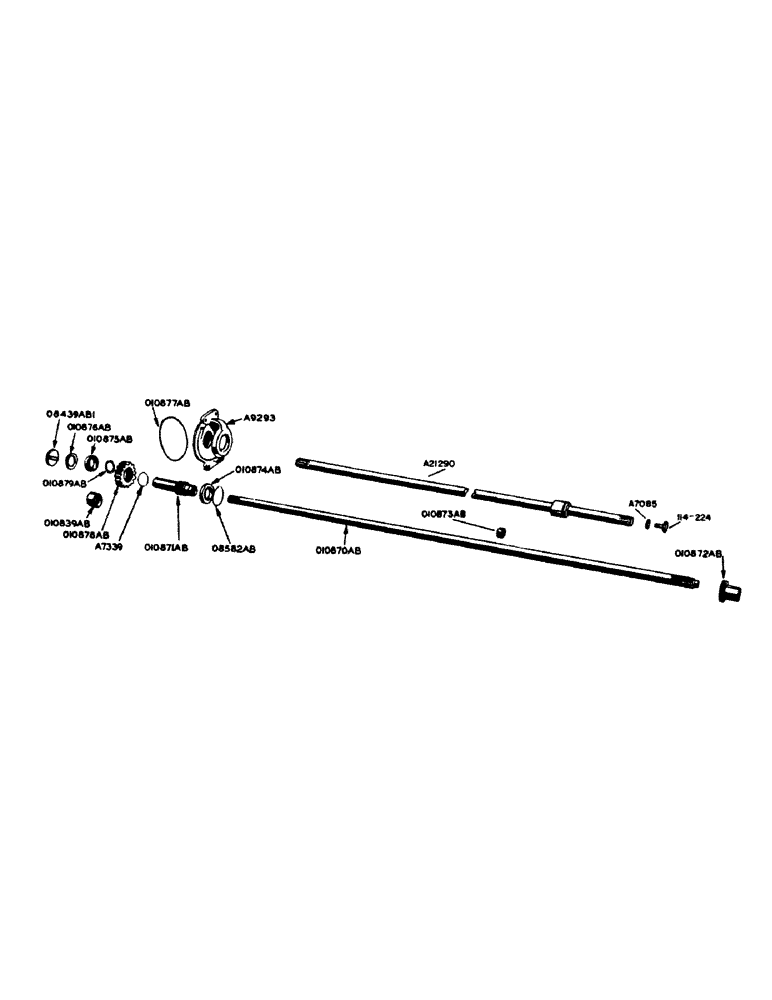

Запчасти Case IH 700 (183) - PTO AND HYDRAULIC DRIVE UPPER MAIN SHAFT (06) - POWER TRAIN

114-224

BOLT, 3/8" x 3/4" N.F. hex

1шт.

A7085

WASHER

P.T.O. and hyd. drive shaft (on A21290)

1шт.

A7339

RING

SNAP RING, P.T.O. pinion, on extension shaft

1шт.

A9293

CARRIER, extension shaft bearing

1шт.

NSS

NOT SOLD SEPARAT

1/8" sq. hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" N.C. hex bolt w/lockwasher

4шт.

A11674

SHAFT, P.T.O. and hydraulic pump drive (case-o-matic) (see 010870AB) (use A21295)

1шт.

A20224

RING, SNAP

SNAP RING, converter plug retaining

1шт.

A21273

SEALING RING

RING, P.T.O. and hyd. pump drive shaft

1шт.

A21290

SHAFT

P.T.O. and hyd. pump, w/collar (all types converters)

1шт.

REFER TO SHAFT A21290 RING IS A21273

1шт.

A21295

KIT

conversion, to change two-piece shaft, (A11645 and A11674) to one-piece P.T.O. and hydraulic shaft (consists of A7085, 2 - A11593, A20224, A21273, A21290, A21312 and 114-214)

1шт.

A21312

PLUG

converter, front

1шт.

A21372

SHAFT, P.T.O. and hyd. pump drive (type "E" converter only)

1шт.

6504A

CARRIER BEARING (use A9293)

1шт.

O8582AB

X

SNAP RING, extension shaft front bearing (010874AB)

1шт.

O10839AB

SPACER, extension shaft, replaces P.T.O. pinion on tractors without P.T.O. (see 010878AB)

1шт.

O10870AB

SHAFT, P.T.O. and hydraulic pump drive (700 tractors) (see A11674)

1шт.

O10871AB

X

SHAFT, extension, P.T.O. and hydraulic pump drive

1шт.

O10872AB

X

SLEEVE, P.T.O. and hydraulic pump drive shaft, front end (700 tractors)

1шт.

O10873AB

X

BUSHING, P.T.O. and hydraulic pump drive shaft, at rear of range drive shaft

1шт.

O10874AB

X

BEARING, extension shaft, front (new departure no. 73L08)

1шт.

O10875AB

X

BEARING, extension shaft, rear (new departure no. 73L07)

1шт.

O10876AB

X

OIL SEAL, extension shaft, rear

1шт.

O10877AB

X

"O" RING, for A9293 bearing carrier

1шт.

O10878AB

PINION, P.T.O.

1шт.

O10879AB

SPACER, between 010875AB bearing and pinion

1шт.
