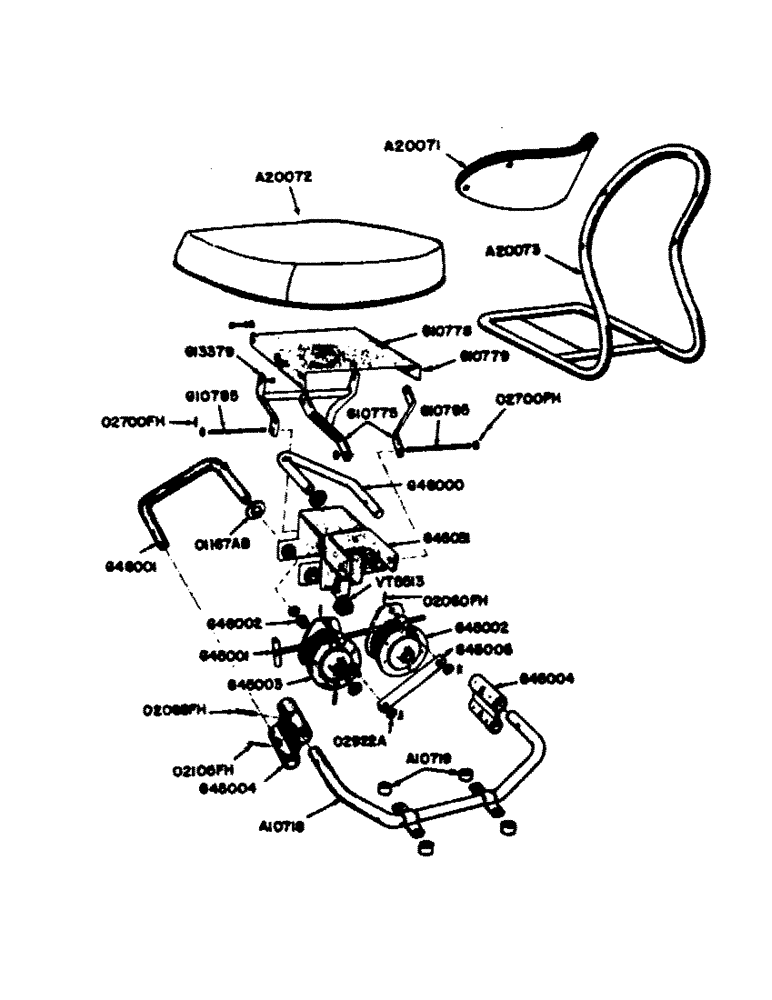

Запчасти Case IH 700 (181) - CASE DELUXE SEAT, FOR ORCHARD TRACTORS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A10718
SUPPORT, seat
1шт.
A10719
SPACER, seat support
4шт.
A20071
BACK REST, seat, Serial Range: (prior-SN8140001)
1шт.
A20072
SEAT, padded, Serial Range: (prior-SN8140001)
1шт.
A20073
FRAME AND GUIDE, seat, Serial Range: (prior-SN8140001)
1шт.
A20462
CHANNEL, seat (SN8140001 and after)
1шт.
A20556
FRAME AND GUIDE, seat (SN8140001 and after)
1шт.
A20557
BACKREST
BACK REST, seat (SN8140001 and after)
1шт.
A20558
SEAT, padded (SN8140001 and after)
1шт.
A20589
KIT, spring retainer bracket for seat guide and plunger assy., (consists of plunger pin and handle, retainer bracket, seat lock spring and rivets)
1шт.
G10775
ARM
rear pivot, mounting channel
2шт.
G10778
CHANNEL
seat mounting
1шт.
NSS
NOT SOLD SEPARAT
1/4" x 1/2" N.F. hex bolt w/nut and lockwasher
1шт.
G10779
RIVET
pivot arm, mounting channel
4шт.
G10785
X
SHAFT, pivot
2шт.
NSS
NOT SOLD SEPARAT
5/16" plain washer
4шт.
G13379
ARM, front pivot, mounting channel
1шт.
G45001
STUD
adjusting
1шт.
G45002
SPRING SEAT
RUBBER SPRING ASSEMBLY, R.H.
1шт.
NSS
NOT SOLD SEPARAT
1/4" x 1-1/4" groove pin, type A
1шт.
G45003
SPRING SEAT
RUBBER, spring assembly, L.H.
1шт.
NSS
NOT SOLD SEPARAT
1/4" x 1-1/4" groove pin, type A
1шт.
G45004
LEVER
short suspension
2шт.
G45005
LINK, stabilizing
1шт.
NSS
NOT SOLD SEPARAT
1/8" x 3/4" cotter pin
2шт.
G45031
BRACKET, support assembly
1шт.
G46000
SHAFT, spring, R.H.
1шт.
G46001
SHAFT, spring, L.H.
1шт.
G46002
FLANGED BEARING
BEARING, flange
2шт.
O2922A
X
WASHER, stabilizer link (1" O.D. x 17/32" I.D. #14 ga.)
4шт.
O1167AB
X
WASHER, spring shafts (1-1/4" O.D. 49/64" I.D. #14 ga.)
6шт.
O2060FH
X
ROLL PIN, (3/8" x 3/4") for adjuster stud
2шт.
O2068FH
X
ROLL PIN, (1/4" x 1-1/4") for spring shafts
2шт.
O2105FH
X
ROLL PIN, (5/16" x 1-1/4") for A10718 support
2шт.
O2700FH
X
ROLL PIN, (3/32" x 5/8") pivot shafts
4шт.
VT5513
X
BUMPER, rubber
1шт.
Выбрано товаров: 36
