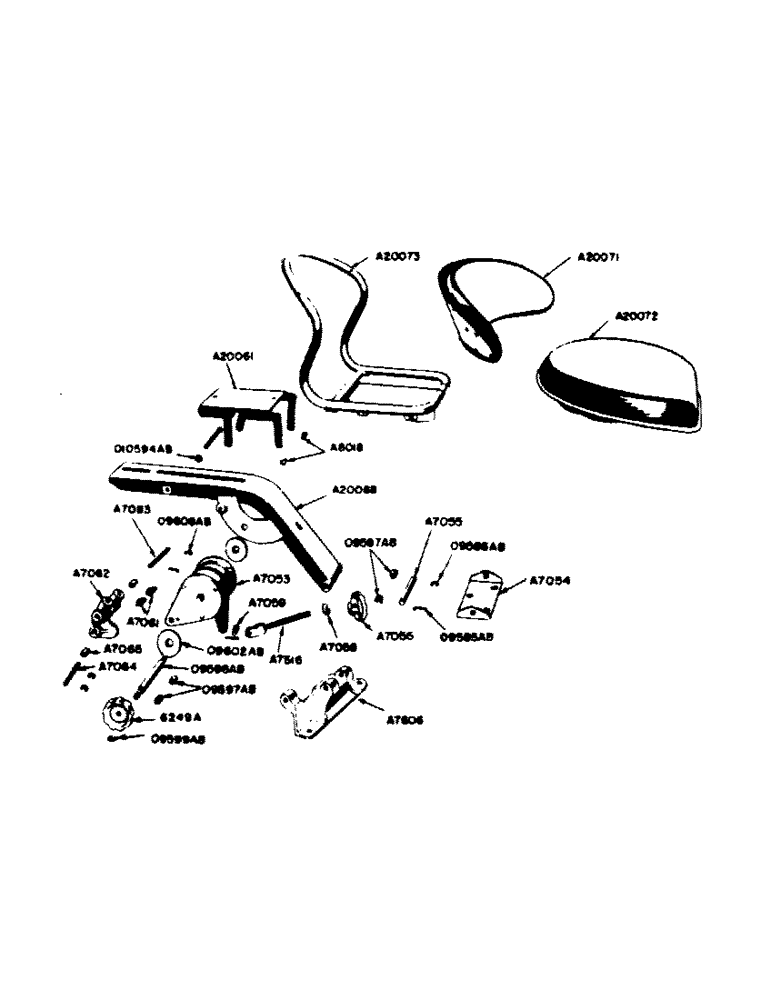

Запчасти Case IH 700 (180) - CASE DELUXE SEAT, FOR ALL BUT ORCHARD (06) - POWER TRAIN

A7053

SPRING

rubber torsion, and side arm assembly

1шт.

A7054

SPARE PART

BRACKET, seat channel

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" N.C. hex bolt w/lockwasher

3шт.

A7055

PIN, pivot, seat channel

1шт.

A7056

NUT

hand wheel, seat spring adjusting

1шт.

A7058

BUSHING

WASHER, seat spring adjusting nut

1шт.

A7059

PIN, seat spring mounting adjusting rod

1шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

1шт.

A7060

BRACKET

LINK, (use A7062)

1шт.

A7061

BUMPER

seat, on A7062 link

2шт.

A7062

LINK, seat mounting support, with 3 - A7065 bushings and 2 - A7061 bumpers

1шт.

A7063

PIN, seat mounting support link, upper

1шт.

A7064

FRAME

PIN, seat mounting support link, lower

1шт.

A7065

BUSHING

for A7062 support link

3шт.

A7516

ROD AND YOKE END, seat spring adjusting

1шт.

A7606

BRACKET, seat mounting (std. 4 wheel tractor)

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" N.C. hex bolt w/lockwasher

2шт.

A8018

STEP BOLT

BOLT, pivot, seat mounting

2шт.

A20061

CHANNEL, seat mounting

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 6-1/4" N.F. hex bolt

1шт.

A20068

CHANNEL, seat, Serial Range: (prior-SN8140001)

1шт.

A20071

BACK REST, seat, Serial Range: (prior-SN8140001)

1шт.

A20072

SEAT, padded, Serial Range: (prior-SN8140001)

1шт.

A20073

FRAME AND GUIDE, seat, Serial Range: (prior-SN8140001)

1шт.

A20462

CHANNEL, seat (SN8140001 and after)

1шт.

A20556

FRAME AND GUIDE, seat (SN8140001 and after)

1шт.

A20557

BACKREST

BACK REST, seat (SN8140001 and after)

1шт.

A20558

SEAT, padded (SN8140001 and after)

1шт.

A20589

KIT, spring retainer bracket, for seat guide and plunger assy., (consists of plunger pin and handle, retainer bracket, seat lock spring and rivets)

1шт.

A20713

PLATE, seat safety retainer (weld in place)

1шт.

A20771

FRAME, seat, with A20061 channel and safety plate (use with A20556 from, Serial Range: SN8140001-SN8143869)

1шт.

G49062

BOLT, seat mounting safety (SN8143869 and after)

1шт.

NSS

NOT SOLD SEPARAT

3/8" N.F. hex nut w/lockwasher

1шт.

6249A

NUT, hand wheel, to adjust seat mounting

1шт.

O9585AB

X

LOCK, for A7063 and A7055 or A8430 pins

2шт.

O9586AB

X

"E" RING, retaining, seat channel pivot pin

1шт.

O9587AB

X

BUSHING, seat channel pivot pin

2шт.

O9597AB

BUSHING, for 09598AB pivot bolt

2шт.

O9598AB

X

BOLT, pivot, seat mounting

1шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex jam nut

1шт.

NSS

NOT SOLD SEPARAT

1/2" Std. lockwasher

1шт.

O9599AB

X

"E" RING, retaining, for 09598AB bolt

1шт.

O9602AB

X

DISC, friction, for torsion spring assembly

2шт.

O9608AB

X

"E" RING, retaining, for A7063 and A7064 link pins

3шт.

O10594AB

X

STOP NUT, elastic, seat mount

1шт.
