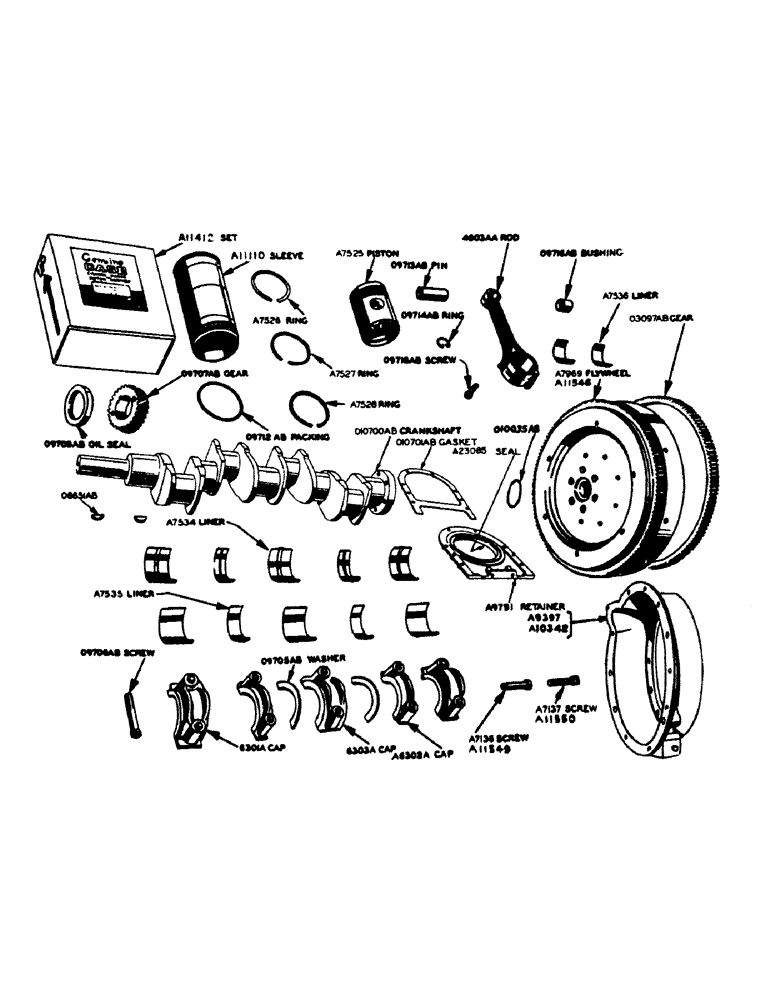

Запчасти Case IH 700 (008) - POWRDYNE GAS ENGINE, PISTONS, CONNECTING RODS AND CRANKSHAFT (02) - ENGINE

A7207

SLEEVE CYLINDER

LINERS, connecting rod bearing, top and bottom half (.002" undersize)

4шт.

A7209

X

LINERS, connecting rod bearing, top and bottom half (.010" undersize)

4шт.

A7211

X

LINERS, connecting rod bearing, top and bottom half (.020" undersize)

4шт.

A7213

SLEEVE CYLINDER

LINERS, connecting rod bearing, top and bottom half (.030" undersize)

4шт.

A7525

PISTON

4шт.

A7526

OIL SEAL

RING, piston, top (see note)

4шт.

A7527

OIL SEAL

RING, piston, second and third (see note)

8шт.

A7528

RING, piston, oil (see note)

4шт.

A7536

X

LINERS, connecting rod bearing, top and bottom half (standard size)

4шт.

A8095

KIT

RINGS, piston, set of (16) perfect circle 2-in-1 chrome

1шт.

A11110

X

SLEEVE, cylinder

4шт.

A11412

Set of (2) cylinder sleeves, pistons, rings and pistons pins

2шт.

4603AA

X

ROD, connecting, with cap, bushing and cap screws

4шт.

O9712AB

X

"O" RING, cylinder sleeve

8шт.

O9713AB

PIN, piston

4шт.

O9714AB

X

RING, piston pin retainer

8шт.

O9716AB

BUSHING, piston pin

4шт.

O9718AB

X

CAP SCREW, connecting rod

8шт.

A7134

FLYWHEEL (use A7969) (model 700) (see A11545), crankshaft

1шт.

A7136

HEX SOC SCREW,Sl Hex, 9/16" - 18 x 2 5/32"

BOLT, dowel, flywheel (model 700), crankshaft

2шт.

A7137

HEX SOC SCREW,Sl Hex, 5/8" - 18 x 2 1/8"

BOLT, flywheel (model 700), crankshaft

4шт.

A7204

WASHER

crankshaft thrust (.006" oversize) (see 09705AB)

2шт.

A7216

SLEEVE CYLINDER

LINERS, crankshaft bearing (wide-upper and lower) (.002" undersize)

3шт.

A7219

X

LINERS, crankshaft bearing (narrow-upper and lower) (.002" undersize)

2шт.

A7222

X

LINERS, crankshaft bearing (wide-upper and lower) (.010" undersize)

3шт.

A7225

LINERS, crankshaft bearing (narrow-upper and lower) (.010" undersize)

2шт.

A7228

LINERS, crankshaft bearing (wide-upper and lower) (.020" undersize)

3шт.

A7231

LINERS, crankshaft bearing (narrow-upper and lower) (.020" undersize)

2шт.

A7234

LINERS, crankshaft bearing (wide-upper and lower) (.030" underzize)

3шт.

A7237

LINERS, crankshaft bearing (narrow-upper and lower) (.030" undersize)

2шт.

A7534

X

LINERS, crankshaft bearing (wide-upper and lower) (standard size)

3шт.

A7535

LINERS, crankshaft bearing (narrow-upper and lower) (standard size)

2шт.

A7969

FLYWHEEL, with ring gear (model 700) (see A11546), crankshaft

1шт.

A9791

RETAINER

crankshaft rear oil seal, with dowel pins

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex bolt w/lockwasher, crankshaft

6шт.

A11545

FLYWHEEL, (model 800) (use A11546) (see A7134), crankshaft

1шт.

A11546

SPARE PART

FLYWHEEL, w/ring gear (model 800) see A7969), crankshaft

1шт.

A11549

STEP BOLT

BOLT, flywheel dowel (model 800), crankshaft

4шт.

A11550

BOLT (SPREADER)

BOLT, flywheel (model 800), crankshaft

2шт.

A23085

OIL SEAL

OIL SEAL, crankshaft, rear

1шт.

6301A

CAP, crankshaft bearing, wide

2шт.

A6302A

X

CAP, crankshaft bearing, narrow

2шт.

6303A

CAP, crankshaft thrust bearing

1шт.

6452A

RETAINER, crankshaft rear oil seal (use A9791)

1шт.

O3097AB

X

RING GEAR, flywheel (139 teeth), crankshaft

1шт.

O8651AB

X

KEY, woodruff, for crankshaft

2шт.

O9705AB

X

WASHER, crankshaft thrust (standard size) (see A7204)

2шт.

O9706AB

SCREW, crankshaft bearing cap

10шт.

O9707AB

X

GEAR, crankshaft

1шт.

O9708AB

X

OIL SEAL, crankshaft, front

1шт.

O9710AB

PIN, dowel, for 6452A retainer, crankshaft

2шт.

O10035AB

X

"O" RING, flywheel, crankshaft

1шт.

O10700AB

CRANKSHAFT

1шт.

O10701AB

X

GASKET, crankshaft rear oil seal retainer

1шт.

A20152

GASKET

1шт.

GASKET KIT, valve grind, includes the following (2) A7363, Gasket, intake manifold, (4) A7669, Ring, rubber for cylinder head gasket, (2) A9235, Gasket, cylinder head, (1) 0889AB1 Gasket, carburetor to manifold, (1) 01116AB1, Gasket, carburetor to air cleaner elbow, (2) 08569AB, "O"ring, cylinder head oil passage, (2) 09772AB, "O" ring, rockwer arm shaft tube, (4) 09804AB1, Gasket, water manifold, (4) 09815AB, Gasket, exhaust manifold, (2) 09959AB, Gasket, cylinder head cover, (1) 010715AB, Gasket, thermost

1шт.
