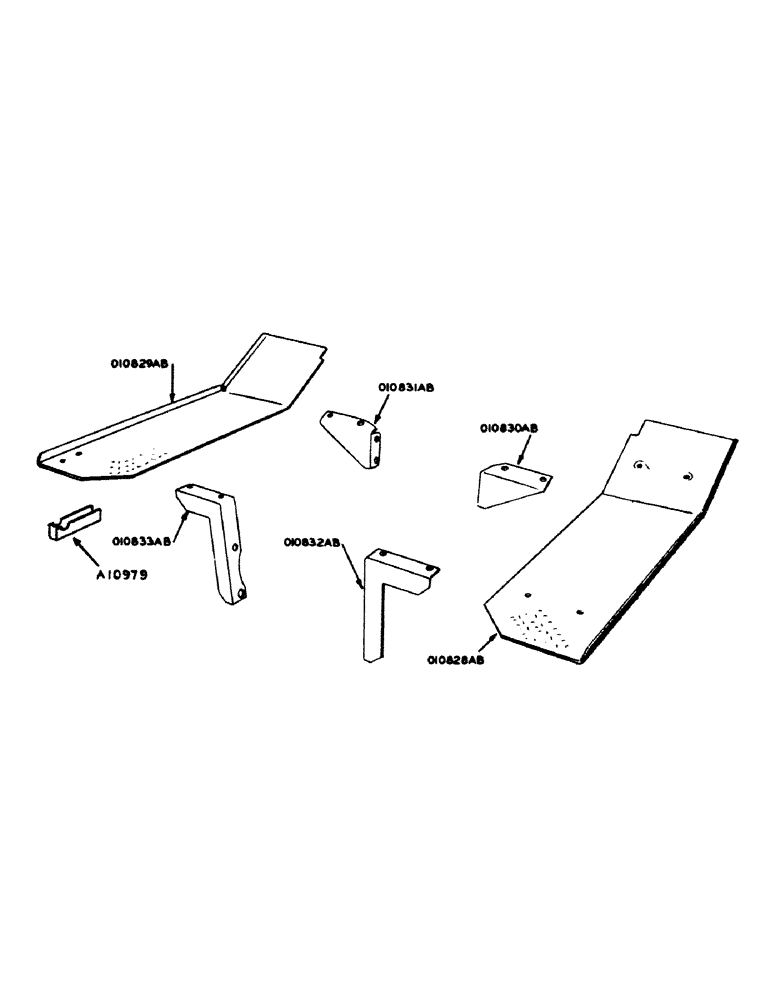

Запчасти Case IH 700 (179) - PLATFORM, FOR ALL BUT ORCHARD TRACTORS (06) - POWER TRAIN

A10979

BRACKET, transport, portable cylinder

1шт.

A11099

TOOL

BOX

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 5/8" N.C. hex bolt w/lockwasher

2шт.

A20551

PLATFORM, L.H. (800 tractors w/treadle clutch)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" N.F. hex bolt w/jam nut

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. truss hd. mach. screw w/hex nut and lockwasher

3шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex bolt w/lockwasher

4шт.

A20555

SPACER, tool box

2шт.

NSS

NOT SOLD SEPARAT

5/16" x 7/8" N.C. hex bolt w/lockwasher

2шт.

O10828AB

PLATFORM, R.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. truss hd. mach. screw w/hex nut and lockwasher

3шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex bolt w/lockwasher

4шт.

O10829AB

PLATFORM, L.H. (all 700 tractors and 800 less treadle clutch)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. truss hd. mach. screw w/hex nut and lockwasher

3шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" hex bolt w/lockwasher

4шт.

O10830AB

SUPPORT, platform front, R.H.

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" N.C. hex bolt w/lockwasher

2шт.

O10831AB

SUPPORT, platform front, L.H.

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" N.C. hex bolt w/lockwasher

2шт.

O10832AB

SUPPORT, platform rear, R.H.

1шт.

O10833AB

SUPPORT, platform rear, L.H.

1шт.
