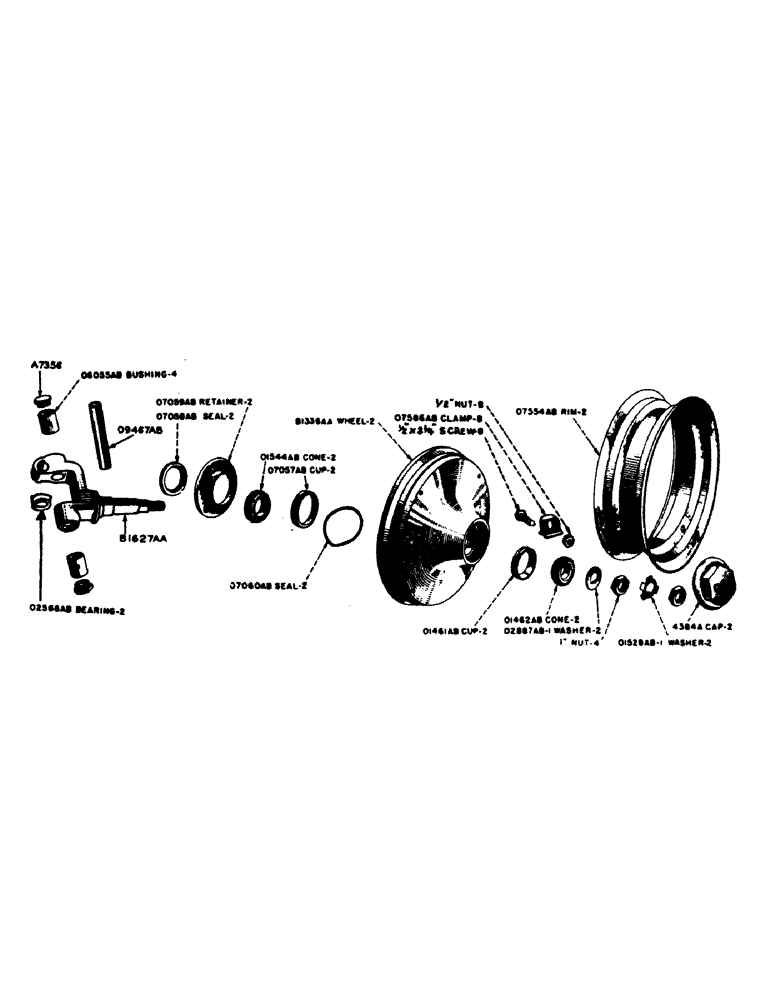

Запчасти Case IH 700 (177) - FRONT WHEEL AND SPINDLE FOR PNEUMATIC TIRES, FOR ORCHARD TRACTORS (06) - POWER TRAIN

A7356

PLUG

steering spindle

4шт.

4384A

X

CAP, front wheel hub

2шт.

D4933A

WHEEL (use B1336AA)

1шт.

C1046AA

WHEEL, front, complete (consists of 1 - B1336AA wheel, 4 - 07586AB clamps, 1 - 07554AB rim and 4 - 1/2" x 3-1/4" N.F. hex bolts w/hex nuts) (for 6.00-16 or 7.50-16 tires) (machy. item)

2шт.

B1336AA

WHEEL, front, with 01461AB and 07057AB bearing cups

2шт.

B1627AA

SPINDLE, front wheel steering, with 2 - 06055AB bushings, 01528AB1 lockwasher, 02887AB1 washer, 1" N.F. hex jam nut and 1/8" str. Lincoln fitting

2шт.

O1461AB

X

CUP, front wheel outer bearing (Timken no. 14274)

2шт.

O1462AB

X

CONE, front wheel outer bearing (Timken no. 14125)

2шт.

O1528AB1

X

LOCKWASHER, steering spindle

2шт.

O1544AB

X

CONE, front wheel inner bearing (Timken no. 358)

2шт.

O2566AB

X

BEARING, thrust, front axle (Timken no. T-126)

2шт.

O2887AB1

X

WASHER, steering spindle

2шт.

O6055AB

BUSHING, front wheel spindle

4шт.

O7057AB

X

CUP, front wheel inner bearing (Timken no. 354A)

2шт.

O7058AB

X

SEAL, front wheel

2шт.

O7059AB

X

RETAINER, front wheel seal

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" N.C. flat ctsk. hd. machine screw

10шт.

O7554AB

RIM, front wheel (4.50E-16 full drop center, without drive lugs) (for 6.00-16 or 7.50-16 tires)

2шт.

O7586AB

X

CLAMP, front wheel rim

8шт.

NSS

NOT SOLD SEPARAT

1/2" x 3-1/4" N.F. hex bolt w/hex nut

8шт.

O9467AB

PIN, king, front axle

2шт.

O10021AB

X

SEAL, front wheel retainer

2шт.
