Запчасти Case IH 700 (176) - FRONT AXLE AND RADIUS ROD, FOR ORCHARD TRACTORS (06) - POWER TRAIN

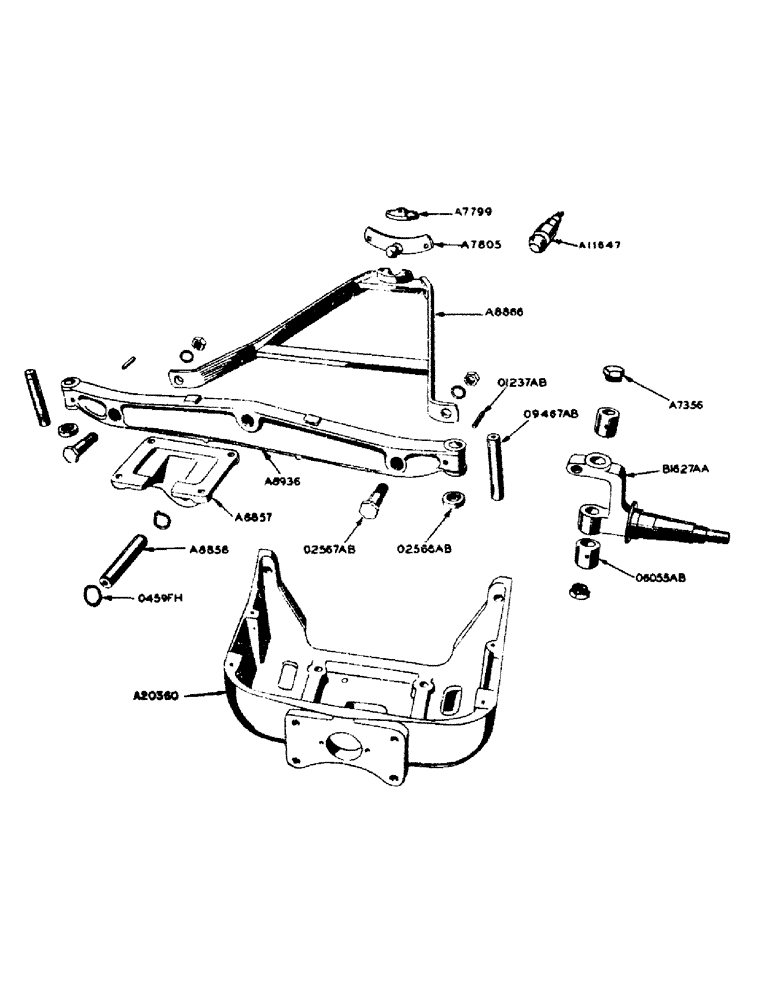

Схема запчастей Case IH 700 - (176) - FRONT AXLE AND RADIUS ROD, FOR ORCHARD TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A7356

PLUG

steering spindle

4шт.

A7799

X

CAP, radius rod ball socket

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 3-3/4" N.F. hex bolt w/hex nut and lockwasher

2шт.

NSS

NOT SOLD SEPARAT

1/8" Str. Lincoln fitting no. 5000

1шт.

A7805

BALL, radius rod pivot, with support

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2" N.F. hex bolt w/hex nut and lockwasher

2шт.

A8857

PEDESTAL, front axle

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.C. hex. bolt w/lockwasher

4шт.

A8858

PIN, front axle pivot

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

A8866

ROD

radius, front axle

1шт.

A8936

AXLE, front

1шт.

A11647

X

BALL, radius rod pivot (800 - 4 wheel tractors)

1шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut and lockwasher

1шт.

A20360

BRACKET, radiator

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 2" N.C. hex bolt w/lockwasher

4шт.

B1627AA

SPINDLE, front wheel steering, with 2 - 06055AB bushings, 01528AB1 lockwasher, 02887AB1 washer, 1" N.F. hex. jam nut and 1/8" str. Lincoln fitting

2шт.

O1237AB

X

LOCK, front axle king pin

2шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut

2шт.

NSS

NOT SOLD SEPARAT

1/2" Std. lockwasher

2шт.

O2566AB

X

BEARING, thrust, front axle (Timken no. T-126)

2шт.

O2567AB

X

BOLT, radius rod front

2шт.

NSS

NOT SOLD SEPARAT

1" N.F. hex nut

2шт.

NSS

NOT SOLD SEPARAT

1" Shakeproof ext. tooth lockwasher no. 1136-00

2шт.

O6055AB

BUSHINGS, front wheel spindle

4шт.

O9467AB

PIN, king, front axle

2шт.

O459FH

X

SNAP RING, front axle pivot pin

2шт.

Выбрано товаров: 27
