Запчасти Case IH 700 (174) - FRONT WHEEL AND SPINDLE FOR PNEUMATIC TIRES, FOR STANDARD 4-WHEEL TRACTORS (06) - POWER TRAIN

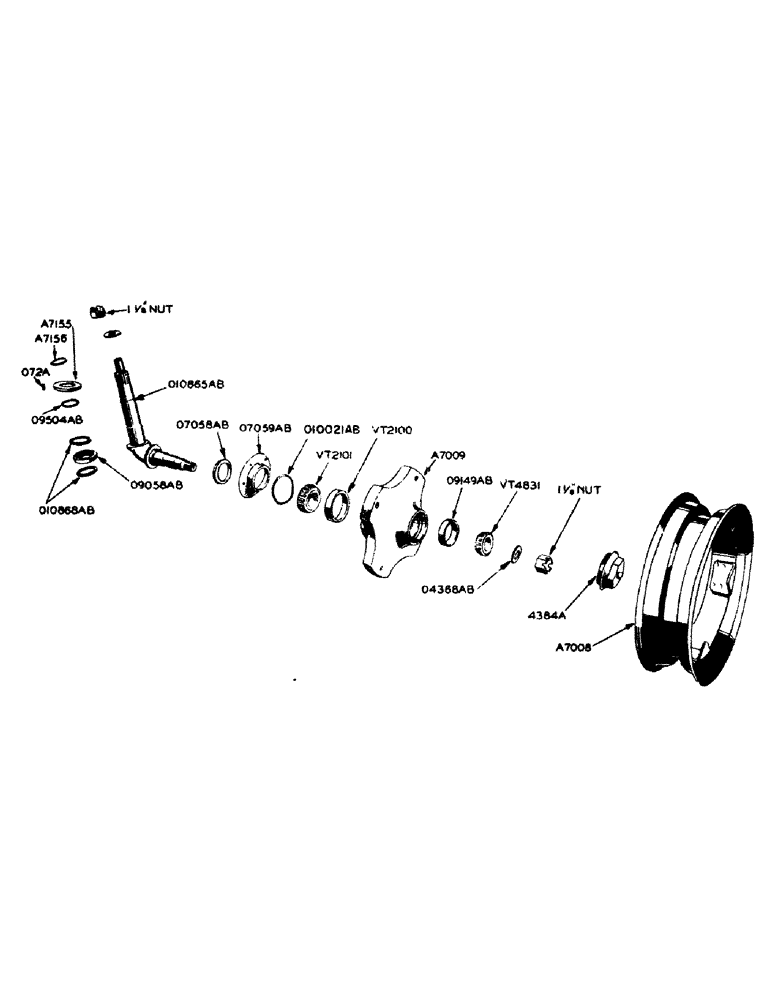

Схема запчастей Case IH 700 - (174) - FRONT WHEEL AND SPINDLE FOR PNEUMATIC TIRES, FOR STANDARD 4-WHEEL TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A7008

RIM

front wheel, with clamps (4.25KA-16) (for 6.00-16 4 ply tires)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.F. hex bolt w/hex nut and lockwasher

8шт.

A7009

SPARE PART

WHEEL, front, with 09149AB and VT2100 bearing cups

2шт.

A7155

SHIELD

dust, front wheel spindle

2шт.

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING, front wheel spindle dust shield

2шт.

A7395

RIM, front wheel, with clamps (5.50F-16) (for 7.50-16 4 or 6 ply tires)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.F. hex bolt w/hex nut and lockwasher

8шт.

A7929

WHEEL (use A7931)

1шт.

A7930

RIM, front wheel, with clamps (5.50F-20 for A7931 wheel for 7.50-20 6 ply tires)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.F. hex bolt w/hex nut and lockwasher

8шт.

A7931

WHEEL

front, with 09149AB and VT2100 bearing cups, for 7.50-20 6 ply tires

2шт.

4384A

X

CAP, front wheel hub

2шт.

6485A

WHEEL, front (use A7009)

1шт.

O72A

DOWEL PIN, front wheel spindle dust shield

2шт.

O4368AB

X

WASHER, front wheel spindle

2шт.

O7058AB

X

SEAL, front wheel

2шт.

O7059AB

X

RETAINER, front wheel seal

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" N.C. flat ctsk. hd. machine screw

10шт.

O9058AB

X

BEARING, thrust, front wheel spindle (Timken no. T-199)

2шт.

O9149AB

X

CUP, front wheel outer bearing (Timken no. 25820)

2шт.

O9150AB

X

CONE, front wheel outer bearing (Timken no. 25878) (use VT4831)

1шт.

O9504AB

X

OIL SEAL, front wheel spindle, upper

2шт.

O10021AB

X

SEAL, front wheel retainer

2шт.

O10865AB

SPINDLE, front wheel

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. hex castle nut

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. light thick slotted nut

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" plain washer

2шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-3/4" cotter pin

4шт.

O10868AB

X

WASHER, thrust, front wheel spindle

4шт.

VT2100

X

CUP, front wheel inner bearing (Timken no. 25520)

2шт.

VT2101

X

CONE, front wheel inner bearing (Timken no. 25580)

2шт.

VT4831

X

CONE, front wheel outer bearing (Timken no. 25877)

2шт.

Выбрано товаров: 32
