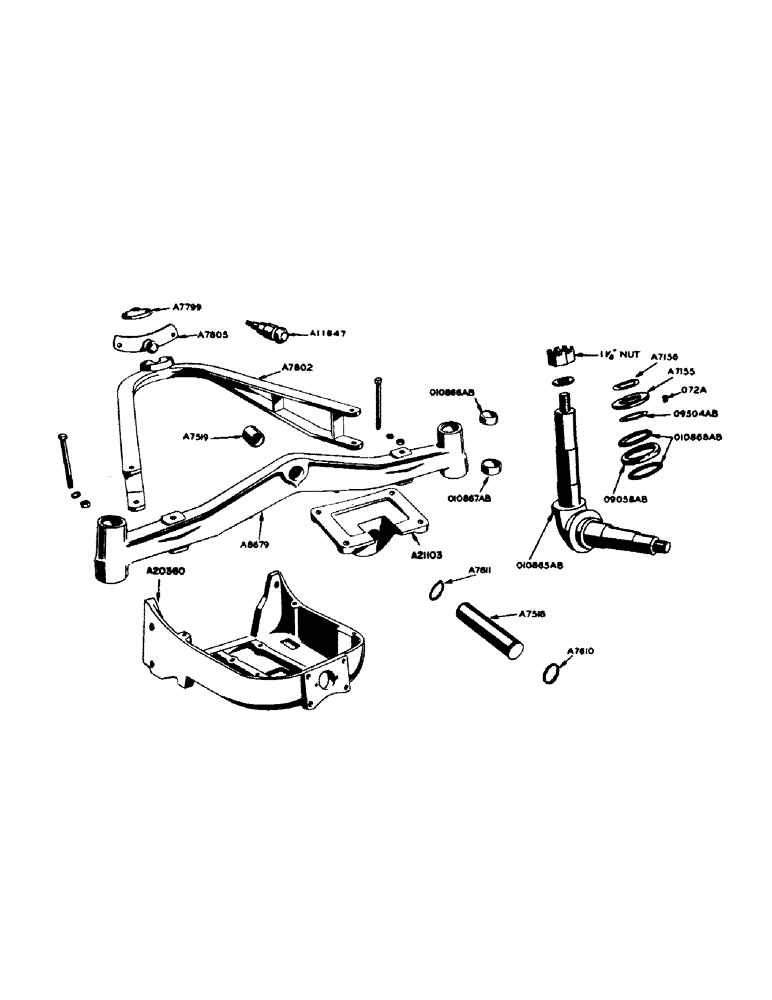

Запчасти Case IH 700 (173) - FRONT AXLE AND RADIUS ROD, FOR STANDARD 4-WHEEL TRACTORS (06) - POWER TRAIN

A7155

SHIELD

dust, front wheel spindle

2шт.

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING, front wheel spindle dust shield

2шт.

A7518

PIN, front axle pivot

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

A7519

X

BUSHING, front axle pivot pin

1шт.

A7610

RING, SNAP

SNAP RING, front axle pivot pin, front

1шт.

A7611

SNAP RING,#175, Ext

Ring, Snap, , front axle pivot pin, rear #175, Ext

1шт.

A7799

X

CAP, radius rod ball socket

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 3-3/4" N.F. hex bolt w/hex nut and lockwasher

2шт.

NSS

NOT SOLD SEPARAT

1/8" Str. Lincoln fitting no. 5000

1шт.

A7802

ROD, radius

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 6" N.F. hex bolt w/hex nut and lockwasher

2шт.

A7805

BALL, radius rod pivot, with support

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2" N.F. hex bolt w/hex nut and lockwasher

2шт.

A8351

ARBOR, for pressing in 010867AB needle bearings into front axle

1шт.

A8354

ARBOR, for pressing 010866AB needle bearing into front axle

1шт.

A8679

AXLE, front, with 1 - A7519 bushing

1шт.

A11647

X

BALL, radius rod pivot (800 - 4 wheel tractors)

1шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. hex nut and lockwasher

1шт.

A20360

BRACKET, radiator

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 2" N.C. hex bolt w/lockwasher

4шт.

A21103

PEDESTAL, front axle

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex bolt w/lockwasher

4шт.

O72A

DOWEL PIN, front wheel spindle dust shield

2шт.

O9058AB

X

BEARING, thrust, front wheel spindle (Timken no. T-199)

2шт.

O9504AB

X

OIL SEAL, front wheel spindle, upper

2шт.

O10865AB

SPINDLE, front wheel

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. hex castle nut

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. light thick slotted nut

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" plain washer

2шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-3/4" cotter pin

4шт.

O10866AB

X

BEARING, needle, front wheel spindle, upper (Torrington no. B-2816)

2шт.

O10867AB

X

BEARING, needle, front wheel spindle, lower (Torrington no. B-3216-OH)

2шт.

O10868AB

X

WASHER, thrust, front wheel spindle

4шт.
