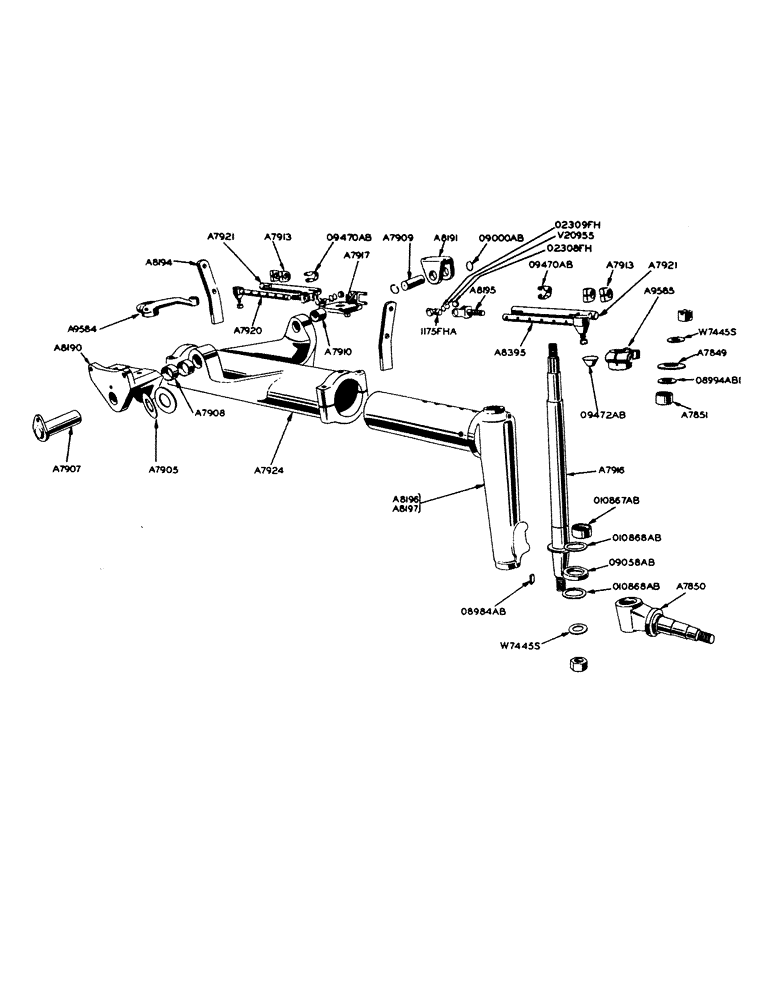

Запчасти Case IH 700 (170) - FRONT AXLE, FOR HIGH CLEARANCE TRACTORS (06) - POWER TRAIN

A7849

GUARD

SHIELD, dust, vertical spindle

2шт.

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING, needle, vertical spindle, upper (Torrington no. B-2416-OH)

2шт.

A7904

HOUSING (use A7924)

1шт.

A7905

WASHER, thrust, front axle pivot pin

2шт.

A7907

PIN, front axle pivot, front

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

A7908

BUSHING

front axle front pivot pin

2шт.

A7909

PIN, pivot, front axle, rear

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

A7910

BUSHING, front axle rear pivot pin

1шт.

A7913

CLAMP, front axle notched tie rod

4шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/4" N.F. hex bolt w/hex nut and lockwasher

4шт.

A7916

SPINDLE, vertical, for wheel

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. hex nut

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. hex castle nut

2шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-3/4" Cotter pin

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" Std. lockwasher

2шт.

A7917

ARM, steering

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.F. hex bolt

4шт.

NSS

NOT SOLD SEPARAT

5/8" Shakeproof ext. tooth lockwasher #1128-00

4шт.

A7920

TIE ROD, front axle, notched, R.H.

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

1шт.

A7921

TUBE, front axle tie rod

2шт.

A7924

HOUSING, front axle, with 2 - A7908 and 1 - A7910 bushings

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 6" N.F. hex bolt w/hex nut and lockwasher

4шт.

NSS

NOT SOLD SEPARAT

3/4" x 8" N.F. hex bolt w/hex nut and lockwasher

2шт.

A8190

PEDESTAL, front axle, front

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.C. hex bolt w/lockwasher

4шт.

A8191

PEDESTAL, front axle, rear

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.C. hex bolt w/lockwasher

2шт.

A8192

HOUSING (use A8196)

1шт.

A8193

HOUSING (use A8197)

1шт.

A8194

STOP, front axle pivot

2шт.

NSS

NOT SOLD SEPARAT

3/4" x 1-3/4" N.C. hex bolt w/lockwasher

4шт.

A8195

YOKE END, adjustable tie rod

2шт.

A8196

AXLE, outer section, R.H.

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

1шт.

A8197

AXLE, outer section, L.H.

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

1шт.

A8395

TIE ROD, front axle, notched, L.H.

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1-1/4" cotter pin

1шт.

A9584

ARM, front wheel steering, R.H., with 1 - 1/2" x 3" N.F. hex bolt, nut and lockwasher

1шт.

A9585

SPARE PART

ARM, front wheel steering, L.H., with 1 - 1/2" x 3" N.F. hex bolt, nut and lockwasher

1шт.

O8984AB

X

KEY, vertical spindle (#129 Woodruff hardened key)

2шт.

O8994AB1

X

OIL SEAL, vertical spindle

2шт.

O9000AB

X

SNAP RING, front axle rear pivot pin

2шт.

O9058AB

X

BEARING, thrust, vertical spindle (Timken no. T-199)

2шт.

O9470AB

CLAMP, tie rod tube

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/4" N.F. hex bolt w/hex nut and lockwasher

2шт.

O9472AB

X

SEAL, rubber, dust cover, for tie rod socket

2шт.

O10867AB

X

BEARING, needle, vertical spindle, lower (Torrington no. B-3216-OH)

2шт.

O10868AB

X

WASHER, thrust, vertical spindle

4шт.

W-7445-S

WASHER, vertical spindle

4шт.

1175FHA

X

CROSS, center, tie rod universal joint, complete (consists of center cross with 4 - V20955 snap rings, 4 - 02308FH bushings, 4 - 02309FH cork washers and 1 - #5300 Lincoln fitting 1/8" - 67-1/2 deg.)

2шт.
