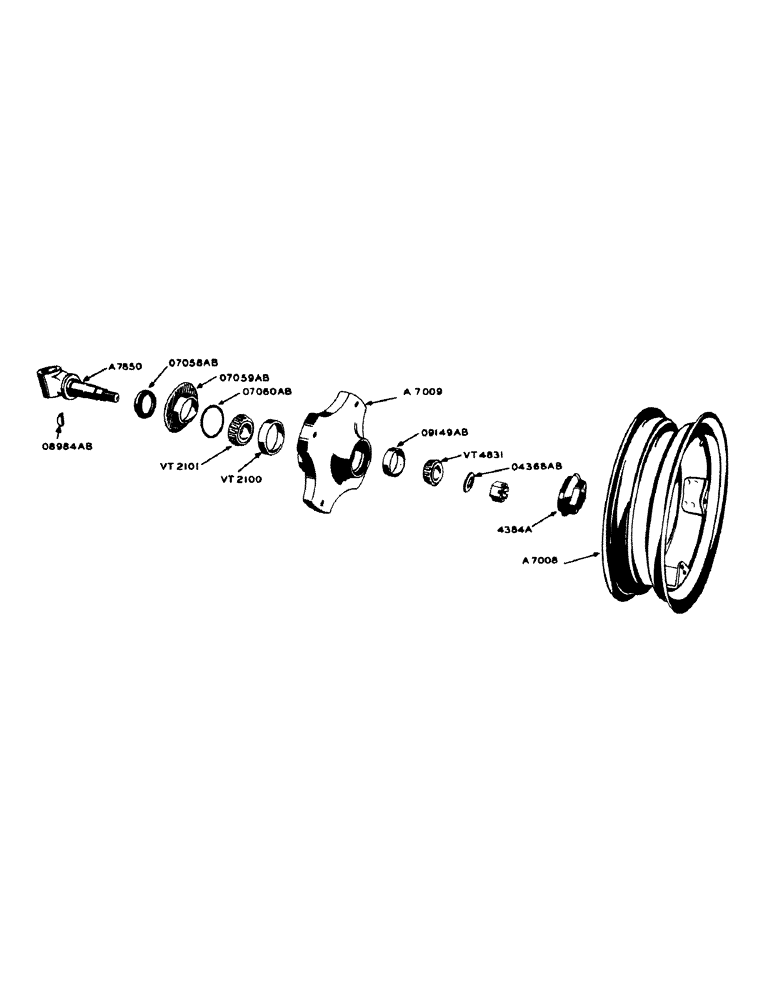

Запчасти Case IH 700 (168) - FRONT WHEELS FOR GENERAL PURPOSE, TRACTORS WITH ADJUSTABLE FRONT AXLE (06) - POWER TRAIN

A7008

RIM

front wheel, with clamps (4.25-KA-16) (for 6.00 - 16 4 ply tires)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.F. hex bolt with hex nut and lockwasher

8шт.

A7009

SPARE PART

WHEEL, front, with 09149AB and VT2100 bearing cups

2шт.

A7395

RIM, front wheel, with clamps (5.50 F-16) (for 7.50 - 16 tires)

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.F. hex bolt with hex nut and lockwasher

8шт.

A7850

SPINDLE, front wheel

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. hex castle nut

2шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-3/4" cotter pin

2шт.

4384A

X

CAP, front wheel hub

2шт.

6485A

WHEEL, (use A7009)

1шт.

O4368AB

X

WASHER, front wheel spindle

2шт.

O7058AB

X

SEAL, front wheel

2шт.

O7059AB

X

RETAINER, front wheel seal

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 5/8" N.C. flat hd. mach. screw

10шт.

O8984AB

X

KEY, vertical spindle

2шт.

O9149AB

X

CUP, front wheel outer bearing (Timken no. 25820)

2шт.

O10021AB

X

SEAL, front wheel retainer

2шт.

VT2100

X

CUP, front wheel inner bearing (Timken no. 25520)

2шт.

VT2101

X

CONE, front wheel inner bearing (Timken no. 25580)

2шт.

VT4831

X

CONE, front wheel outer bearing (Timken no. 25877)

2шт.
