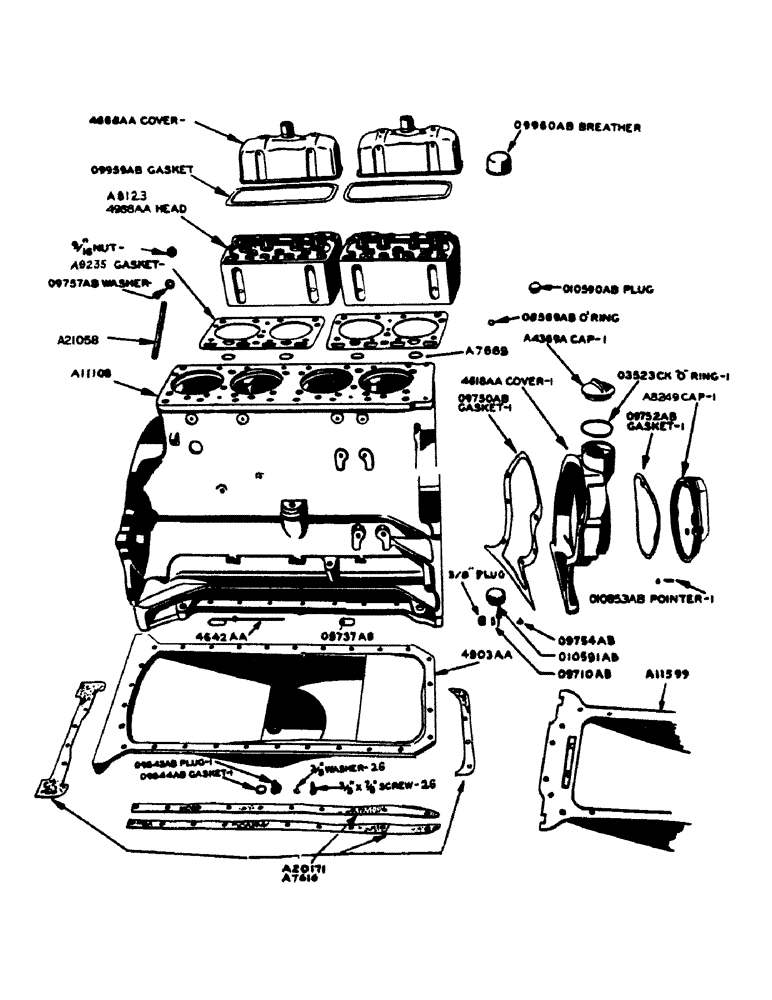

Запчасти Case IH 700 (006) - POWRDYNE GAS ENGINE, CYLINDER HEAD CYLINDER BLOCK AND OIL PAN (02) - ENGINE
№
Артикул
Название
Примечание
Количество
13-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
(for A7532 conduit) Hex, 5/16"-18 x 1/2", G5, Full Thd
2шт.
41-38
PLUG
WELCH PLUG, 2-3/8" for camshaft hole in block
1шт.
A7509
PLUG
WELCH PLUG, 1-3/8" for cylinder block (stainless steel)
1шт.
A7532
CONDUIT, fastens to cylinder block for wires
1шт.
A7616
GASKET KIT
GASKETS, set of oil pan (model 700)
1шт.
A7625
COVER, magneto bracket opening
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 1-1/8" N.C. hex bolt w/lockwasher
3шт.
A7669
RING
rubber, for A9235 cylinder head gasket
4шт.
A7750
HEAD, cylinder (use A8123)
1шт.
A8123
HEAD, cylinder, with valve guides and inserts (for low cost fuel) (see A8933)
2шт.
A8493
HEAD, cylinder with valve guides and inserts (for gasoline at high altitudes and LP - gas)
2шт.
A8500
HEAD, cylinder (use A8493)
1шт.
A8932
HEAD, cylinder (use A8933)
1шт.
A8933
HEAD, cylinder, with valve guides and inserts (for low cost fuel at high altitudes) (see A8123)
2шт.
A9235
CYLINDER HEAD GASKET
cylinder head
2шт.
A11108
BLOCK, cylinder with bearing caps, camshaft bushings and plugs (see A22505)
1шт.
NSS
NOT SOLD SEPARAT
1/8" slotted hd. pipe plug
3шт.
NSS
NOT SOLD SEPARAT
3/8" ctsk. headless pipe plug
4шт.
NSS
NOT SOLD SEPARAT
1" ctsk. headless pipe plug
1шт.
A11111
BLOCK, cylinder (use A11108)
1шт.
A11599
Oil pan and baffle plate (model 800)
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 7/8" N.C. hex bolt w/lockwasher
20шт.
A20171
GASKET
S, set of oil pan and converter seal plate (model 800)
1шт.
A21058
BOLT
cylinder head
18шт.
NSS
NOT SOLD SEPARAT
9/16" N.F. hex nut
18шт.
A22505
BLOCK, stripped engine (consists of cylinder block, pistons, sleeves, rings, connecting rods, crankshaft and bearings. Does not include camshaft, valve lifters, cylinder heads, valve mechanism, etc.)
1шт.
6530A
HEAD, cylinder, for gasoline (use 4968AA)
1шт.
4642AA
X
GAUGE, lube oil level, with felt washer
1шт.
4668AA
COVER, cylinder head
2шт.
4903AA
PAN, oil (model 700)
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 7/8" N.C. hex bolt with lockwasher
26шт.
4968AA
HEAD, cylinder, w/valve guides and inserts (for gasoline) (see A8493)
2шт.
O8569AB
X
"O" RING, in cylinder head gasket for oil passage
2шт.
O8861AB
X
"O" RING, magneto bracket opening cover
1шт.
O9737AB
SOCKET, lube oil level gauge
1шт.
O9738AB
WASHER, felt, lube oil level gauge
1шт.
O9739AB
X
VALVE, water drain, for cylinder block (1/4" P.T.) (on oil filter base)
1шт.
O9757AB
X
WASHER, cylinder head stud
18шт.
O9843AB
X
PLUG, drain, oil pan magnetic
1шт.
O9844AB
X
GASKET, oil pan drain plug
1шт.
O9959AB
X
GASKET, cylinder head cover
2шт.
O9960AB
X
BREATHER, cylinder head cover
2шт.
O10590AB
X
WELCH PLUG, cylinder head (1-5/8") (stainless steel)
4шт.
O10591AB
X
WELCH PLUG, cylinder block (1-13/16") (stainless steel)
1шт.
A8249
CAP, timing gear cover, with thrust button
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 3/4" N.C. hex hd. bolt w/lockwasher, timing gear cover
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 1-1/8" N.C. hex hd. bolt w/lockwasher, timing gear cover
3шт.
A4369A
CAP, oil filler, timing gear cover
1шт.
6316A
COVER, timing gear (use 4618AA)
1шт.
6473A
CAP, timing gear cover (use A8249)
1шт.
4618AA
COVER, timing gear, with 09708AB oil seal, dowel pin and thrust button
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 1" N.C. hex bolt w/lockwasher, timing gear cover
2шт.
NSS
NOT SOLD SEPARAT
3/8" x 2-1/2" N.C. hex bolt w/lockwasher, timing gear cover
8шт.
O9710AB
PIN, dowel, timing gear cover
2шт.
O9750AB
X
GASKET, timing gear cover
1шт.
O9752AB
X
GASKET, timing gear cover cap
1шт.
O9754AB
BUTTON, thrust, timing gear cover and cover cap
2шт.
O10853AB
POINTER, timing, gear cover
1шт.
NSS
NOT SOLD SEPARAT
1/4" x 1/2" N.C. hex bolt, timing gear cover
2шт.
NSS
NOT SOLD SEPARAT
1/4" no. 4014-20 shakeproof external-internal tooth lockwasher, timing gear cover
2шт.
O3523CK
X
"O" RING, for A4369A oil filler cap, timing gear cover
1шт.
Выбрано товаров: 61
