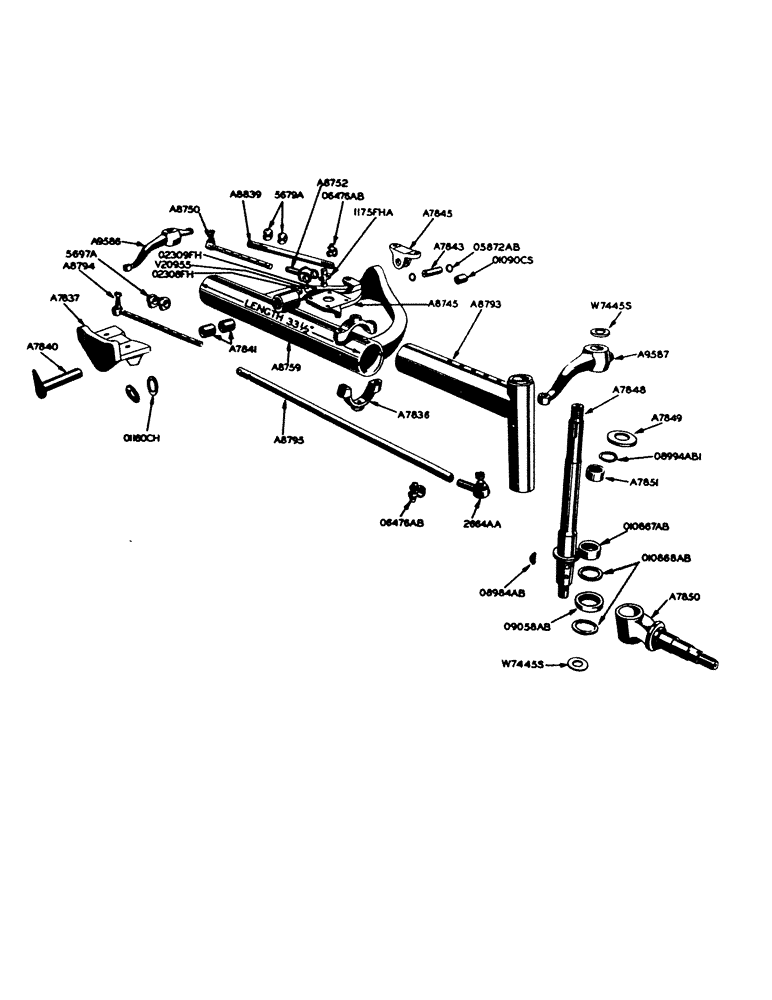

Запчасти Case IH 700 (164) - ADJUSTABLE FRONT AXLE, 48" TO 73" TREAD, FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

A7836

CLAMP, front axle tube

4шт.

NSS

NOT SOLD SEPARAT

5/8" x 4-1/2" N.F. hex bolt with hex nut and lockwasher

4шт.

NSS

NOT SOLD SEPARAT

5/8" x 7" N.F. hex bolt with hex nut and lockwasher

2шт.

A7837

PEDESTAL, front axle

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" N.C. hex bolt with lockwasher

4шт.

A7840

PIVOT PIN

PIN, pivot, front

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" N.C. hex bolt with lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

A7841

BUSHING,31.75mm ID x 38.18mm OD x 38.35mm L

front axle pivot pin

2шт.

A7843

PIN

radius rod pivot

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

A7845

SUPPORT, radius rod, rear

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" N.C. hex bolt with lockwasher

2шт.

A7848

SPINDLE, wheel, vertical

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. hex castle nut

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. hex nut

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" Std. lockwasher

2шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-3/4" cotter pin

2шт.

A7849

GUARD

SHIELD, dust, for vertical spindle

2шт.

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING, needle, vertical spindle, upper (Torrington no. B-2416-OH)

2шт.

A8346

ARBOR, for pressing in A7851 needle bearing

1шт.

A8745

ARM, steering

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.F. hex bolt

4шт.

NSS

NOT SOLD SEPARAT

5/8" Shakeproof ext. tooth lockwasher #1128-00

4шт.

A8750

LINK

drag, front axle notched

1шт.

NSS

NOT SOLD SEPARAT

1/8" Str. Lincoln fitting no. 5000

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

A8752

YOKE

END, drag link

1шт.

A8757

ROD, radius (use A8759)

1шт.

A8759

AXLE, center section, with radius rod, includes A7841 and 01090CS bushings

1шт.

A8793

AXLE, outer section

2шт.

NSS

NOT SOLD SEPARAT

1/8" straight Lincoln fitting no. 5000

2шт.

A8794

ROD

TIE ROD, front axle notched

1шт.

NSS

NOT SOLD SEPARAT

1/8" straight Lincoln fitting no. 5000

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

A8795

TUBE, notched tie rod

1шт.

A8839

TUBE, notched drag link

1шт.

A9586

ARM, steering, R.H., with 5/8" x 3-1/2" N.F. hex bolt, nut and lockwasher

1шт.

A9587

ARM, steering, L.H., with 1/2" x 3" N.F. hex bolt, nut and lockwasher

1шт.

5697A

X

CLAMP, tie rod tube, R.H., and drag link tube outer

4шт.

NSS

NOT SOLD SEPARAT

7/16" x 2" N.F. hex bolt with hex nut and lockwasher

4шт.

2664AA

X

END, notched tie rod

1шт.

NSS

NOT SOLD SEPARAT

1/8" straight Lincoln fitting no. 5000

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

O5872AB

X

SNAP RING, radius rod pivot pin

2шт.

O6476AB

X

CLAMP, tie rod tube L.H., and drag link tube inner

2шт.

O8984AB

X

KEY, vertical spindle (no. 129 Woodruff hardened)

2шт.

O8994AB1

X

OIL SEAL, vertical spindle

2шт.

O9058AB

X

BEARING, thrust, for vertical spindle (Timken no. T-199)

2шт.

O10867AB

X

BEARING, needle, vertical spindle lower (Torrington no. B-3216-OH)

2шт.

O10868AB

X

WASHER, thrust, for vertical spindle

4шт.

O1160CH

X

WASHER, thrust, front axle pivot pin

2шт.

O1090CS

X

BUSHING, radius rod rear pivot pin

1шт.

W7445S

WASHER (2-9/16" O.D. x 1-3/16" I.D. x 3/16") - vertical spindle

4шт.

1175FHA

X

CROSS, center, drag link universal joint, complete (consists of center cross with 4 - V20955 snap rings, 4 - 02308FH bushings, 4 - 02309FH cork washers and 1 - #5300 Lincoln fitting 1/8" - 67 1/2 deg.)

1шт.
