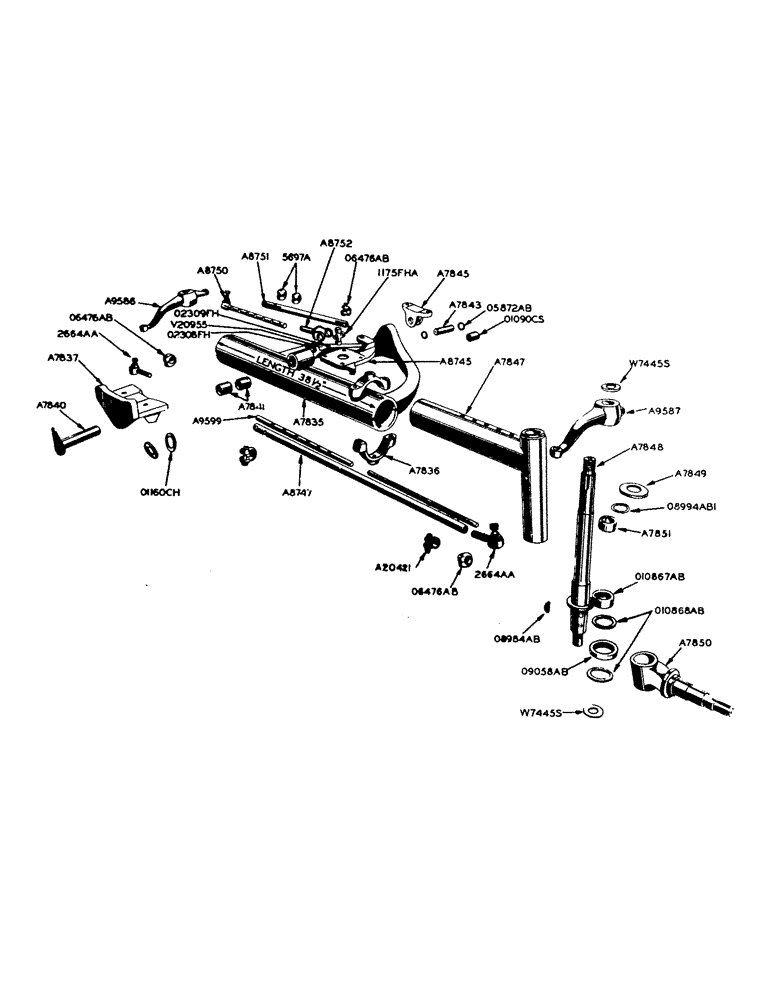

Запчасти Case IH 700 (162) - ADJUSTABLE FRONT AXLE, 53" TO 82" TREAD, FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

A7834

ROD, radius (use A7835)

1шт.

A7835

AXLE, center section, with radius rod (includes A7841 and 01090CS bushings)

1шт.

A7836

CLAMP, front axle tube

4шт.

NSS

NOT SOLD SEPARAT

5/8" x 4-1/2" N.F. hex bolt w/hex nut and lockwasher

4шт.

NSS

NOT SOLD SEPARAT

5/8" x 7" N.F. hex bolt w/hex nut and lockwasher

2шт.

A7837

PEDESTAL, front axle

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" N.C. hex bolt w/lockwasher

4шт.

A7840

PIVOT PIN

PIN, pivot, front

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" N.C. hex bolt w/lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

A7841

BUSHING,31.75mm ID x 38.18mm OD x 38.35mm L

front axle pivot pin

2шт.

A7843

PIN

radius rod pivot

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

A7845

SUPPORT, radius rod, rear

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" N.C. hex bolt w/lockwasher

2шт.

A7847

AXLE, outer section

2шт.

NSS

NOT SOLD SEPARAT

1/8" Str. Lincoln fitting no. 5000

2шт.

A7848

SPINDLE, wheel, vertical

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. hex castle nut

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. hex nut

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" Std. lockwasher

2шт.

NSS

NOT SOLD SEPARAT

3/16" x 1-3/4" cotter pin

2шт.

A7849

GUARD

SHIELD, dust, for vertical spindle

2шт.

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING, needle, vertical spindle upper (Torrington no. B-2416-OH)

2шт.

A8346

ARBOR, for pressing in A7851 needle bearing

1шт.

A8745

ARM, steering

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.F. hex bolt

4шт.

NSS

NOT SOLD SEPARAT

5/8" Shakeproof ext. tooth lockwasher #1128-00

4шт.

A8746

TUBE, notched tie rod, front (use A9599)

1шт.

A8747

TUBE

notched tie rod connector

1шт.

A8749

X

TIE ROD, complete (consists of 2 - 2664AA ends, 2 - 06476AB clamps, 2 - A9599 tubes, 1 - A8747 tube, 2 - A20421 clamps, 2 - 7/16" x 2-1/2" N.F. hex bolt w/nut and lockwasher, 2 - 1/8" 90 deg. #5400 Lincoln fittings and 2 - 1/8" x 1" cotter pins)

1шт.

A8750

LINK

drag, front axle notched

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting no. 5000

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

1шт.

A8751

TUBE, notched drag link, rear

1шт.

A8752

YOKE

END, drag link

1шт.

A9586

ARM, steering, R.H., with 5/8" x 3-1/2" N.F. hex bolt, nut and lockwasher

1шт.

A9587

ARM, steering, L.H., with 1/2" x 3" N.F. hex bolt, nut and lockwasher

1шт.

A9599

HYD CONNECTOR

TIE ROD, front axle notched

2шт.

A20421

CLAMP

notched tie rod connector tube

2шт.

NSS

NOT SOLD SEPARAT

7/16" x 2-1/2" N.F. hex bolt w/hex nut and lockwasher

2шт.

A26139

CLAMP

drag link tube, outer (Replaces 5697A)

2шт.

NSS

NOT SOLD SEPARAT

7/16" x 2" N.F. hex bolt w/hex nut and lockwasher

2шт.

2664AA

X

END, notched tie rod

2шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

2шт.

NSS

NOT SOLD SEPARAT

1/8" x 1" cotter pin

2шт.

O5872AB

X

SNAP RING, radius rod piovt pin

2шт.

O6476AB

X

CLAMP, tie rod tube and drag link tube inner

3шт.

O8984AB

X

KEY, vertical spindle (no. 129 Woodruff hardened)

2шт.

O8994AB1

X

OIL SEAL, vertical spindle

2шт.

O9058AB

X

BEARING, thrust, for vertical spindle (Timken no. T-199)

2шт.

O10867AB

X

BEARING, needle, vertical spindle lower (Torrington no. B3216-OH)

2шт.

O10868AB

X

WASHER, thrust, for vertical spindle

4шт.

O1160CH

X

WASHER, thrust, front axle pivot pin

2шт.

O1090CS

X

BUSHING, radius rod rear pivot pin

1шт.

W7445S

WASHER (2-9/16" O.D. x 1-3/16" I.D. x 3/16") vertical spindle

4шт.

1175FHA

X

CROSS, center, drag link universal joint, complete (consists of center cross with 4 - V20955 snap rings, 4 - 02308FH bushings, 4 - 02309FH cork washers and 1 - #5300 Lincoln fitting 1/8" - 67 1/2 deg.)

1шт.
