Запчасти Case IH 700 (160) - STEEL FRONT WHEEL, FOR GENERAL PURPOSE AND STANDARD 4-WHEEL TRACTORS (06) - POWER TRAIN

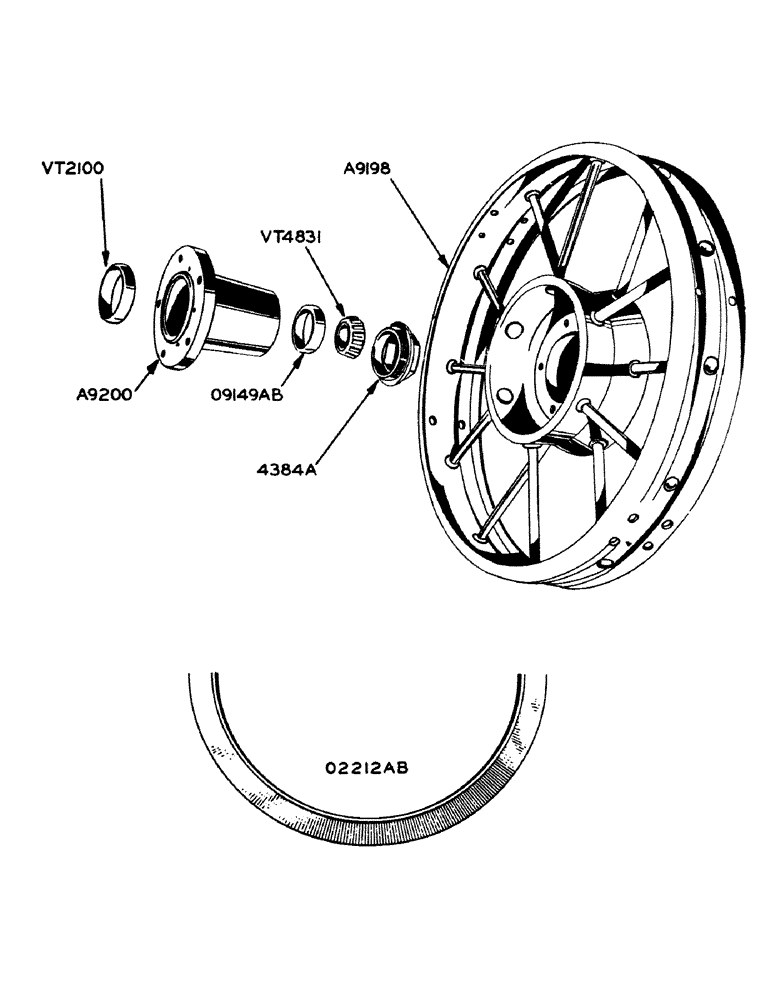

Схема запчастей Case IH 700 - (160) - STEEL FRONT WHEEL, FOR GENERAL PURPOSE AND STANDARD 4-WHEEL TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A9198

WHEEL, front, steel (5" x 28")

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 2" N.C. hex bolt w/lockwasher

10шт.

A9199

HUB (use A9200)

1шт.

A9200

HUB, front wheel, with 09149AB and VT2100 bearing cups

2шт.

O9149AB

X

CUP, front wheel outer bearing (Timken no. 25820)

2шт.

VT2100

X

CUP, front wheel inner bearing (Timken no. 25520)

2шт.

194AA

RINGS, set of front wheel skid, 3" high (set consist of 4 - 02212AB rings, 16 - 1/2" x 1-1/4" mach. bolts w/hex nut and lockwashers) (machy. item), steel

1шт.

O2212AB

RING, skid, front wheel (3" high, half ring, 2 required per wheel) (see 194AA), steel

4шт.

Выбрано товаров: 8
