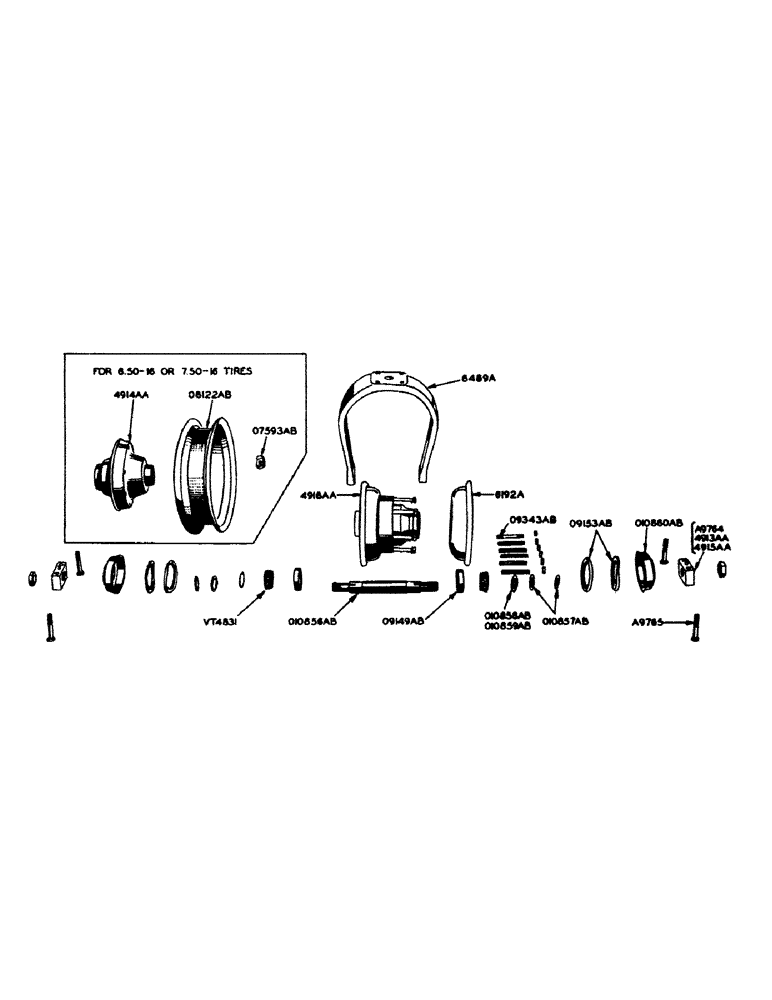

Запчасти Case IH 700 (159) - SINGLE FRONT WHEEL, FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

A9764

BLOCK AND PIN, fork extension, for 7.50 - 16 tire

2шт.

A9765

BOLT, fork extension block, for 7.50 - 16 tire

4шт.

NSS

NOT SOLD SEPARAT

9/16" std. lockwasher

4шт.

6192A

FLANGE, single front wheel, for 9.00 - 10 tire

1шт.

6488A

WHEEL (use 4914AA)

1шт.

6489A

FORK, single front wheel

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.F. hex bolt w/hex nut

4шт.

NSS

NOT SOLD SEPARAT

5/8" Shakeproof external lockwasher #1128-00

4шт.

6502A

WHEEL (use 4916AA)

1шт.

4913AA

BLOCK AND PIN, fork extension, for 6.50 - 16 tire

2шт.

NSS

NOT SOLD SEPARAT

9/16" x 4" N.F. hex bolt w/lockwasher

4шт.

4914AA

WHEEL, front, with 2-09149AB bearing cups, for 6.00 - 16 8 - ply tires and 7.50 - 16 10 - ply tires

1шт.

NSS

NOT SOLD SEPARAT

1/8" str. Lincoln fitting #5000

1шт.

4915AA

BLOCK AND PIN, fork extension, for 9.00 - 10 tire

2шт.

NSS

NOT SOLD SEPARAT

9/16" x 3-1/4" N.F. hex bolt w/lockwasher

4шт.

4916AA

WHEEL, front, with 2 - 09149AB cups, 6 - 09343AB studs and 1-1/8" str. Lincoln fitting #5000, for 9.00 - 10 8 - ply tires

1шт.

O7593AB

X

CLAMP, front wheel rim, for 6.50 - 16 and 7.50 - 16 tires

6шт.

NSS

NOT SOLD SEPARAT

1/2" x 3-1/2" N.F. hex bolt w/hex nut

6шт.

O8122AB

RIM, 5.50F - 16 full drop center, for 6.50 - 16 and 7.50 - 16 tires

1шт.

O9149AB

X

CUP, front wheel bearing (Timken no. 25820)

2шт.

O9153AB

X

WASHER, felt, front wheel hub

4шт.

O9343AB

SUTD, front wheel flange for 9.00 - 10 tire

6шт.

NSS

NOT SOLD SEPARAT

1/2" N.F. heavy hex nut

6шт.

NSS

NOT SOLD SEPARAT

1/2" std. lockwasher

6шт.

O10856AB

SHAFT, single front wheel

1шт.

NSS

NOT SOLD SEPARAT

1-1/8" N.F. hex jam nut

2шт.

NSS

NOT SOLD SEPARAT

1-1/8" Std. lockwasher

2шт.

O10857AB

WASHER, axle shaft

4шт.

O10858AB

X

SHIM, axle shaft (.003")

1шт.

O10859AB

SHIM, axle shaft (.005")

1шт.

O10860AB

X

RETAINER, felt

2шт.

VT4831

X

CONE, front wheel bearing (Timken no. 25877)

2шт.
