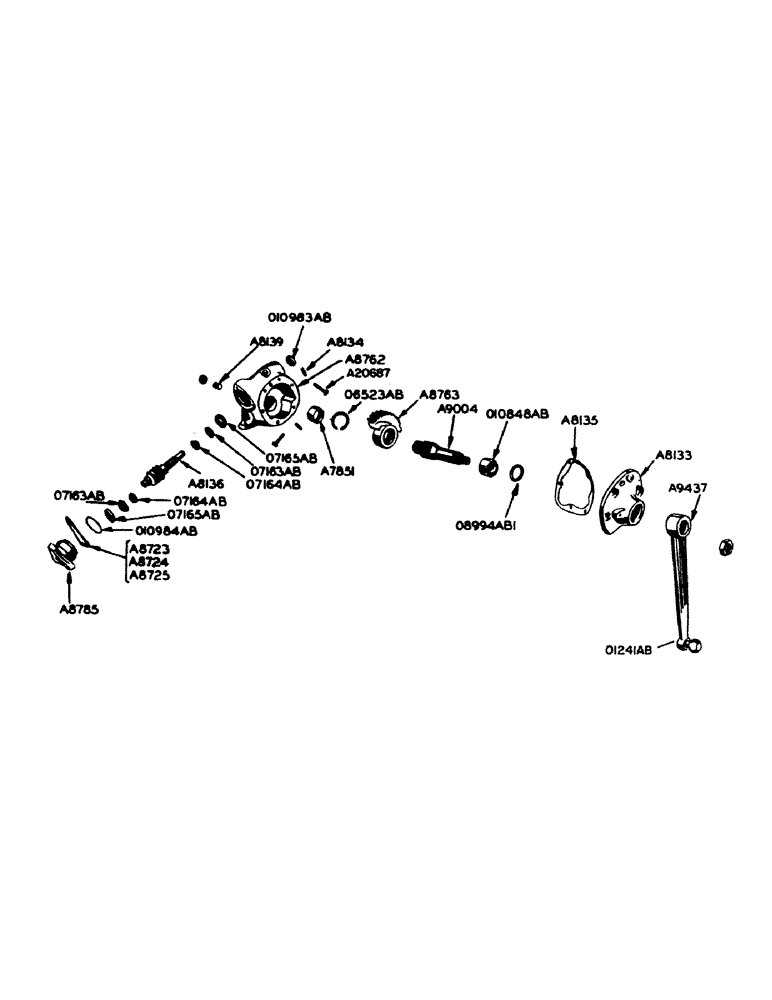

Запчасти Case IH 700 (147) - MECHANICAL STEERING GEAR, FOR STANDARD 4-WHEEL AND ORCHARD TRACTORS (06) - POWER TRAIN

A7075

GASKET

GASKET, steering worm shaft (rubber)

1шт.

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

BEARING, needle, steering drop arm shaft, short (Torrington no. B-2416-OH)

1шт.

A8133

COVER, steering gear housing

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/8" N.C. hex bolt w/lockwasher

6шт.

A8134

PIN

dowel, steering gear housing cover

2шт.

A8135

GASKET

steering gear housing cover

1шт.

A8136

SHAFT, steering worm

1шт.

NSS

NOT SOLD SEPARAT

No. 11 Woodruff key

1шт.

A8139

X

SCREW, adjusting, steering drop arm shaft

1шт.

NSS

NOT SOLD SEPARAT

3/4" N.F. hex jam nut

1шт.

A8346

ARBOR, for pressing A7851 needle bearing into steering gear housing

1шт.

A8355

ARBOR, for pressing 010848AB needle bearing in A8133 housing cover

1шт.

A8723

SHIM,.003" Thk

Steering worm shaft brg. carrier .003" Thk

4шт.

A8724

SHIM, steering worm shaft bearing carrier (.005")

3шт.

A8725

SHIM,.010" Thk

Steering worm shaft brg. carrier .010" Thk

4шт.

A8762

HOUSING, steering gear

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.C. hex bolt w/lockwasher

3шт.

NSS

NOT SOLD SEPARAT

1/2" sq. hd. pipe plug

1шт.

A8763

GEAR, steering worm (used with A8762 housing)

1шт.

A8785

CARRIER, steering worm shaft bearing

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" N.C. hex bolt w/lockwasher

3шт.

A9004

SHAFT, steering drop arm

1шт.

NSS

NOT SOLD SEPARAT

1" MARSDEN LOCKNUT, light jam - N.F. thrd.

1шт.

NSS

NOT SOLD SEPARAT

1" plain washer

1шт.

A9437

ARM, steering drop, with 01241AB ball (for std. 4-wheel tractors)

1шт.

A11557

GASKET

GASKET, steering worm adjusting screw (use with A20687)

2шт.

A20687

X

SCREW, adjusting, for A8763 worm gear

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 N.C. locknut

2шт.

O1241AB

BALL, steering drop arm

1шт.

O6523AB

X

SNAP RING, steering drop arm shaft, to hold worm gear

1шт.

O7163AB

X

ROLLER ASSEMBLY, steering gear bearing (Timken no. 11BC)

2шт.

O7164AB

X

CONE, steering gear bearing (Timken no. 12CB)

2шт.

O7165AB

X

CUP, steering gear bearing (Timken no. 13C)

2шт.

O8994AB1

X

OIL SEAL, steering drop arm shaft

1шт.

O10848AB

X

BEARING, needle, steering drop arm shaft, long (Torrington no. B-2420-OH)

1шт.

O10983AB

X

OIL SEAL, steering worm shaft

1шт.

O10984AB

X

"O" RING, steering worm shaft bearing carrier

1шт.
