Запчасти Case IH 700 (146) - MECHANICAL STEERING GEAR, FOR GENERAL PURPOSE AND HIGH CLEARANCE TRACTORS (06) - POWER TRAIN

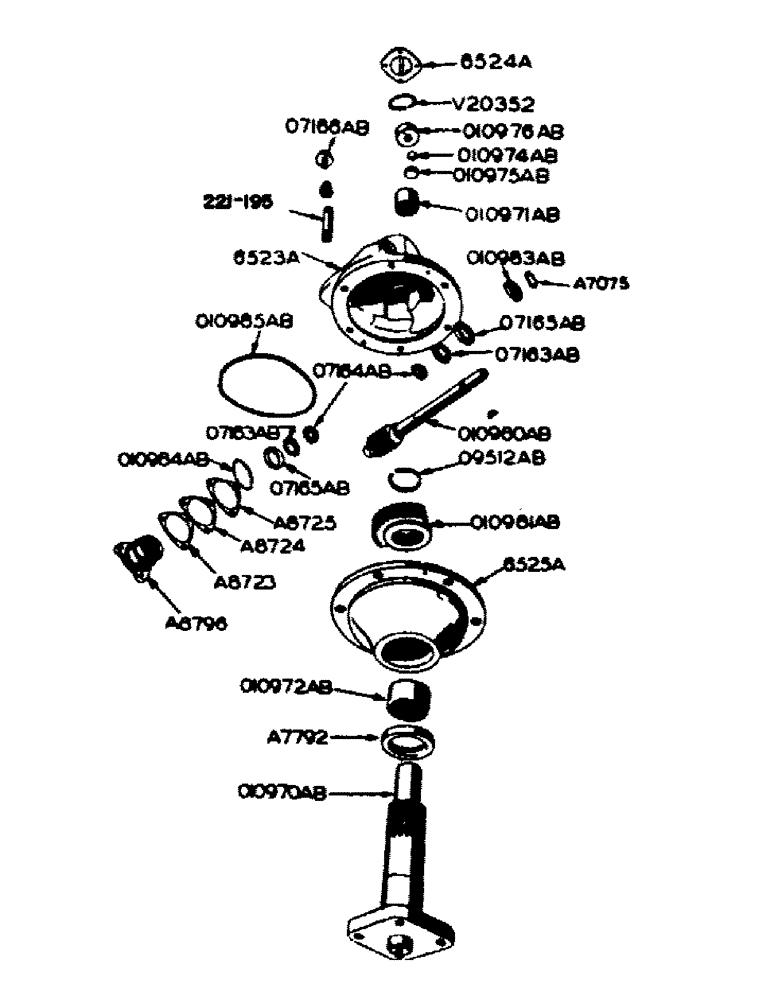

Схема запчастей Case IH 700 - (146) - MECHANICAL STEERING GEAR, FOR GENERAL PURPOSE AND HIGH CLEARANCE TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A7075

GASKET

GASKET, rubber, steering worm shaft

1шт.

A7792

X

OIL SEAL, steering upper spindle

1шт.

A8352

ARBOR, for pressing in 010972AB needle bearing into 6525A

1шт.

A8723

SHIM,.003" Thk

Steering worm shaft brg. carrier .003" Thk

4шт.

A8724

SHIM, steering worm shaft bearing carrier (.005")

3шт.

A8725

SHIM,.010" Thk

Steering worm shaft brg. carrier .010" Thk

4шт.

A8796

CARRIER, steering worm shaft bearing

1шт.

6523A

HOUSING, steering gear

1шт.

NSS

NOT SOLD SEPARAT

1/8" - 90 deg. Lincoln fitting no. 5400

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/2" N.C. hex bolt with lockwasher

2шт.

6524A

COVER, steering gear housing, top

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 7/8" N.C. hex bolt with lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/8" sq. hd. pipe plug

1шт.

6525A

HOUSING, steering upper spindle support

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex bolt with lockwasher

6шт.

NSS

NOT SOLD SEPARAT

1/4" sq. hd. pipe plug

1шт.

O7163AB

X

ROLLER ASSEMBLY, steering gear bearing (Timken no. 11BC)

2шт.

A7164AB

CONE, steering gear bearing (Timken no. 12CB)

2шт.

O7165AB

X

CUP, steering gear bearing (Timken no. 13C)

2шт.

O7166AB

X

BREATHER, steering gear housing

1шт.

O9512AB

X

SNAP RING, steering upper spindle (.109")

1шт.

O10970AB

SPINDLE, steering, upper section (1-9/16" spline)

1шт.

O10971AB

BEARING, ROLLER

BEARING, needle, steering upper spindle (small) (Torrington #B-2824)

1шт.

O10972AB

X

BEARING, needle, steering upper spindle (large) (Torrington #NB-37)

1шт.

O10974AB

X

BALL, thrust, steering upper spindle (1" dia.)

1шт.

O10975AB

SADDLE, steering upper spindle thrust ball

1шт.

O10976AB

PLUG, steering upper spindle thrust ball retaining

1шт.

O1980AB

WORM AND SHAFT, steering

1шт.

NSS

NOT SOLD SEPARAT

No. 11 Woodruff key

1шт.

O10981AB

GEAR, steering worm

1шт.

O10983AB

X

OIL SEAL, steering worm shaft

1шт.

O10984AB

X

"O" RING, steering worm shaft bearing carrier

1шт.

O10985AB

X

"O" RING, steering gear housing

1шт.

221-195

PIPE,Nipple, 1/2" NPT x 4 1/2"

NIPPLE, breather, steering gear housing (1/2" x 4'1/8" std. black pipe)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1/4" std. pipe reducing coupling

1шт.

V20352

SCREW

"O" RING, steering gear housing top cover

1шт.

Выбрано товаров: 36
