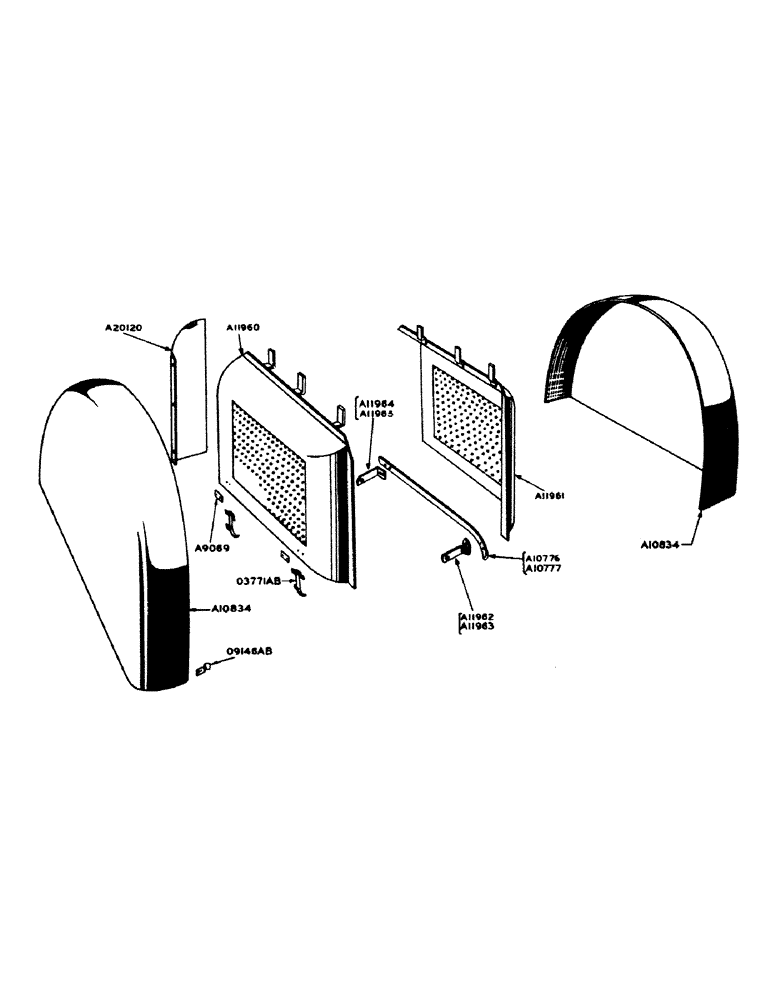

Запчасти Case IH 700 (143) - HOOD SIDES AND WHEEL ENCLOSURE, FOR ORCHARD TRACTORS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A8567
BRACE, tie, fender extension, rear
4шт.
NSS
NOT SOLD SEPARAT
3/8" x 1-1/4" N.C. carr. bolt w/hex nut and lockwasher
4шт.
NSS
NOT SOLD SEPARAT
3/8" x 1-1/4" N.F. hex bolt w/hex nut and lockwasher
4шт.
A9069
REINFORCEMENT, hood latch
4шт.
A10776
BAR, hood side mounting, R.H. w/clips
1шт.
A10777
BAR, hood side mounting, L.H. w/clips
1шт.
A10834
ENCLOSURE, side, fender
2шт.
NSS
NOT SOLD SEPARAT
1/2" x 1-1/2" N.F. hex bolt w/hex nut and lockwasher
4шт.
A11960
HOOD SIDE, R.H., with clips
1шт.
A11961
HOOD SIDE, L.H., with clips
1шт.
A11962
SUPPORT, hood side mounting bar front, R.H.
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 1" N.C. truss hd. mach. screw w/hex nut (zinc plated)
1шт.
NSS
NOT SOLD SEPARAT
3/8" Shakeproof ext.-int. tooth lockwasher #4020-26
1шт.
NSS
NOT SOLD SEPARAT
3/4" x 2-1/4" N.C. hex bolt
1шт.
A11963
SUPPORT, hood side mounting bar front, L.H.
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 1" N.C. truss hd. mach. screw w/hex nut (zinc plated)
1шт.
NSS
NOT SOLD SEPARAT
3/8" Shakeproof ext.-int. tooth lockwasher #4020-26
1шт.
NSS
NOT SOLD SEPARAT
3/4" x 2-1/4" N.C. hex bolt
1шт.
A11964
SUPPORT, hood side mounting bar rear, R.H.
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 1" N.C. truss hd. mach. screw w/hex nut (zinc plated)
2шт.
NSS
NOT SOLD SEPARAT
3/8" Shakeproof ext.-int. tooth lockwasher #4020-26
2шт.
NSS
NOT SOLD SEPARAT
1/2" x 3" N.C. hex bolt
1шт.
A11965
SUPPORT, hood side mounting bar rear, L.H.
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 1" N.C. truss hd. mach. screw w/hex nut (zinc plated)
2шт.
NSS
NOT SOLD SEPARAT
3/8" Shakeproof ext.-int. tooth lockwasher #4020-26
2шт.
A20120
BAFFLE, hood side, R.H.
1шт.
O3771AB
X
LATCH, hood side
4шт.
NSS
NOT SOLD SEPARAT
#10-32 x 1/2" N.F. rhd. mach. screw w/nut and lockwasher
8шт.
O9146AB
CLAMP, fender extension
6шт.
NSS
NOT SOLD SEPARAT
5/16" x 3/4" N.C. truss hd. mach. screw (zinc plated) w/lockwasher and nut
12шт.
Выбрано товаров: 30
