Запчасти Case IH 700 (142) - FENDERS FOR ORCHARD TRACTORS (06) - POWER TRAIN

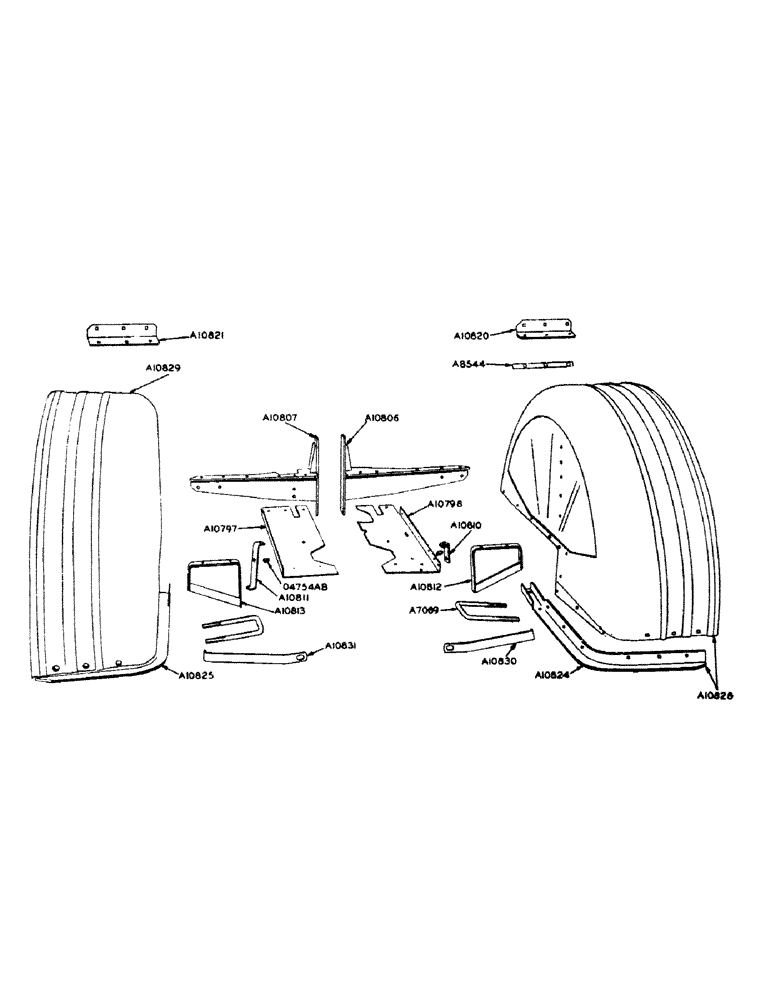

Схема запчастей Case IH 700 - (142) - FENDERS FOR ORCHARD TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A7069

ARM

"U" BOLT, fender support

2шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex nut and lockwasher

4шт.

A8544

REINFORCEMENT, front bracket

2шт.

A10797

PLATFORM, L.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher

5шт.

A10798

PLATFORM, R.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher

4шт.

A10806

SUPPORT, platform and fender, R.H.

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.C. hex bolt and lockwasher

4шт.

A10807

SUPPORT, platform and fender, front

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" N.C. hex bolt and lockwasher

4шт.

A10810

SUPPORT, platform intermediate, R.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 5" N.C. hex bolt w/lockwasher

1шт.

A10811

SUPPORT, platform intermediate, L.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher

1шт.

A10812

SUPPORT, platform, R.H., rear

1шт.

A10813

SUPPORT, platform, L.H., rear

1шт.

A10820

SUPPORT, fender, front, R.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher

1шт.

A10821

SUPPORT, fender, front, L.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher

3шт.

A10824

SUPPORT, fender, R.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher

6шт.

A10825

SUPPORT, fender, L.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher

6шт.

A10828

FENDER, R.H., w/support

1шт.

A10829

FENDER, L.H., w/support

6шт.

A10830

BRACE, fender tie, R.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher

1шт.

A10831

BRACE, fender tie, L.H.

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. carr. bolt w/hex nut and lockwasher

1шт.

O4754AB

SPACER, platform intermediate support

1шт.

Выбрано товаров: 33
