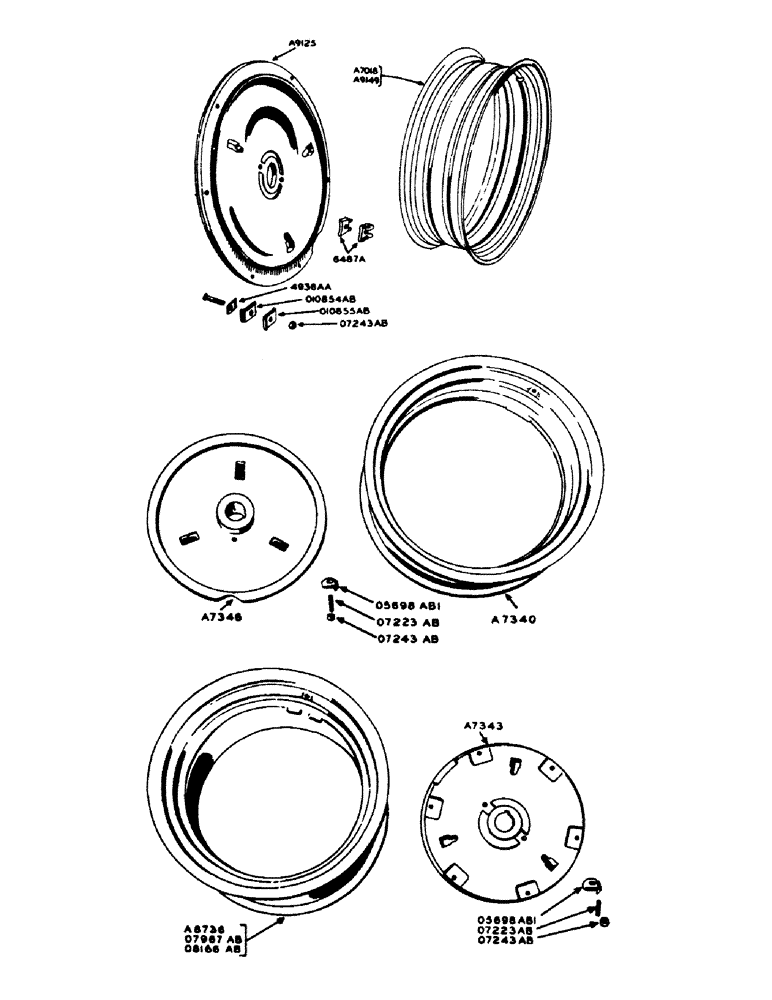

Запчасти Case IH 700 (136) - PNEUMATIC REAR WHEELS, FOR STANDARD 4-WHEEL AND ORCHARD TRACTORS (06) - POWER TRAIN

A7018

SPARE PART

RIM, W12-30 double bead drop center, for A9125 rear wheel (for 13-30 tires)

2шт.

A7340

RIM, DW16-30 wide base deep well, with drivers (used with A7346 wheel for 15-30 6 ply tires) (for std. 4-wheel models)

2шт.

A7343

WHEEL, rear, for 13-26 or 14-26 6 ply tires for Orchard models and 18-26 8 ply tires for std. 4-wheel models

2шт.

A7346

WHEEL, rear, for 15-30 6 ply tires (std. 4-wheel models)

2шт.

A8736

RIM, DW20-26 drop center, with drivers (used with A7343 wheel for 18-26 8 ply tires) (std. 4-wheel)

2шт.

A9125

WHEEL, rear, for 13-30, 14-30 and 15-30 6 ply tires for double beaded rims (for std. 4-wheel models)

2шт.

A9149

RIM, W14-30 double bead drop center (used with A9125 wheel for 14-30 or 15-30 6 ply tires) (std. 4-wheel)

2шт.

6487A

X

CLAMP, rim drive, for A7018 and A9149 rims

8шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" N.C. hex bolt

4шт.

4936AA

LUG, locking, rim clamp bolt

8шт.

O5698AB1

X

CLAMP, rear wheel rim

12шт.

O7223AB

X

STUD, rear wheel rim

12шт.

O7243AB

X

NUT, rear wheel rim stud

12шт.

O7967AB

RIM, DW12-26 Goodyear wide base deep well, with drivers (used with A7343 wheel for 13-26 or 14-26 6 ply tires) (for Orchard models)

2шт.

O8166AB

RIM, Goodyear DW16-26 drop center, with drivers (used with A7343 wheel for 14-26 6 ply tires) (for Orchard models)

2шт.

O10854AB

X

CLAMP, rim mounting, male (std. 4-wheel)

8шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" N.C. hex bolt

8шт.

O10855AB

X

CLAMP, rim mounting, female (std. 4-wheel)

8шт.
