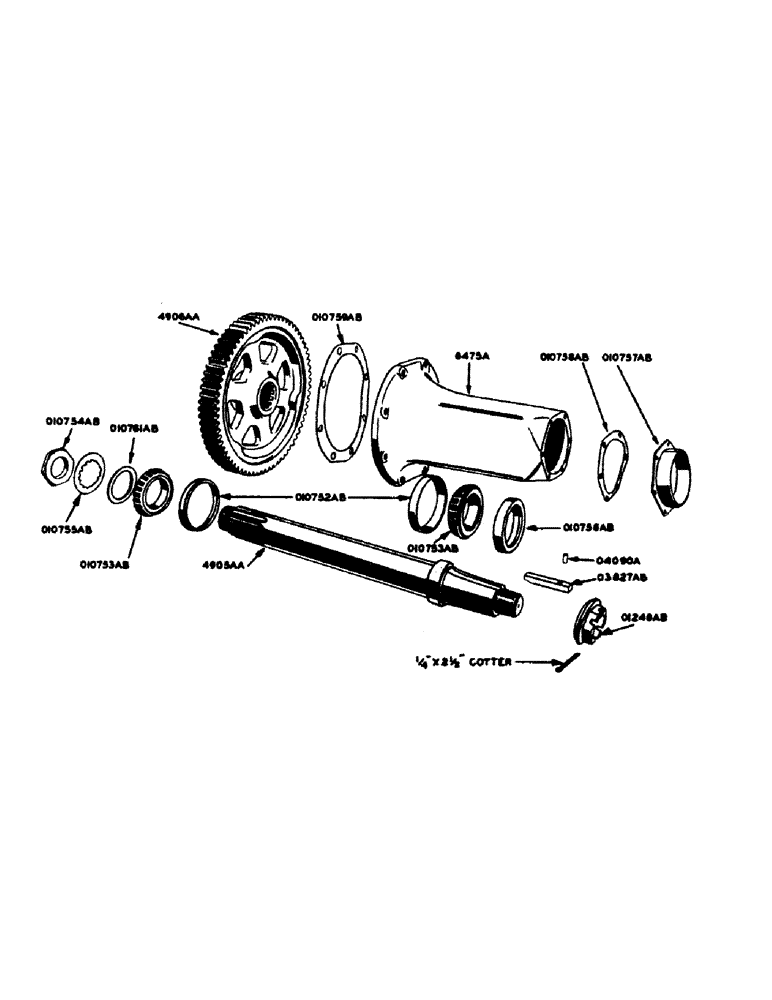

Запчасти Case IH 700 (135) - REAR AXLE, FOR STANDARD 4-WHEEL TRACTORS (06) - POWER TRAIN

6475A

X

HOUSING, rear axle

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.C. hex bolt with lockwasher

12шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex bolt with lockwasher

4шт.

6476A

HUB (use 4906AA)

1шт.

O4090A

DOWEL PIN, rear wheel to axle key

2шт.

4905AA

SHAFT, rear axle, with collar

2шт.

4906AA

GEAR, ring, rear axle, with hub

2шт.

O1246AB

NUT, on rear axle, for rear wheel

2шт.

NSS

NOT SOLD SEPARAT

1/4" x 2-1/2" COTTER PIN

2шт.

O3827AB

X

KEY, rear, Serial Range: wheel-axle

2шт.

O10752AB

X

CUP, rear axle shaft bearing (Timken no. 492-A)

4шт.

O10753AB

X

CONE, rear axle shaft bearing (Timken no. 495-AS)

4шт.

O10754AB

LOCK NUT, rear axle, for ring gear hub

2шт.

O10755AB

X

LOCKWASHER, rear axle, for ring gear hub

2шт.

O10756AB

X

OIL SEAL, rear axle

2шт.

O10757AB

X

GUARD, dust, rear axle

2шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.C. hex bolt with lockwasher

12шт.

O10758AB

X

GASKET, rear axle dust guard

2шт.

O10759AB

X

GASKET, rear axle housing

2шт.

O10761AB

WASHER, thrust, rear axle gear

2шт.
