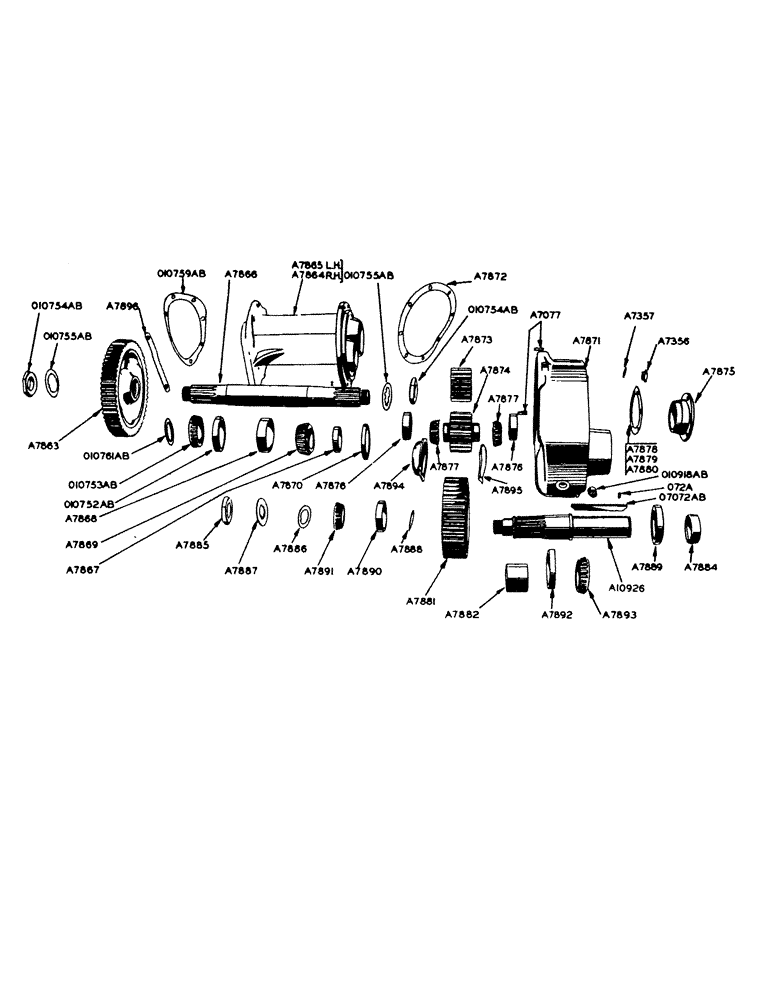

Запчасти Case IH 700 (130) - UPPER AND LOWER REAR AXLES AND HOUSINGS FOR HIGH CLEARANCE TRACTORS (06) - POWER TRAIN

A7077

DOWEL

PIN, rear axle housing

4шт.

A7862

HUB (use A7863)

1шт.

A7863

RING GEAR, rear axle, with hub

2шт.

A7864

HOUSING, rear axle, R.H.

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" N.C. hex bolt w/lockwasher

8шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.C. hex bolt w/lockwasher

6шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex bolt w/lockwasher (for platform)

2шт.

NSS

NOT SOLD SEPARAT

3/4" x 2-1/4" N.C. hex bolt w/lockwasher

2шт.

A7865

HOUSING, rear axle, L.H.

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-3/4" N.C. hex bolt w/lockwasher

8шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.C. hex bolt w/lockwasher

6шт.

NSS

NOT SOLD SEPARAT

5/8" x 2-1/4" N.C. hex bolt w/lockwasher (for platform)

2шт.

NSS

NOT SOLD SEPARAT

3/4" x 2-1/4" N.C. hex bolt w/lockwasher

2шт.

A7866

SHAFT, rear axle, upper

2шт.

A7867

COLLAR, upper rear axle shaft, outer

2шт.

A7868

BEARING

CUP, upper rear axle shaft bearing, outer (Timken no. 5735)

2шт.

A7869

CONE, upper rear axle shaft bearing, outer (Timken no. 5795)

2шт.

A7870

OIL SEAL

upper rear axle shaft, outer

2шт.

A7873

PINION, upper rear axle final drive

2шт.

A7874

GEAR, upper rear axle final drive idler

2шт.

A7875

CARRIER, upper rear axle idler gear bearing

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" N.C. hex bolt w/lockwasher

12шт.

A7876

GASKET

CUP, bearing, rear axle final drive idler gear (Timken no. 59412)

4шт.

A7877

CONE, bearing, rear axle final drive idler gear (Timken no. 59200)

4шт.

A7878

SHIM, rear axle idler gear bearing carrier (.003")

1шт.

A7879

SHIM, rear axle idler gear bearing carrier (.005")

1шт.

A7880

SHIM, rear axle idler gear bearing carrier (.010")

3-8шт.

A7896

GASKET, lower, upper housing

2шт.

O10752AB

X

CUP, upper rear axle shaft inner bearing (Timken no. 492-A)

2шт.

O10753AB

X

CONE, upper rear axle shaft inner bearing (Timken no. 495-AS)

2шт.

O10754AB

LOCK NUT, upper rear axle

4шт.

O10755AB

X

LOCKWASHER, upper rear axle

4шт.

O10759AB

X

GASKET, upper rear axle housing

2шт.

O10761AB

WASHER, thrust, rear axle gear

2шт.

A7356

PLUG

oil filler, lower rear axle housing, and upper, for high clearance tractors

2шт.

A7357

GASKET, lower rear axle housing oil filler plug, and upper, for high clearance tractors

2шт.

A7871

HOUSING, lower rear axle, and upper, for high clearance tractors

2шт.

A7872

GASKET

lower rear axle housing, and upper, for high clearance tractors

2шт.

A7881

GEAR, rear axle final drive, upper and lower, and housing, for high clearance tractors

2шт.

A7882

SPACER, rear axle final drive gear, upper and lower, and housing, for high clearance tractors

2шт.

A7884

COLLAR, lower rear axle shaft, and upper, and housing, for high clearance tractors

2шт.

A7885

LOCK NUT, lower rear axle shaft, and upper, and housing, for high clearance tractors

2шт.

A7886

WASHER, lower rear axle shaft, and upper, and housing, for high clearance tractors

2шт.

A7887

LOCKWASHER, lower rear axle shaft, and upper, and housing, for high clearance tractors

2шт.

A7888

RING, SNAP

SNAP RING, on lower rear axle shaft, for drive gear, and upper, and housing, for high clearance tractors

2шт.

A7889

SEAL

OIL SEAL, lower rear axle shaft, outer, and upper, and housing, for high clearance tractors

2шт.

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP, bearing, lower rear axle shaft, inner (Timken no. 3920), and upper, and housing, for high clearance tractors

2шт.

A7891

ROLLER BEARING

CONE, bearing, lower rear axle shaft, inner (Timken no. 3982), and upper, and housing, for high clearance tractors

2шт.

A7892

BEARING, CUP

CUP, bearing, lower rear axle shaft, outer (Timken no. 493), and upper, and housing, for high clearance tractors

2шт.

A7893

ROLLER BEARING,3.375" ID x 1.172"

CONE, bearing, lower rear axle shaft, outer (Timken no. 497), and upper, and housing, for high clearance tractors

2шт.

A7894

CAP, lower rear axle final drive housing, and upper, for high clearance tractors

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. hex bolt w/lockwasher, upper and lower rear axles and housing for high clearance tractors

10шт.

NSS

NOT SOLD SEPARAT

1/8" hex socket hd. pipe plug, upper and lower rear axles and housing for high clearance tractors

2шт.

A7895

GASKET

lower rear axle final drive housing cap, and upper, for high clearance tractors

2шт.

A10926

SHAFT, rear axle, lower, and upper, and housing, for high clearance tractors

2шт.

O72A

DOWEL PIN, rear wheel key, upper and lower rear axles and housing for high clearance tractors

2шт.

O7072AB

KEY, rear wheel, upper and lower rear axles and housing for high clearance tractors

2шт.

O10918AB

PLUG, sq. hd. pipe, 1" Lisle magnetic, for lower rear axle housing, and upper, for high clearance tractors

2шт.
