Запчасти Case IH 700 (129) - PNEUMATIC REAR WHEEL, FOR GENERAL PURPOSE AND HIGH CLEARANCE TRACTORS (06) - POWER TRAIN

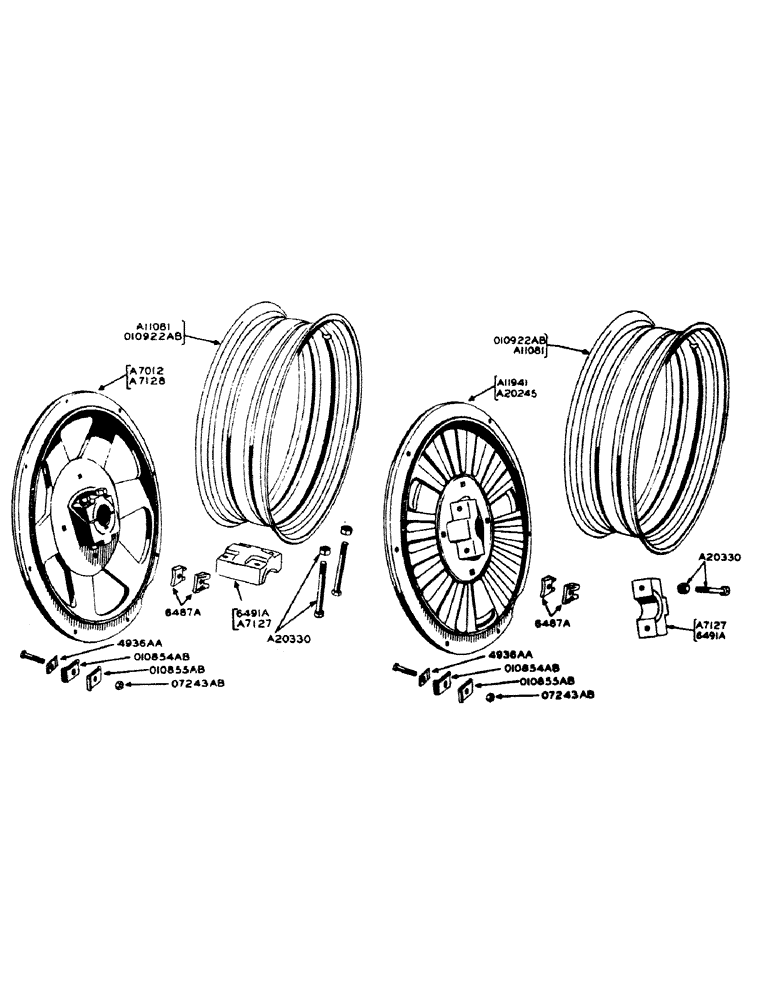

Схема запчастей Case IH 700 - (129) - PNEUMATIC REAR WHEEL, FOR GENERAL PURPOSE AND HIGH CLEARANCE TRACTORS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A7012

WHEEL, rear, with 649A cap and 4 - A20330 bolts, nuts and lockwasher (for general purpose tractors with 13-38 or 15.5-38 tires) (std. axle) (700 only)

2шт.

A7126

WHEEL, rear, 108" axle (use A7128) (700 tractors)

1шт.

A7127

CAP

rear wheel hub (108" axle)

2шт.

A7128

WHEEL, rear, with A7127 cap and 4 - A20330 bolts with hex, nuts and lockwashers (for 108" axle) (13-38 tires) (700 only)

2шт.

A8696

WRENCH, socket, rear wheel hub and rim clamp

1шт.

A11081

RIM

W14-38 double bevel, for 15.5-38 tires

2шт.

A11569

WHEEL, rear (use A11941)

1шт.

A11941

WHEEL, rear, with 649A cap and 4 - A20330 bolts, nuts and lockwasher (for general purpose tractors with 13-38, 13.6-38 or 15.5-38 ply tires) (800 only)

2шт.

A20244

WHEEL, rear (use A20245) (800 tractor)

1шт.

A20245

WHEEL, rear w/A7127 cap and 4 - A20330 bolts w/nuts and lockwashers (for general purpose tractors w/13-38, 13.6-38 or 15.5-38 tirees for 108" axle)

1шт.

A20330

KIT

BOLT, rear wheel hub (includes nut and lockwasher)

8шт.

NSS

NOT SOLD SEPARAT

7/8" N.F. hex nut

8шт.

NSS

NOT SOLD SEPARAT

7/8" std. lockwasher

8шт.

6487A

X

CLAMP, rim drive

8шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" N.C. hex bolt

4шт.

6490A

WHEEL, rear (use A7012)

1шт.

6491A

CAP, rear wheel hub (for all but 108" axle)

2шт.

4936AA

LUG, locking, rim clamp bolt

12шт.

O7243AB

X

NUT, rear wheel rim

16шт.

O10854AB

X

CLAMP, rim mounting, male

12шт.

NSS

NOT SOLD SEPARAT

5/8" x 3" N.C. hex bolt

12шт.

O10855AB

X

CLAMP, rim mounting, female

12шт.

O10922AB

RIM, W12-38 double bevel drop center, for 13-38 tires

2шт.

A7017

BRACKET

WEIGHTS, set of (2) for 6490A rear wheel (consists of 2 - 6492A weights and 8 - 5/8" x 3-1/2" N.C. carr. bolts w/hex nuts, lockwashers and plain washers) (machinery item), for General Purpose tractors

1шт.

6492A

WEIGHT, for 6490A rear wheel (see A7017), for General Purpose tractors

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 3-1/2" N.C. carr. bolt w/hex nut, lockwasher and plate washer, rear wheel weights for General Purpose tractors

8шт.

Выбрано товаров: 26
