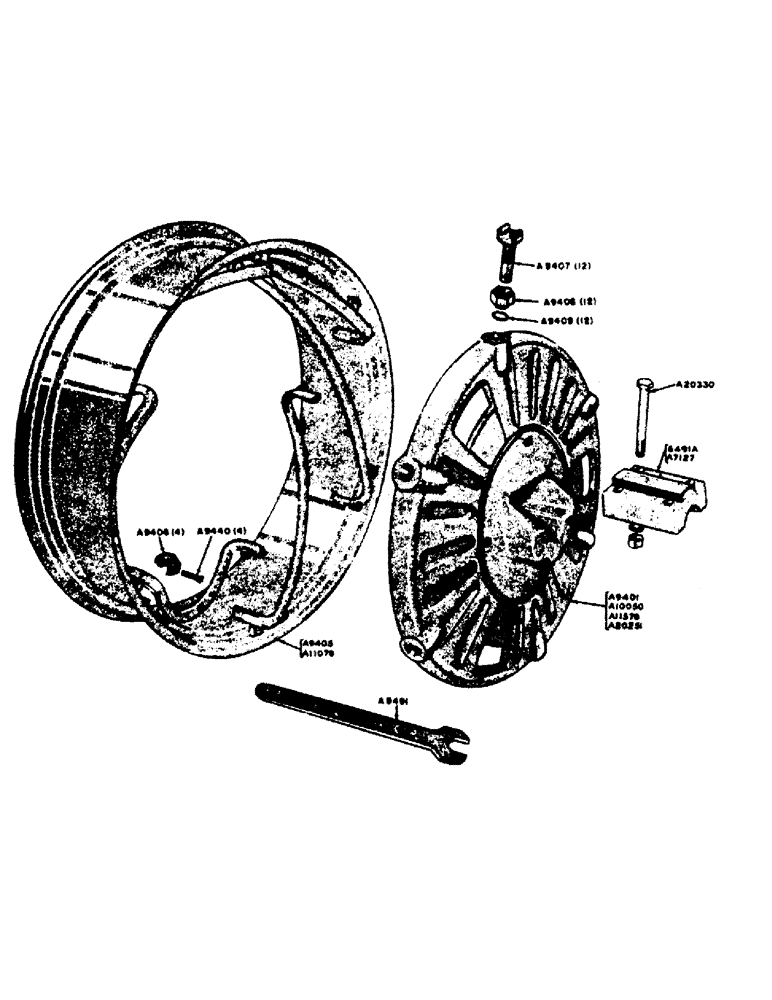

Запчасти Case IH 700 (128) - POWER ADJUSTABLE TREAD REAR WHEELS, SPECIAL FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

A7127

CAP

rear wheel, (for A10050 and A20251 wheels)

2шт.

A9401

WHEEL, rear, with 6491A cap and 4 - A20330 bolts w/nuts and lockwashers (for standard rear axle) (see A10050) (700 tractors)

2шт.

A9404

WHEEL, rear (use A9401), (700 tractors)

1шт.

A9405

RIM, rear wheel, 13-38 and 13.6-38 6 ply tractor tires

2шт.

A9406

STOP

LUG, stop, rear wheel rim

4шт.

A9407

X

SCREW, jack, rear wheel

12шт.

A9408

NUT

rear wheel jack screw

12шт.

A9409

X

"O" RING, jack screw retaining

12шт.

A9440

STOP

SCREW, rear wheel rim stop

4шт.

A9491

WRENCH, rear wheel jack screw

1шт.

A10046

WHEEL, rear (use A10050) (700 tractors)

1шт.

A10050

WHEEL, rear, with A7127 cap and 4 - A20330 bolts w/nut and lockwasher (for 108" axle) (see A9401) (700 tractors)

2шт.

A11076

DISC, WHEEL

RIM, rear wheel, 14"

2шт.

A11575

WHEEL, rear (use a11576) (800 tractors)

1шт.

A11576

WHEEL, rear, with A7127 cap and 4 - A20330 bolts with nuts and lockwashers (for 13-38 and 13.6-38 tires) (800 tractors) (for std. axle)

2шт.

A20250

WHEEL, rear (use A20251)

1шт.

A20251

WHEEL, rear w/A7127 cap and 4 - A20330 bolts with nuts and lockwashers (for 13-38 and 13-6-38 tires) (800 tractors) (for 108" axle)

2шт.

A20330

KIT

BOLT, rear wheel hub (includes nut and lockwasher)

8шт.

NSS

NOT SOLD SEPARAT

7/8" N.F. hex nut

8шт.

NSS

NOT SOLD SEPARAT

7/8" std. lockwasher

8шт.

6491A

CAP, rear wheel hub (for A9401 and A11576 wheels)

2шт.

A9410

WEIGHT, rear wheel, for power adjustable tread

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 3-1/2" N.C. carr. bolts w/hex nuts, lockwashers and plain washer, weight for power adjustable tread wheel

8шт.

A9411M

WEIGHTS, set of 2, for A9404 or A10046 rear wheel (consists of 2 A9410 weights with 8 - 5/8" x 3-1/2" N.C. carr. bolts, hex. nuts, lockwashers and plain washers) (machy. item), power adjustable tread

1шт.
