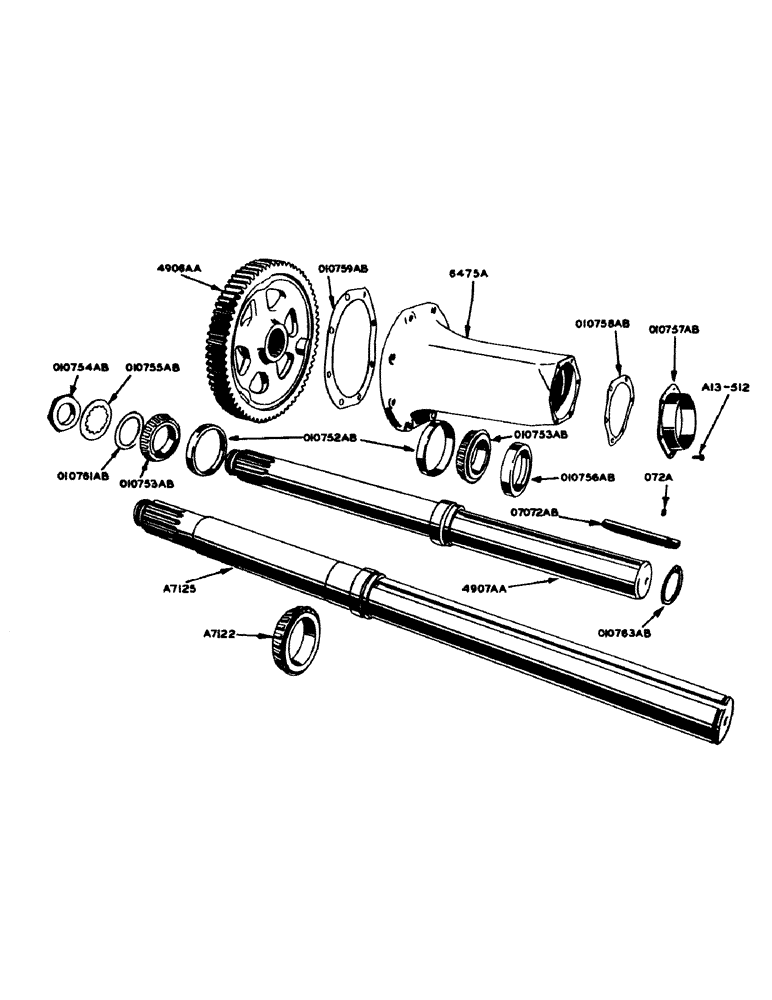

Запчасти Case IH 700 (127) - REAR AXLE, FOR GENERAL PURPOSE TRACTORS (06) - POWER TRAIN

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(for 010757AB) Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

NSS

NOT SOLD SEPARAT

5/16" std. lockwasher

12шт.

A7122

ROLLER BEARING,3.3125" ID x 1.172"

CONE, rear axle outer bearing (for 52" to 108" tread) (Timken no. 498) (see 010753AB)

2шт.

A7125

SPARE PART

SHAFT, rear axle, with collar and spacer (for 52" to 108" tread) (see 4907AA)

2шт.

6475A

X

HOUSING, rear axle

2шт.

NSS

NOT SOLD SEPARAT

5/8" x 2" N.C. hex bolt w/lockwasher

12шт.

NSS

NOT SOLD SEPARAT

5/8" 2-1/4" N.C. hex bolt w/lockwasher

4шт.

6476A

HUB (use 4906AA)

1шт.

O72A

DOWEL PIN, rear wheel to axle key

2шт.

4906AA

GEAR, rear axle, with hub

2шт.

4907AA

SHAFT, rear axle, with collar and spacer (48" to 88" trd.) (see A7125)

2шт.

O7072AB

KEY, rear, Serial Range: wheel-axle

2шт.

O10752AB

X

CUP, rear axle shaft bearing (Timken no. 492-A)

4шт.

O10753AB

X

CONE, rear axle shaft bearing (Timken no. 495-AS)

4шт.

O10753AB

X

CONE, rear axle inner bearing (for 52" to 108" tread) (Timken no. 495-AS) (see A7122)

2шт.

O10754AB

LOCK NUT, rear axle, for ring gear hub

2шт.

O10755AB

X

LOCKWASHER, rear axle, for ring gear hub

2шт.

O10756AB

X

OIL SEAL, rear axle

2шт.

O10757AB

X

GUARD, dust, rear axle

2шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" N.C. hex bolt w/lockwasher

12шт.

O10758AB

X

GASKET, rear axle dust guard

2шт.

O10759AB

X

GASKET, rear axle housing

2шт.

O10761AB

WASHER, thrust, rear axle gear

2шт.

O10763AB

X

SNAP RING, rear axle shaft (48" to 88" tread)

2шт.
