Запчасти Case IH 700 (123) - DIFFERENTIAL SHAFT (06) - POWER TRAIN

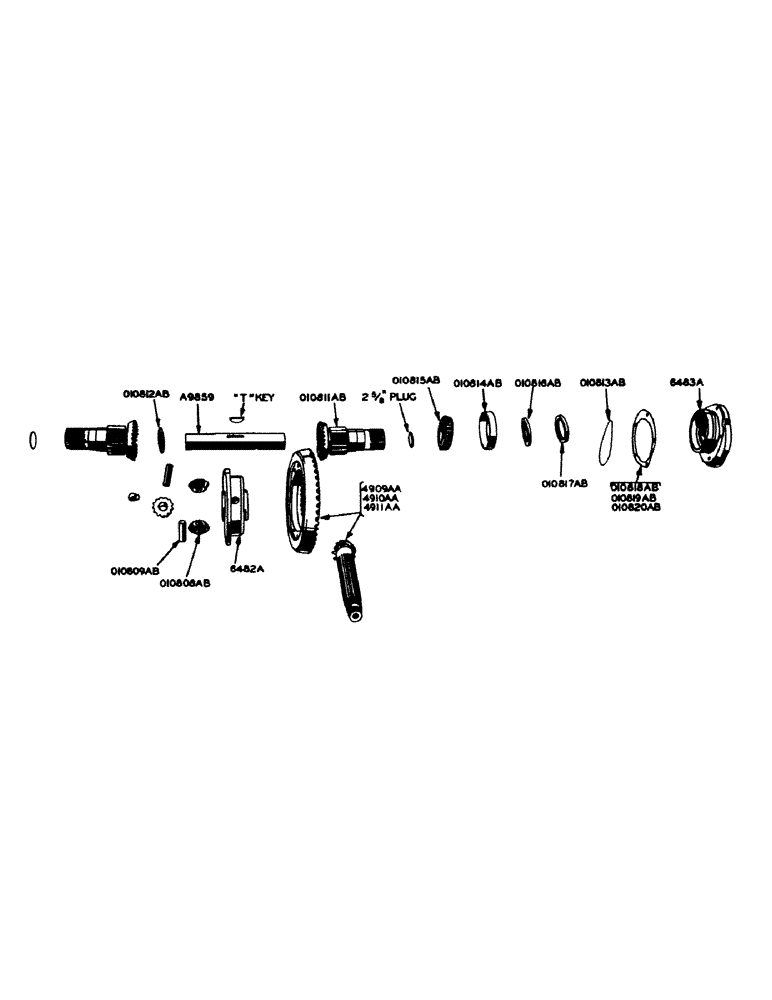

Схема запчастей Case IH 700 - (123) - DIFFERENTIAL SHAFT (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

A8341

THIMBLE, to assembly 010816AB and 010817AB oil seal on differential gear and sleeve

1шт.

A8410

CARRIER, differential bearing and brake pad (for Orchard models) (see 6483A)

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" N.C. hex bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/8" hex socket hd. pipe plug

2шт.

A9288

OIL SEAL, differential implement drive shaft (for high clearance tractors)

2шт.

A9292

GEAR AND SLEEVE, differential, with differential implement drive shaft (for high clearance models) (see 010811AB)

2шт.

NSS

NOT SOLD SEPARAT

2-5/8" welch plug

2шт.

A9859

SHAFT, differential

1шт.

NSS

NOT SOLD SEPARAT

"T" Woodruff key

1шт.

6482A

X

WHEEL, differential center

1шт.

NSS

NOT SOLD SEPARAT

"T" Woodruff key

1шт.

6483A

CARRIER, differential bearing and brake pad (for all but orchard models) (see A8410)

2шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/4" N.C. hex bolt w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

1/8" hex socket hd. pipe plug

2шт.

O10808AB

PINION, differential

3шт.

O10809AB

PIN, differential pinion

3шт.

O10811AB

X

GEAR AND SLEEVE, differential (for all but high clearance models) (see A9292)

2шт.

NSS

NOT SOLD SEPARAT

2-5/8" welch plug

2шт.

O10812AB

X

WASHER, thrust, differential gear

1шт.

O10813AB

X

"O" RING, differential shaft bearing carrier

2шт.

O10814AB

X

CUP, differential bearing (Timken no. 592-A)

2шт.

O10815AB

X

CONE, differential bearing (Timken no. 596)

2шт.

O10816AB

OIL SEAL, differential bearing, inner (synthethic rubber)

2шт.

O10817AB

X

OIL SEAL, differential bearing, outer (leather)

2шт.

O10818AB

X

SHIM, differential shaft bearing carrier (.003" thick)

1шт.

O10819AB

X

SHIM, differential shaft bearing carrier (.005" thick)

1шт.

O10820AB

SHIM, differential shaft bearing carrier (.010" thick)

1шт.

Выбрано товаров: 27
