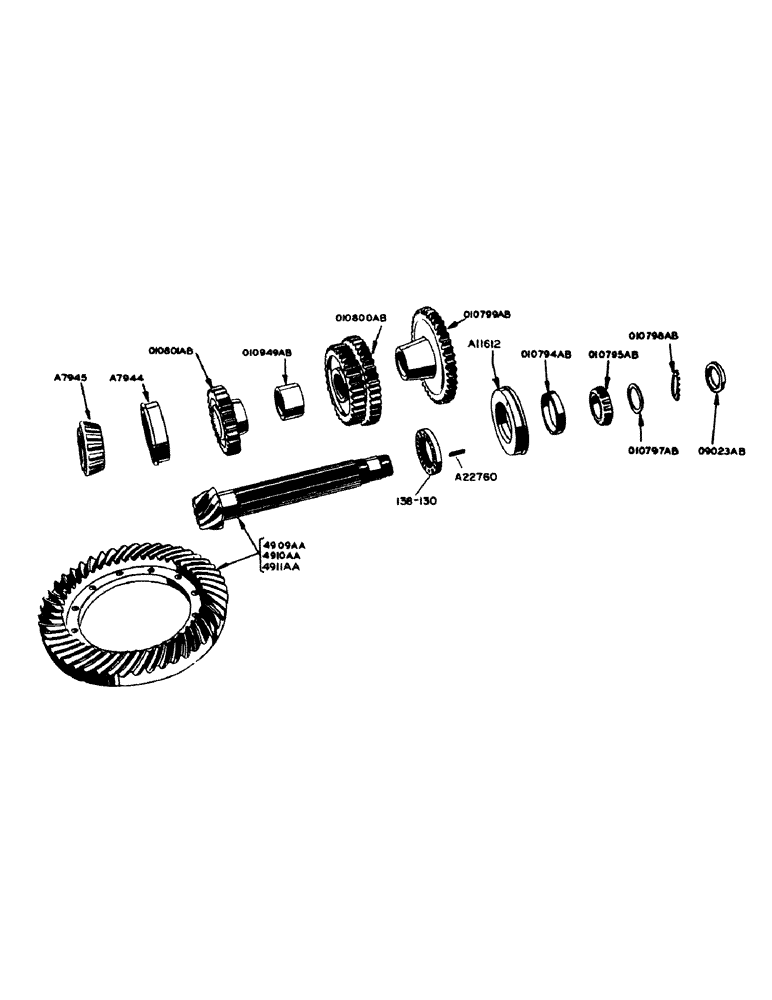

Запчасти Case IH 700 (121) - COUNTERSHAFT AND DIFFERENTIAL RING GEAR (06) - POWER TRAIN

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , For A22760 1/4" x 3/4", Slotted

1шт.

A7944

CUP, bearing, countershaft, rear (Timken #65500B)

1шт.

A7945

CONE

bearing, countershaft, rear (Timken #65225)

1шт.

A8345

WRENCH, spanner socket, for 09023AB and 010803AB lock nuts and countershaft

1шт.

A11612

CARRIER, bearing, countershaft front

1шт.

A22760

NUT

LOCKNUT, countershaft gear

1шт.

4909AA

COUNTERSHAFT, with spiral bevel pinion and differential spiral bevel ring gear (9 and 48 teeth) (for general purpose tractors)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/4" N.F. hex bolt w/hex nut and lockwasher

12шт.

4910AA

COUNTERSHAFT, with spiral bevel pinion and differential spiral bevel ring gear (10 and 48 teeth) (for standard 4-wheel tractor)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/4" N.F. hex bolt w/hex nut and lockwasher

12шт.

4911AA

COUNTERSHAFT, with spiral bevel pinion and differential spiral bevel ring gear (11 and 48 teeth) (for Orchard and high clearance tractors)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 2-1/4" N.F. hex bolt w/hex nut and lockwasher

12шт.

O9023AB

X

LOCKNUT, on countershaft, for front bearing

1шт.

O10794AB

X

CUP, countershaft front bearing (Timken #362-A)

1шт.

O10795AB

X

CONE, countershaft front bearing (Timken #369-S)

1шт.

O10797AB

X

LIP WASHER, countershaft front bearing

1шт.

O10798AB

X

LOCKWASHER, countershaft front bearing

1шт.

O10799AB

GEAR, 1st and 5th speeds

1шт.

O10800AB

GEAR, 2nd and 6th, 3rd and 7th speeds

1шт.

O10801AB

GEAR, 4th and 8th speeds

1шт.

O10949AB

SPACER, countershaft gear

1шт.
