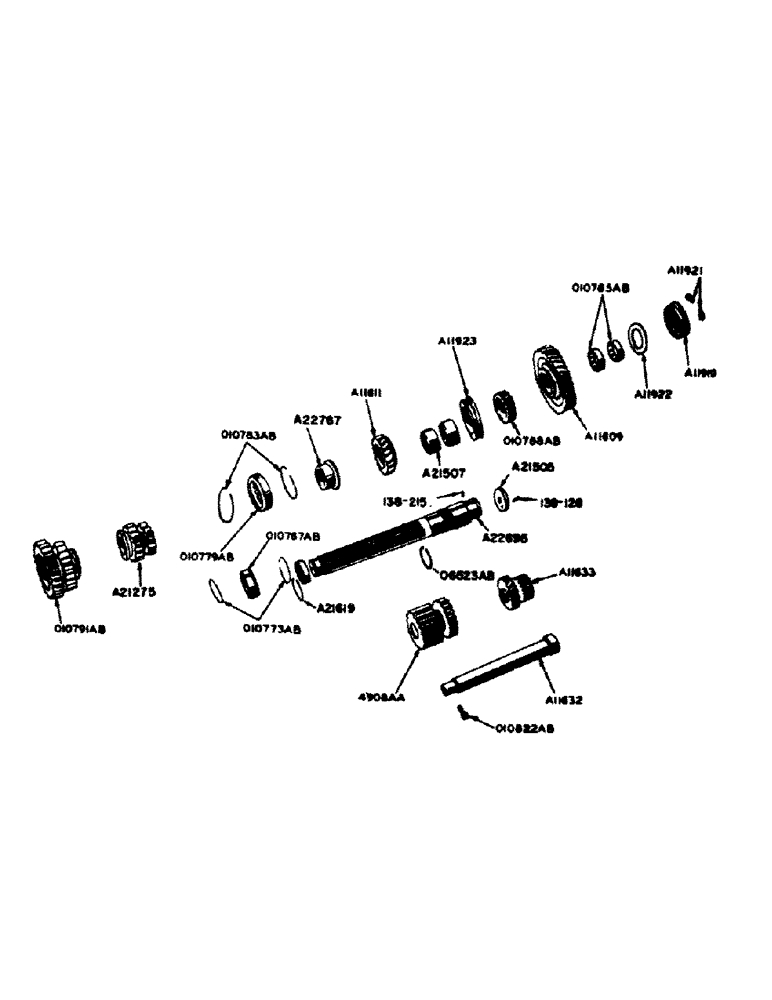

Запчасти Case IH 700 (120) - SLIDING GEAR, REVERSE IDLER, AND OIL GEAR SHAFTS (06) - POWER TRAIN

138-128

LOCK PIN,1/4" x 5/8", Slotted

PIN, , on A11918 shaft 1/4" x 5/8", Slotted

1шт.

138-215

LOCK PIN,3/16" x 3/8", Slotted

PIN, (on A11918 shaft) 3/16" x 3/8", Slotted

1шт.

A8347

TOOL

ARBOR, pressing 010787AB bearing into high range gear

1шт.

A8356

ARBOR, for pressing in 010787AB bearing into high range gear

1шт.

A11609

GEAR, low range helical driven

1шт.

A11611

GEAR, high range helical driven

1шт.

A11632

X

SHAFT, reverse idler

1шт.

A11633

X

GEAR, oil slinger

1шт.

A11918

SHAFT, sliding gear (use A22717 kit)

1шт.

A11919

BEARING, BALL,1.5748" ID x 3.5433" OD x 0.9055"

BEARING, sliding gear shaft, front (ND-47608)

1шт.

A11920

PLATE, bearing retainer, sliding gear shaft front (for A11918 shaft) (see A21505)

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1" N.F. hex bolt

1шт.

NSS

NOT SOLD SEPARAT

1/2" Shakeproof int. lockwasher #1224-00

1шт.

A11921

CLAMP, sliding gear shaft front bearing

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" N.C. hex bolt

2шт.

NSS

NOT SOLD SEPARAT

3/8" Shakeproof int. lockwasher #1220-00

2шт.

A11922

WASHER

thrust, low range driven gear

1шт.

A11923

SLEEVE

range clutch

1шт.

A21275

GEAR, sliding, 1st and 5th, 2nd and 6th speeds

1шт.

A21505

PLATE

bearing retainer, sliding gear shaft front (A22695 shaft) (see A11920)

1шт.

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING, needle, high range gear (A22695 shaft) (see 010787AB)

2шт.

A21618

RACE

sliding gear shaft rear bearing

1шт.

A21619

CIRCLIP

SNAP RING, sliding gear shaft rear bearing race retaining

1шт.

49339D

BEARING ASSY,35mm ID x 72mm OD x 16.77mm W

1шт.

Located just to the right of snap ring above

1шт.

A22695

SHAFT, sliding gear, with collar

1шт.

A22717

KIT, sliding gear shaft (consists of (1) A21505, (2) A21507, (1) A22695, (1) A22767, (1) 06523AB, (1) 010779AB, (2) 010783AB, (1) 138-128 and (1) 138-215

1шт.

A22767

BEARING

RACE, inner, sliding gear shaft center bearing (A22695 shaft) (see 010780AB)

1шт.

A23339

X

GEAR, reverse idler, with bushing

1шт.

O6523AB

X

SNAP RING, sliding gear shaft

1шт.

O10767AB

X

BEARING, sliding gear shaft, rear (hyatt #1207-TAS)

1шт.

O10773AB

X

SNAP RING, sliding gear shaft rear bearing

2шт.

O10779AB

X

BEARING, sliding gear shaft, center (hyatt #1210-TBS)

1шт.

O10780AB

X

RACE, inner, sliding gear shaft center bearing (use w/A11918 shaft) (see A22767)

1шт.

O10783AB

X

SNAP RING, sliding gear shaft center bearing

2шт.

O10785AB

X

BEARING, needle, low range gear (Torrington #B3612)

2шт.

O10787AB

X

BEARING, needle, high range gear (Torrington #BH-3324-OH) (A11918 shaft) (see A21507)

1шт.

O10788AB

X

COLLAR, range clutch sliding sleeve spline

1шт.

O10791AB

GEAR, sliding, 3rd and 7th, 4th and 8th speeds

1шт.

O10822AB

LOCK SCREW, reverse idler and oil gear shaft

1шт.
