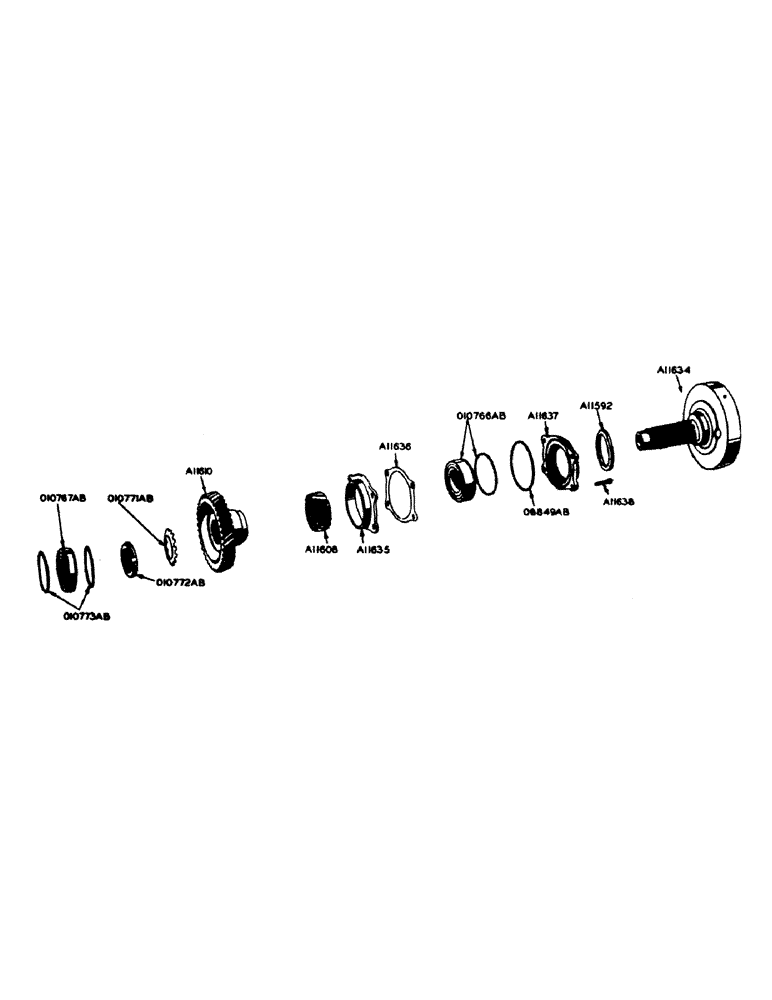

Запчасти Case IH 700 (119) - RANGE DRIVE SHAFT CLUTCH DRUM, "800" SERIES (06) - POWER TRAIN

A8344

WRENCH, spanner (for 010772AB lock nut)

1шт.

A11592

OIL SEAL

clutch drum and range shaft

1шт.

A11608

GEAR, low range helical drive

1шт.

A11610

GEAR, high range helical drive

1шт.

A11634

SHAFT, range and clutch drum

1шт.

A11635

CARRIER, range shaft front bearing

1шт.

A11636

GASKET

range shaft front bearing carrier

1шт.

A11637

CARRIER, range shaft oil seal

1шт.

REFER TO CARRIER A11637, OIL SEAL NOT PART OF CARRIER PART IS A11592

1шт.

A11638

BOLT, clutch drum and range shaft carrier

4шт.

O8849AB

X

"O" RING, range shaft oil seal carrier

1шт.

O10766AB

X

BEARING, range drive shaft, front (with snap ring) (new departure no. 45510)

1шт.

O10767AB

X

BEARING, range drive shaft, rear (hyatt #1207-TAS)

1шт.

O10771AB

X

LOCKWASHER, range shaft gear

1шт.

O10772AB

X

LOCK NUT, range shaft gear

1шт.

O10773AB

X

SNAP RING, range shaft rear bearing

2шт.
